Запчасти Case IH 4000 (08-16) - ELECTRICAL, ALTERNATOR AND MOUNTING C-232 GAS ENGINE, FOR USE ON 4000 WINDROWERS PRIOR TO S.N. 2701 (06) - ELECTRICAL

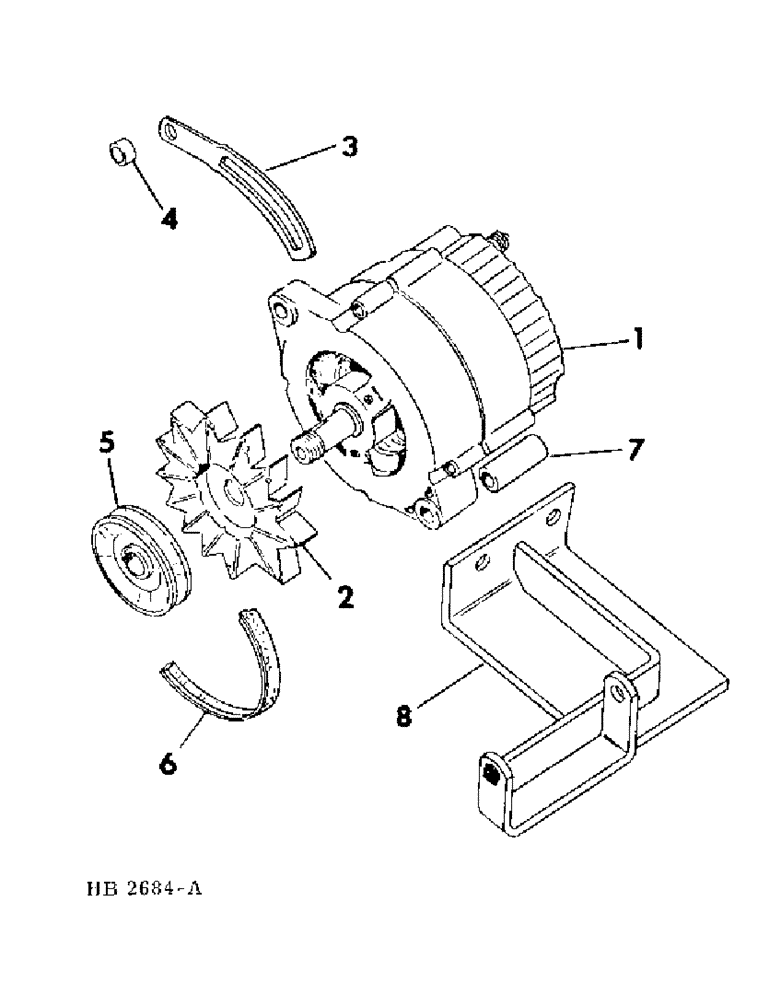

Схема запчастей Case IH 4000 - (08-16) - ELECTRICAL, ALTERNATOR AND MOUNTING C-232 GAS ENGINE, FOR USE ON 4000 WINDROWERS PRIOR TO S.N. 2701 (06) - ELECTRICAL

Артикул

Название

Примечание

Количество

1

1100583

GENERATOR

ALTERNATOR ASSY, AC 12 volt 42 amp 562395C91, For service order 1-1102936 alternator assy, For service parts, Serial Range: refer-alternator

1шт.

1

1102920

GENERATOR

ALTERNATOR ASSY, AC 12 volt 42 amp 130967C91, For service order 1-102936 alternator assy, For service parts, Serial Range: refer-alternator

1шт.

1

1102921

ALTERNATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 130968C91, For service order 1-1102936 alternator assy, For service parts, Serial Range: refer-alternator

1шт.

1

1102936

GENERATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 500163C91, For service order 1-1103174 alternator assy, For service parts, Serial Range: refer-alternator

1шт.

1

1103174

GENERATOR

ALTERNATOR ASSY, AC 12V 61 amp 571231C91, For service parts refer to alternator assy

1шт.

1

87297246

REMAN-ALTERNATOR

Reman For New P/N 1103174

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 63 AMP Alternator

1шт.

1

103801A1R

REMAN-ALTERNATOR

Reman For New P/N 1103174

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New P/N 1103174

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

571690C1

NUT, 6M x 1 hex

1шт.

121743

CHAIN,#12 - 24

#12-24 hex

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

2

800612

FAN

FAN, alternator pulley

1шт.

3

829628C1

STRAP

STRAP, alternator adjusting

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

BOLT, 5/16-18 x 1 hex-hd

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 hex hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

635305R1

SPARE PART WASHER, .390 x .880 x .250

1шт.

4

SA2344

SPACER,3/8" Pipe x 7/16"

SPACER, strap mtg

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

1946716

PULLEY

PULLEY, alternator 378349R1

1шт.

6

403348R1

V-BELT,0.50" W x 46.00" L

Alternator pulley

1шт.

7

K11064

SPACER,3/8" Pipe x 1 1/4"

SPACER, alternator mtg

1шт.

8

823176C1

SUPPORT

SUPPORT ASSY, alternator, For service order 1-832323C1 support assy and 1-27350R1 bolt

1шт.

8

832323C1

SUPPORT

SUPPORT ASSY, alternator

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

BOLT, 3/8-16 x 4-1/2 hex-hd

1шт.

27350R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

BOLT, 3/8-16 x 4-1/2 crg

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 hex-hd, Not for use with 1103174

2шт.

931405R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, M8 x 30 MM hex-hd, Not for use with 1103174

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

WASHER, .406 x 1.000 x .105

2шт.

619856R1

WASHER

WASHER, .406 x 1.000 x .056

2шт.

Выбрано товаров: 40
