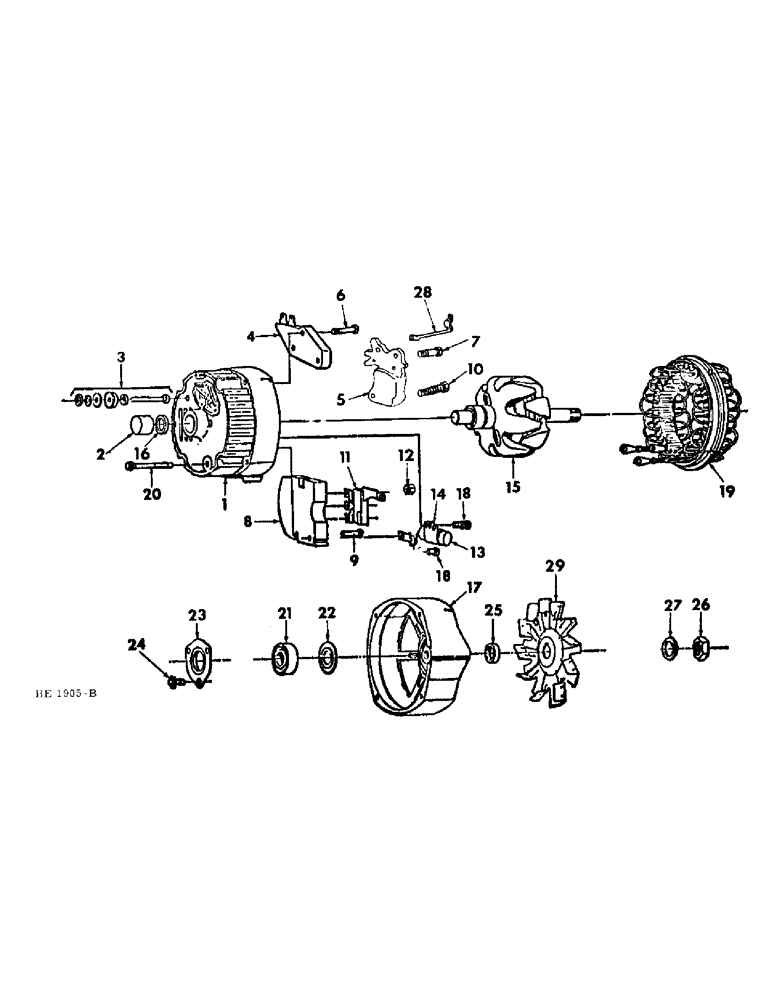

Запчасти Case IH 4000 (08-15) - ELECTRICAL, ALTERNATOR, DELCO REMY (06) - ELECTRICAL

1102920

GENERATOR

ALTERNATOR ASSY, AC 12 volt 42 amp 130967C91

1шт.

1102921

ALTERNATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 130968C91

1шт.

1102936

GENERATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 500163C91, Includes all parts listed unless otherwise noted

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 Amp Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number 12 Volt, 63 Amp Alternator

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number

1шт.

87297230

REMAN-ALTERNATOR

Remanufactured Bosch 12 Volt, 65 Amp Alternator

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 Volt, 65 Amp Alternator

1шт.

1

1894570

FRAME

FRAME ASSY, stator/roter end, Includes item 2 and 16

1шт.

2

9436831

BEARING

BEARING, S. R. E.

1шт.

3

1846900

PACKAGE

PACKAGE, battery terminal

1шт.

4

1116392

REGULATOR

REGULATOR

1шт.

1894586

SCREW

SCREW ASSY, regulator attach

1шт.

5

1894559

HOLDER

HOLDER ASSY, brush and brush

1шт.

6

1894585

SCREW

SPARE PART SCREW, regulator attach

1шт.

7

1876681

SCREW

SCREW, brush holder insulating

2шт.

8

1891055

SUPPORT

SUPPORT, rectifier

1шт.

9

1876668

SCREW

SCREW, support attach

1шт.

10

1974020

SCREW

SCREW, brush holder pivot

1шт.

11

1971528

RECTIFIER

DIODE ASSY

1шт.

12

453434

NUT

NUT, rectifier bridge

1шт.

13

1971411

CAPACITOR

CAPACITOR

1шт.

14

1869573

BRACKET

BRACKET, capacitor

1шт.

15

1876163

ROTOR

ROTOR ASSY

1шт.

16

1961323

SEAL

SEAL, S. R. E.

1шт.

17

1976137

NO LONGER SERVICED

FRAME ASSY, drive end, Replaces 1970525

1шт.

18

1851612

SCREW

SCREW W/L.W., capacitor brkt and lead

2шт.

19

1894562

STATOR

STATOR ASSY, For use with 1102920 alternator assy

1шт.

19

1894562

STATOR

STATOR ASSY, For use with 1102921 and 1102936 alternator assy

1шт.

20

1956975

BOLT

BOLT, thru

4шт.

21

539103R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, D. E.

1шт.

22

800832

WASHER

SLINGER, grease

1шт.

23

1971993

PLATE

RETAINER, bearing

1шт.

24

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW, retainer

3шт.

25

1959991

COLLAR

COLLAR, outside brg

1шт.

25

A49733

COLLAR

COLLAR, outside brg in dia

1шт.

26

1915172

NUT

NUT, D. E. shaft

1шт.

27

1941978

WASHER

WASHER, D. E. shaft lock

1шт.

28

1894568

ELEC CONNECTOR

PACKAGE, relay terminal

1шт.

29

800612

FAN

FAN, alternator - Delco Remy, Not part of alternator assy

1шт.
