Запчасти Case IH 4000 (08-14) - ELECTRICAL, ALTERNATOR, DELCO REMY (06) - ELECTRICAL

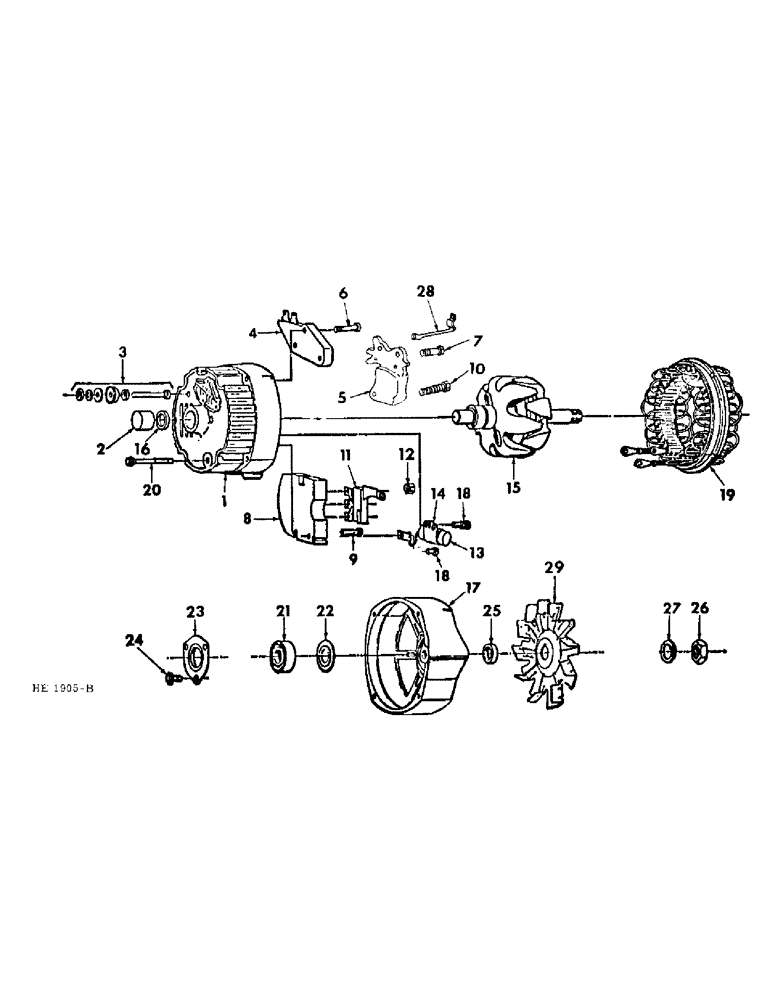

Схема запчастей Case IH 4000 - (08-14) - ELECTRICAL, ALTERNATOR, DELCO REMY (06) - ELECTRICAL

Артикул

Название

Примечание

Количество

1103174

GENERATOR

ALTERNATOR ASSY, AC 571231C91, Includes all parts listed unless otherwise noted

1шт.

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

AC187873

CORE-ALTERNATOR

Return Part Number

1шт.

87297246

REMAN-ALTERNATOR

Reman for New PN 1103174

1шт.

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 Amp Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Part Number 12 Volt, 63 Amp Alternator

1шт.

103801A1R

REMAN-ALTERNATOR

Reman for New PN 1103174

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number

1шт.

87297230

REMAN-ALTERNATOR

Remanufactured Bosch 12 Volt, 65 Amp Alternator

1шт.

87297231

CORE-ALTERNATOR

Return Part Number, Bosch 12 Volt, 65 Amp Alternator

1шт.

1

1975718

FRAME

FRAME ASSY, stator/rotor end, Includes 1-1974862 bearing

1шт.

2

1974862

BUSHING

BEARING, S. R. E.

1шт.

3

1975471

PACKAGE

PACKAGE, battery terminal

1шт.

4

1116387

VOLTAGE REGULATOR

REGULATOR

1шт.

5

1894559

HOLDER

BRUSH AND HOLDER ASSY

1шт.

6

1894586

SCREW

SCREW, reg attach ground

1шт.

7

1876681

SCREW

SCREW, brush holder insulating

2шт.

8

1891055

SUPPORT

SUPPORT, rectifier

1шт.

9

1876668

SCREW

SCREW, rectifier support

1шт.

10

1974020

SCREW

SCREW, brush holder pivot

1шт.

11

1971411

CAPACITOR

CAPACITOR

1шт.

12

120622

NUT,#8-32

NUT, , Rectifier bridge #8-32

3шт.

13

1971411

CAPACITOR

CAPACITOR

1шт.

14

1869573

BRACKET

BRACKET, capacitor

1шт.

15

1876163

ROTOR

ROTOR ASSY

1шт.

16

1961323

SEAL

SEAL OIL

1шт.

17

1976808

FRAME

FRAME ASSY, drive end

1шт.

18

1851612

SCREW

SCREW, capacitor bracket

2шт.

19

1894562

STATOR

STATOR ASSY, 61 amp

1шт.

20

1956975

BOLT

BOLT, thru

4шт.

21

1974861

BALL BEARING

BEARING, D. E.

1шт.

22

800832

WASHER

SLINGER, grease

1шт.

23

1971993

PLATE

RETAINER, bearing

1шт.

24

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW, retainer

3шт.

25

A49733

COLLAR

COLLAR, outside bearing

1шт.

26

1915172

NUT

NUT, D. E. shaft

1шт.

27

1941978

WASHER

WASHER, D. E. shaft lock

1шт.

28

1894568

ELEC CONNECTOR

PACKAGE, relay terminal

1шт.

29

800612

FAN

FAN, alternator - Delco Remy, Not part of alternator assy

1шт.

Выбрано товаров: 43
