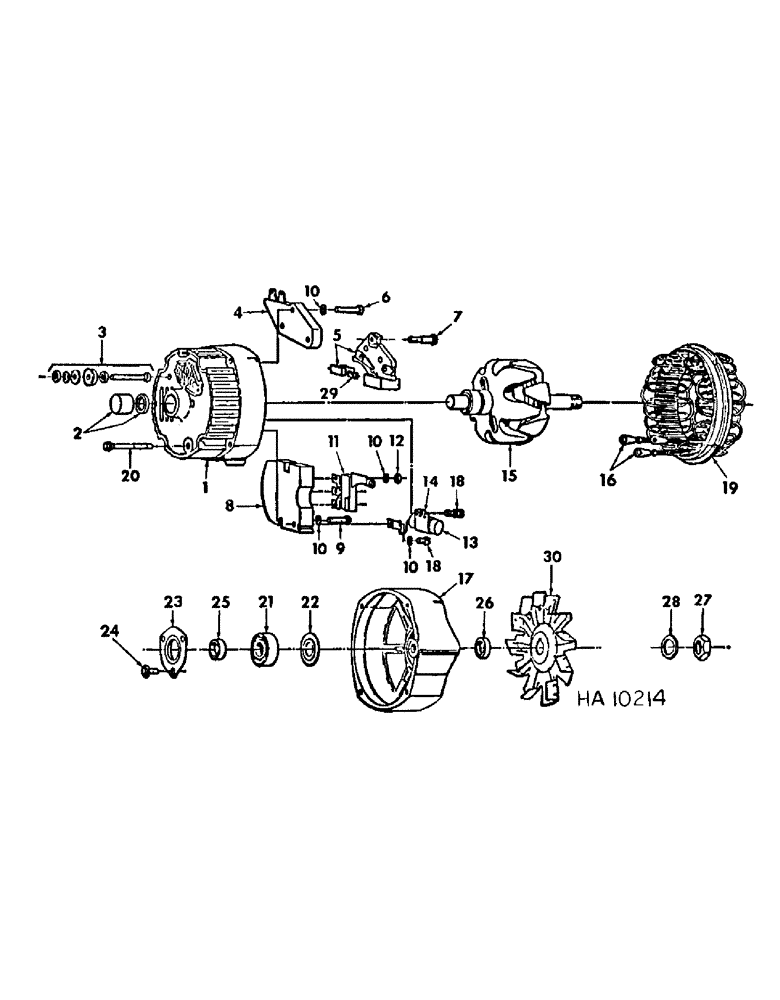

Запчасти Case IH 4000 (08-13) - ELECTRICAL, ALTERNATOR, DELCO REMY (06) - ELECTRICAL

1100583

GENERATOR

ALTERNATOR ASSY, AC 562395C91 42 amp

1шт.

1100585

ALTERNATOR

ALTERNATOR ASSY, AC 66585C91 61 amp, Includes all parts listed unless otherwise noted

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 Amp Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number 12 Volt, 63 Amp Alternator

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number

1шт.

87297230

REMAN-ALTERNATOR

Remanufactured Bosch 12 Volt, 65 Amp Alternator

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 Volt, 65 Amp Alternator

1шт.

1

1852101

FRAME

FRAME ASSY, stator/rotor end, Includes 1-423649C91 bearing

1шт.

2

423649C91

BALL BEARING

BEARING, S. R. E.

1шт.

3

1846900

PACKAGE

PACKAGE, battery terminal

1шт.

3

1851714

KIT

PACKAGE, relay terminal

1шт.

4

1116387

VOLTAGE REGULATOR

REGULATOR

1шт.

5

1876873

HOLDER

BRUSH AND HOLDER ASSY, Includes 1-1964117 spring

1шт.

6

1971519

SCREW

SCREW, brush holder ground

1шт.

7

1846864

SCREW

SCREW, brush holder insulating

1шт.

8

1875627

HOLDER

BRIDGE, rectifier

1шт.

9

1970145

SCREW

SCREW, bridge attaching

1шт.

10

1847933

WASHER

WASHER, lock

4шт.

11

1971528

RECTIFIER

DIODE ASSY

1шт.

12

453434

NUT

NUT, rectifier bridge

3шт.

13

801824

CAPACITOR

CAPACITOR

1шт.

14

1869573

BRACKET

BRACKET, capacitor

1шт.

15

1876470

ROTOR

ROTOR ASSY, For service order 1-1891598 rotor assy

1шт.

15

1891598

ROTOR

ROTOR ASSY

1шт.

16

1846548

CLIP

CLIP, stator lead terminal

3шт.

17

1976173

FRAME ASSY, drive end, Replaces 1970525

1шт.

18

1851612

SCREW

SCREW, capacitor bracket

2шт.

19

1971986

STATOR

STATOR ASSY, Includes 3-1846548 clip, For use with 1100583

1шт.

19

1971639

STARTER MOTOR

STATOR ASSY, Includes 3-1846548 clip, For use with 1100585

1шт.

20

1956975

BOLT

BOLT, thru

4шт.

21

539103R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, drive end ball

1шт.

22

800832

WASHER

SLINGER, grease

1шт.

23

1971993

PLATE

RETAINER, bearing

1шт.

24

1965104

HOSE

SCREW, retainer

3шт.

25

1963139

COLLAR CLAMP

COLLAR, inside bearing, For use with 1876470 rotor assy, For use with 1100583

1шт.

26

1959991

COLLAR

COLLAR, outside bearing .875 in dia

1шт.

26

A49733

COLLAR

COLLAR, outside 1 in dia

1шт.

27

1915172

NUT

NUT, D. E. shaft

1шт.

28

1941978

WASHER

WASHER, D. E. shaft

1шт.

29

1964117

SPRING

SPRING, brush

1шт.

30

800612

FAN

FAN, alternator - Delco Remy, Not part of alternator assy

1шт.
