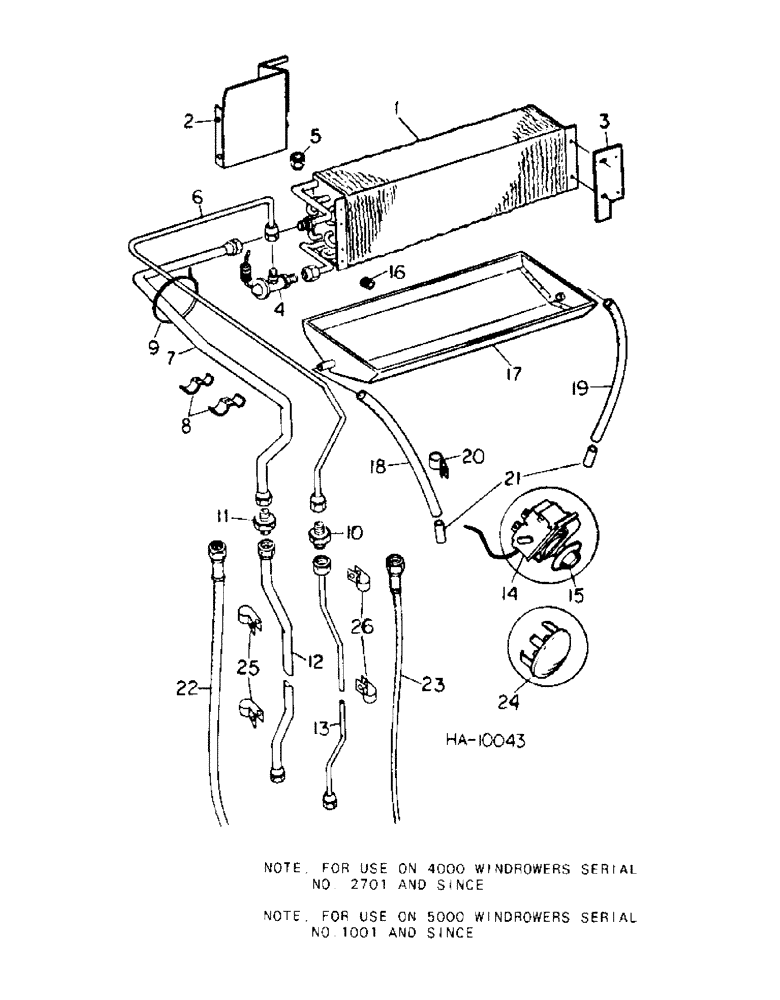

Запчасти Case IH 4000 (13-24) - SUPERSTRUCTURE, OPERATORS CAB EVAPORATOR (05) - SUPERSTRUCTURE

1

173915C1

CORE

COIL, evaporator

1шт.

24407R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 pan hd cr rec tapping type AB

4шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

2

175581C1

BRACKET

SUPPORT, evaporator coil LH

1шт.

3

175582C1

BRACKET

BAR, evaporator coil support RH

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

168903C1

VALVE

expansion

1шт.

5

615195C1

CAP, flared nut

1шт.

6

823305C1

TUBE

air conditioner upper dehydrator - small

1шт.

7

823306C1

TUBE

air conditioner upper suction - large

1шт.

8

823383C1

CLAMP

tube

2шт.

167263

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 pan hd cr rec tapping

2шт.

9

289862C1

CABLE TIE,3/16" x 7"

STRAP, hose tie

4шт.

10

118802

UNION,3/8" NPT x 5/8"-18, 45 Degree Fl

5/8-18 45 deg flared tube

1шт.

11

119467

HYD CONNECTOR,5/8" NPT x 7/8"-14, 45 Degree Fl

UNION, 7/8-14 45 deg flared tube

1шт.

12

823307C1

TUBE

suction cab post - large dia, For use on 4000 Windrower serial no. 2701 to 3249, For use on 5000 Windrower serial no., Serial Range: 1001-1349

1шт.

13

832308C1

TUBE, dehydrator cab post - small dia, For use on 4000 Windrower serial no. 2701 to 3249, For use on 5000 Windrower serial no., Serial Range: 1001-1349

1шт.

14

175575C1

THERMOSTAT

SWITCH, thermostat control

1шт.

109311H

JAM NUT

switch mounting

1шт.

15

823384C1

KNOB

thermostat control

1шт.

16

117736C1

GROMMET

capillary tube

1шт.

17

823298C1

PAN

evaporator drain

1шт.

27017R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW, 10-24 x 3/4 pan hd cr rec tapping type D

4шт.

19910R1

LOCK NUT

10-24 hex lock

2шт.

18

823714C1

TUBE,12.5" Length

plastic drain LH

1шт.

19

823715C1

TUBE,14.75" Length

plastic drain RH

1шт.

20

299408C1

CLAMP

tube

1шт.

27017R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW, 10-24 x 3/4 pan hd cr rec tapping type D

1шт.

21

823299C1

VALVE

ASSY, drain tube check

2шт.

22

832431C1

HOSE

126 in length suction, For use on 4000 Windrower serial no. 3250 and since, For use on 5000 Windrower serial no. 1350 and since

1шт.

23

832432C1

HOSE ASSY.

HOSE, 80.5 in length inlet, For use on 4000 Windrower serial no. 3250 and since, For use on 5000 Windrower serial no. 1350 and since, For connecting parts refer to air conditioning system

1шт.

24

142070

PLUG,13/32"

air conditioner knob hole

1шт.

25

406381C1

CLIP

CLAMP, hose

3шт.

26

299566C1

CLAMP

hose

3шт.

167263

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 pan-hd

3шт.

827427C1

PRODUCT GRAPHIC

temperature

1шт.
