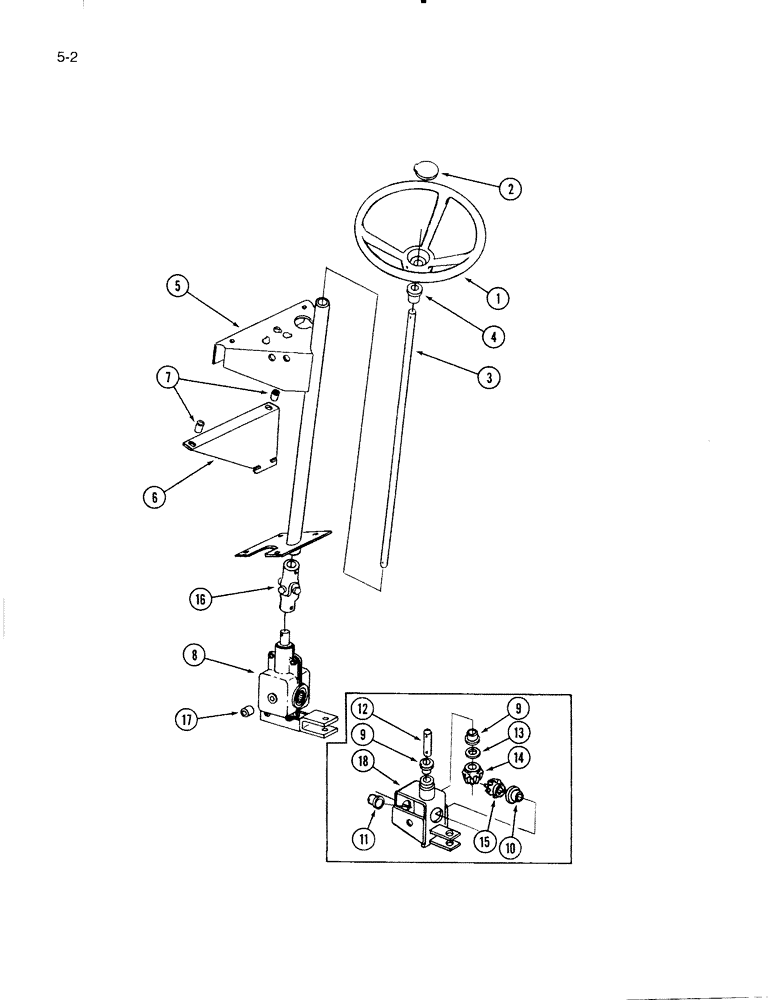

Запчасти Case IH 4000 (5-02) - STEERING CONTROLS, 4000 WINDROWER (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
828982C1
WHEEL
- steering
1шт.
22337R1
PIN,1/4" x 2 1/2", Coiled
1шт.
21753R1
WASHER
- flat, 25/32 x 1-1/2 x 1/16 inch
1шт.
2
828734C1
RETAINER
- steering wheel cap
1шт.
3
831757C1
ROD
- steering post
1шт.
4
815264C1
BUSHING,19.43mm ID x 24.89mm OD x 31.24mm L
- post rod upper
1шт.
5
823854C91
TUBE
ASSEMBLY - steering post
1шт.
830842C2
PRODUCT GRAPHIC
DECAL - parking brake warning
1шт.
829207C1
DECAL
- instrument panel
1шт.
433-520
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5
BOLT - round head square neck, 5/16 NC x 1-1/4 inch
4шт.
425-105
NUT,5/16"-18, G5
4шт.
6
829947C1
COVER
- instrument
1шт.
413-548
BOLT,Hex, 5/16" - 18 x 3", Gr 5
- hex, 5/16 NC x 3 inch
2шт.
425-105
NUT,5/16"-18, G5
4шт.
7
61851V
SPACER,1/4" Pipe x 3/4"
Instrument cover 1/4" Pipe x 3/4"
2шт.
8
824690C91
GEAR-SET
GEAR ASSEMBLY - steering, cast type (Replaces 831513C91 welded type, also order steering shaft 826740C1)
1шт.
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
2шт.
492-11038
LOCK WASHER,3/8"
2шт.
495-81136
WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk
- flat, 13/32 x 1 x 7/64 inch
2шт.
9
830053C1
BUSHING
- steering rod lower
2шт.
10
830054C1
BUSHING
- steering shaft
1шт.
11
823168C1
BUSHING
- steering support front
1шт.
12
830058C1
PIN
- steering lower
1шт.
19534R1
PIN,1/4" x 1 1/2", Coiled
1шт.
13
852309C1
SHIM
- bevel gear
1шт.
14
830044C1
GEAR
- bevel, steering
1шт.
19534R1
PIN,1/4" x 1 1/2", Coiled
1шт.
15
830043C1
GEAR
- bevel, steering
1шт.
16
829492C92
JOINT
ASSEMBLY - universal, steering
1шт.
19534R1
PIN,1/4" x 1 1/2", Coiled
2шт.
17
561277R1
SPACER,5/8" Tube x 1/2"
- pipe, 13/32 x 5/8 x 7/16 inch
2шт.
18
NSS
NOT SOLD SEPARAT
HOUSING ASSEMBLY - steering gear welded type (Order steering gear assembly 824690C91 and steering shaft 826740C1)
1шт.
Выбрано товаров: 33
