Запчасти Case IH 4000 (4-38) - ALTERNATOR, METRIC HARDWARE (04) - ELECTRICAL SYSTEMS

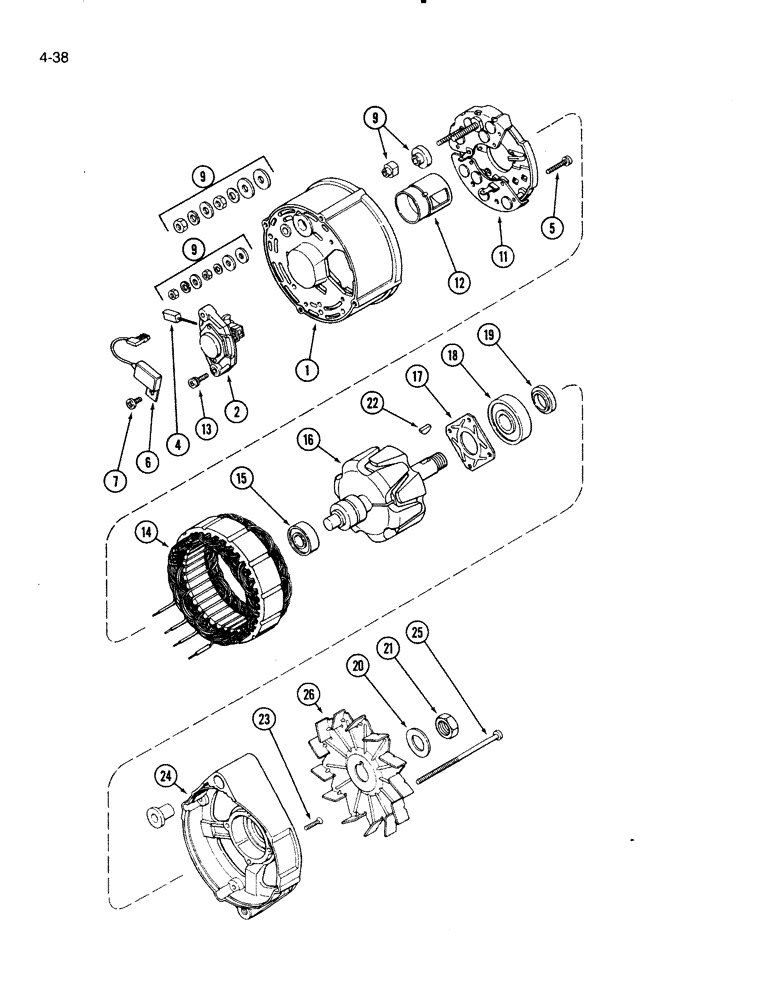

Схема запчастей Case IH 4000 - (4-38) - ALTERNATOR, METRIC HARDWARE (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - electrical, BOSCH

1шт.

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

AC187873

CORE-ALTERNATOR

Return Part Number

1шт.

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

87297246

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 63 AMP Alternator

1шт.

103801A1R

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103802A1R

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

87297230

REMAN-ALTERNATOR

Remanufactured Bosch 12 VOLT, 65 AMP Alternator

1шт.

87297231

CORE-ALTERNATOR

Return Part Number, Bosch 12 VOLT, 65 AMP Alternator

1шт.

1

A187903

COVER

HOUSING - collector ring end

1шт.

2

A187906

VOLTAGE REGULATOR

REGULATOR - voltage

1шт.

4

1964968C1

COMMUTATOR BRUSH

BRUSH ASSEMBLY - alternator

1шт.

5

A187898

SCREW

BOLT - voltage regulator retaining

2шт.

6

3079134R1

CAPACITOR

CAPACITOR - alternator

1шт.

7

1964969C1

SCREW

SCREW - Fillister, capacitor retaining

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET - hardware, terminal

1шт.

11

A187917

RECTIFIER

BRIDGE - rectifier, alternator

1шт.

12

A187899

INNER SHIELD

SHIELD - alternator

1шт.

13

A187907

CAPTIVE WASHER SCREW

BOLT - with washer, rectifier bridge retaining

2шт.

14

A187995

STATOR

STATOR ASSEMBLY - alternator

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING - ball, rotor, collector ring end

1шт.

16

1987499C1

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

17

A187901

FIXING PLATE

PLATE - bearing retaining

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING - ball, rotor, drive end

1шт.

3078897R1

SET OF PARTS

KIT - rotor retaining

1шт.

19

NSS

NOT SOLD SEPARAT

RING - spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - lock, rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY - pulley retainer

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - bearing retaining plate

4шт.

24

A187994

HOUSING

HOUSING - drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT - slotted, housing retainer

4шт.

26

221425R1

FAN

FAN - alternator

1шт.

Выбрано товаров: 38
