Запчасти Case IH 4000 (4-36) - ALTERNATOR, U. S. STANDARD HARDWARE (04) - ELECTRICAL SYSTEMS

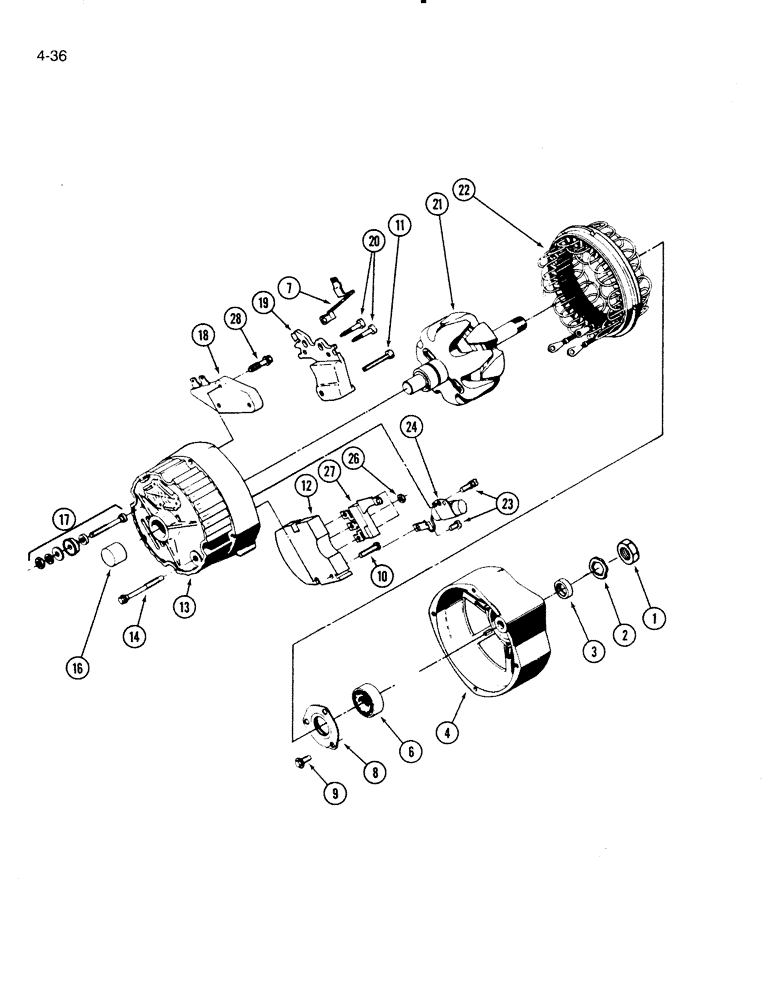

Схема запчастей Case IH 4000 - (4-36) - ALTERNATOR, U. S. STANDARD HARDWARE (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1105574

ALTERNATOR

ALTERNATOR ASSEMBLY - electrical

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 Amp Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

103801A1R

REMAN-ALTERNATOR

Reman for New PN 87297245

1шт.

103801A1C

CORE-ALTERNATOR

Return Number

1шт.

103802A1R

REMAN-ALTERNATOR

Reman for New PN 87297245

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

1

A25546

NUT

NUT - drive end

1шт.

2

1941978

WASHER

WASHER - drive end

1шт.

3

1978940

COLLAR

COLLAR - bearing

1шт.

4

A49174

CAP

FRAME - drive end

1шт.

6

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - drive end

1шт.

7

A46931

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

8

A52397

LARGE PLATE

PLATE, LARGE RETAINER - bearing

1шт.

9

1975736

SCREW

SCREW - retainer

3шт.

10

1984458

SCREW

SCREW - rectifier support

1шт.

11

1974020

SCREW

SCREW - brush holder pivot

1шт.

12

A46942

ELEC CONNECTOR

SUPPORT - rectifier

1шт.

13

1975718

FRAME

FRAME ASSEMBLY - slip ring end

1шт.

14

1956975

BOLT

BOLT - housing retaining

4шт.

16

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING - slip ring end

1шт.

17

A47597

TERMINAL CONNECTOR

KIT - battery terminal

1шт.

18

1988949

REGULATOR

REGULATOR - voltage

1шт.

19

A47042

HOLDER

HOLDER ASSEMBLY - brush with brushes

1шт.

20

1876681

SCREW

SCREW - brush holder retaining

2шт.

21

1985493

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

22

A46934

STATOR

STATOR ASSEMBLY - alternator

1шт.

23

1851612

SCREW

SCREW - capacitor bracket retaining

2шт.

24

A47734

CAPACITOR

CAPACITOR - alternator

1шт.

26

225-14108

NUT,#8-32

NUT - hex, No. 8 NC

3шт.

27

A48339

DIODE

DIODE - trio

1шт.

28

1894586

SCREW

SCREW - regulator retaining

1шт.

Выбрано товаров: 39
