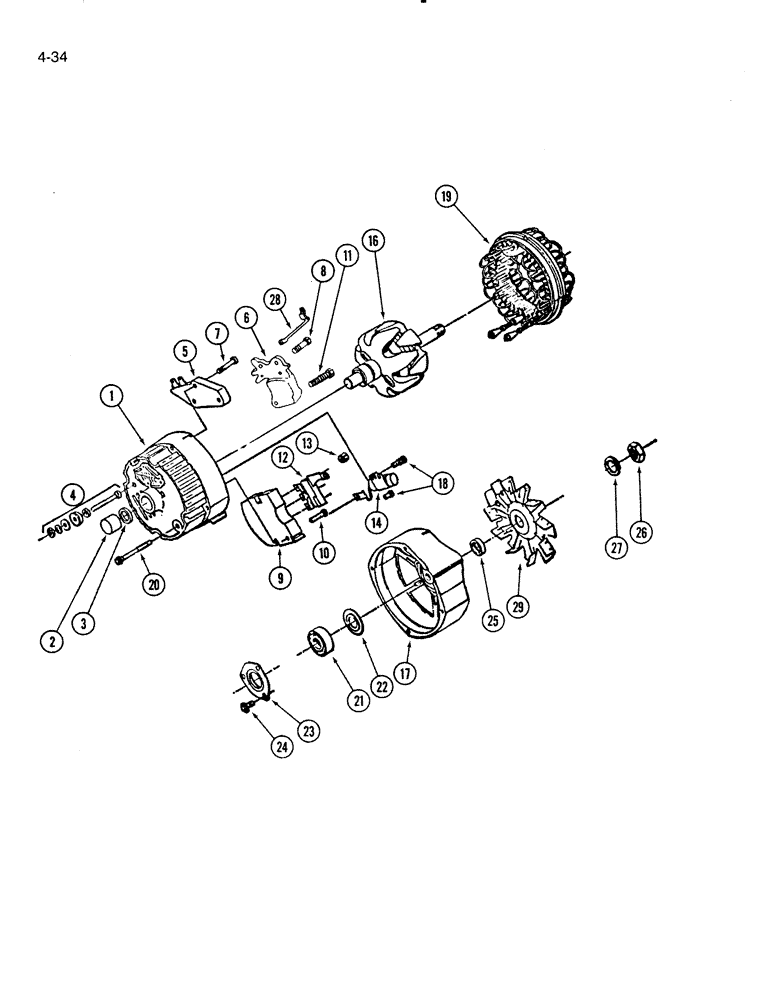

Запчасти Case IH 4000 (4-34) - ALTERNATOR, U. S. STANDARD HARDWARE (04) - ELECTRICAL SYSTEMS

1102921

ALTERNATOR

ALTERNATOR ASSEMBLY - electrical

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 Amp Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

103801A1R

REMAN-ALTERNATOR

Reman for New PN 1102921

1шт.

103801A1C

CORE-ALTERNATOR

Return Number

1шт.

103802A1R

REMAN-ALTERNATOR

Reman for New PN 1102921

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

1

1975518

FRAME

SPARE PART FRAME ASSEMBLY - slip ring end

1шт.

2

A47046

ROLLER BEARING,0.6699" ID x 0.9375" OD x 0.67"

BEARING - slip ring end

1шт.

3

1961323

SEAL

SEAL - oil

1шт.

4

A47597

TERMINAL CONNECTOR

KIT - battery terminal

1шт.

5

A45213

REGULATOR

REGULATOR - voltage

1шт.

1894586

SCREW

SCREW - regulator retaining

1шт.

6

A47042

HOLDER

HOLDER ASSEMBLY - brush with brushs

1шт.

7

1894585

SCREW

SPARE PART SCREW - regulator retaining

1шт.

8

1876681

SCREW

SCREW - brush holder retaining

2шт.

9

585630C1

RECTIFIER

SUPPORT - rectifier

1шт.

10

1984458

SCREW

SCREW - rectifier support retaining

1шт.

11

1974020

SCREW

SCREW - brush holder pivot

1шт.

12

A48339

DIODE

RECTIFIER - diode trio

1шт.

13

225-14108

NUT,#8-32

NUT - retifier bridge

3шт.

14

A47734

CAPACITOR

CAPACITOR - alternator

1шт.

15

1869573

BRACKET

BRACKET - capacitor

1шт.

16

A45391

ROTOR

ROTOR ASSEMBLY -alternator

1шт.

17

A46933

FRAME

FRAME ASSEMBLY - drive end (Replaces 1970525)

1шт.

18

1851612

SCREW

SCREW - capacitor bracket retaining

2шт.

19

585629C1

STATOR

STATOR ASSEMBLY - alternator

1шт.

20

1956975

BOLT

bolt - housing retaining

4шт.

21

539103R1

BALL BEARING,16.99mm ID x 40mm OD x 12mm W

BEARING - drive end

1шт.

22

A45232

WASHER

SLINGER - grease

1шт.

23

A44433

PLATE

RETAINER - bearing

1шт.

24

1975736

SCREW

SCREW - retainer

3шт.

25

1959991

COLLAR

COLLAR - bearing 7/8 inch diameter

1шт.

25

A49733

COLLAR

COLLAR - bearing 1 inch diameter

1шт.

26

A25546

NUT

NUT - drive end

1шт.

27

1941978

WASHER

WASHER - drive end

1шт.

28

1894568

ELEC CONNECTOR

TERMINAL - relay

1шт.

29

221425R1

FAN

FAN - alternator

1шт.
