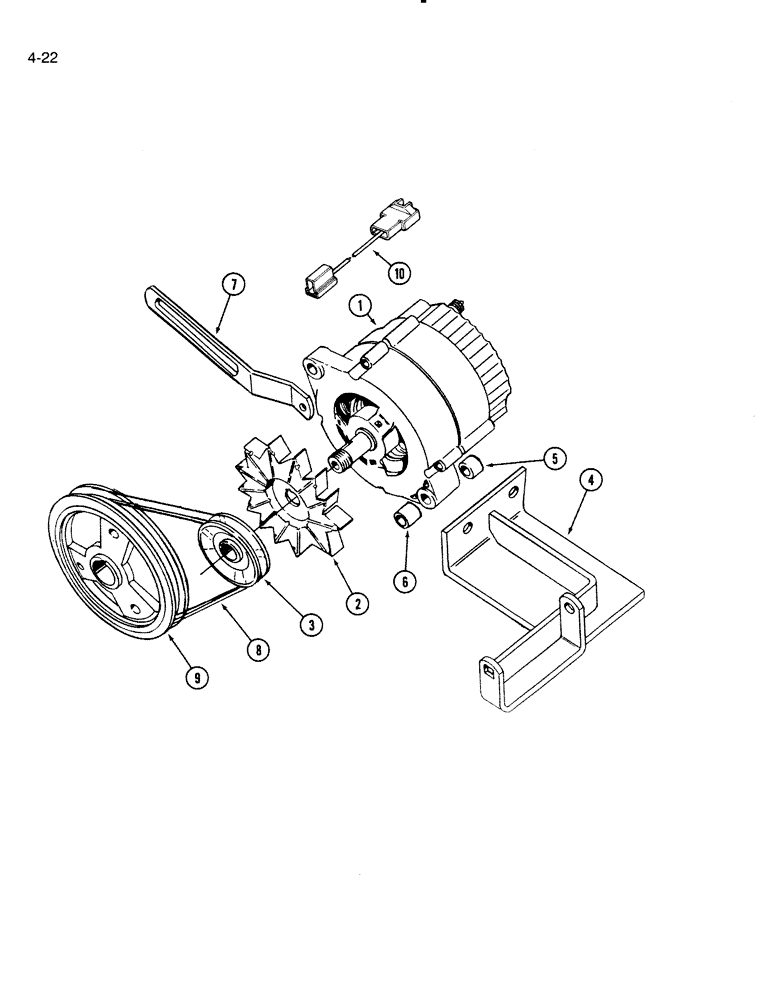

Запчасти Case IH 4000 (4-22) - ALTERNATOR MOUNTING, 4000 WINDROWER P.I.N. 6005 AND AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - electrical (See Pages 4-35 through 4-41)

1шт.

571690C1

NUT - hex, m6 x 1 mm

1шт.

225-14112

NUT,#12-24

1шт.

492-11012

LOCK WASHER,#12

WASHER, LOCK, #12

1шт.

2

221425R1

FAN

- alternator

1шт.

3

378349R1

PULLEY

- alternator

1шт.

4

832323C1

SUPPORT

ASSEMBLY - alternator

1шт.

433-672

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 4-1/2 inch

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

5

561277R1

SPACER,5/8" Tube x 1/2"

- pipe, 5/8 x 1/2 inch

1шт.

6

603046R1

SPACER,3/8" X-Strng Pipe x 7/8"

- pipe, 3/8 x 13/16 inch

1шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

7

826751C2

BRACE

- alternator adjusting

1шт.

615-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 30 mm

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

425-105

NUT,5/16"-18, G5

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

1шт.

8

826761C1

V-BELT,12.70 mm W x 987.43 mm L

Fan 12.70 mm W x 987.43 mm L

1шт.

9

827027C1

SHOCK ABSORBER

PULLEY - damper, crankshaft vibration

1шт.

10

1995794C1

HARNESS

- alternator adapter

1шт.
