(4-12) - LIGHTING AND CONNECTIONS, WITHOUT CAB

Запчасти Case IH 4000 (4-12) - LIGHTING AND CONNECTIONS, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

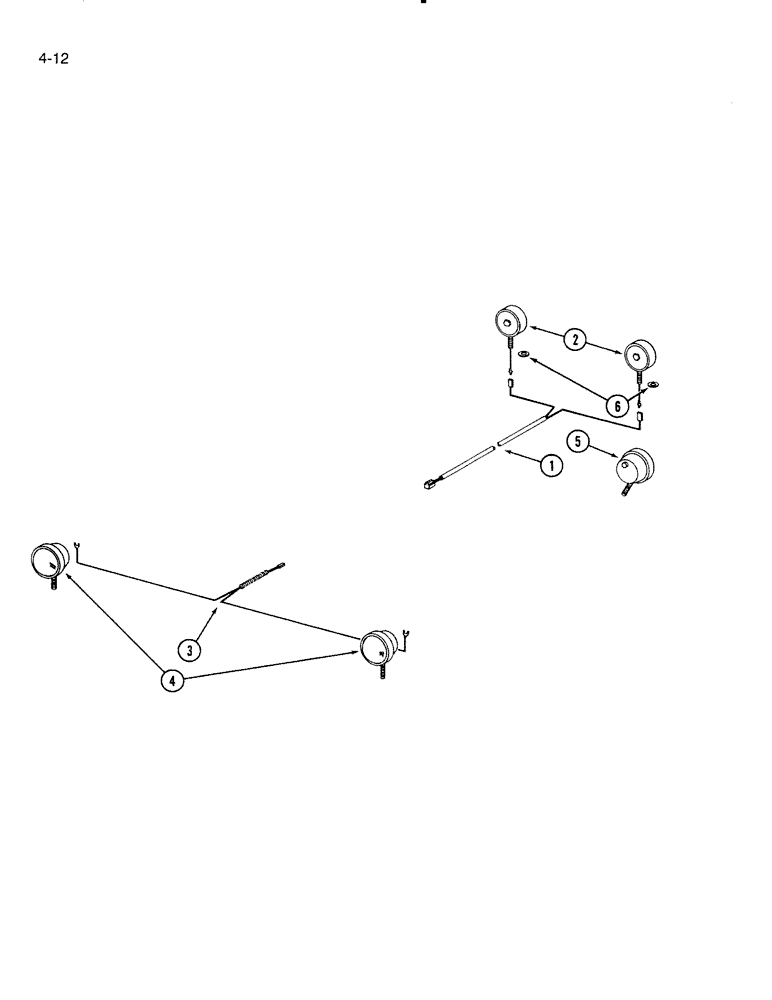

Схема запчастей Case IH 4000 - (4-12) - LIGHTING AND CONNECTIONS, WITHOUT CAB (04) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

829154C1

HARNESS

ASSEMBLY - safety flashing lights

1шт.

2

REF

INSTRUCTION

LIGHT ASSEMBLY - safety flashing (See Page 4-43)

2шт.

3

829152C1

HARNESS

ASSEMBLY - headlight

2шт.

4

REF

INSTRUCTION

LIGHT ASSEMBLY - head, rail mounted (See Page 4-47)

2шт.

5

REF

INSTRUCTION

LIGHT ASSEMBLY - combination stop and tail (See Page 4-45)

1шт.

6

394262R1

WASHER

GASKET - light

2шт.

Выбрано товаров: 6
