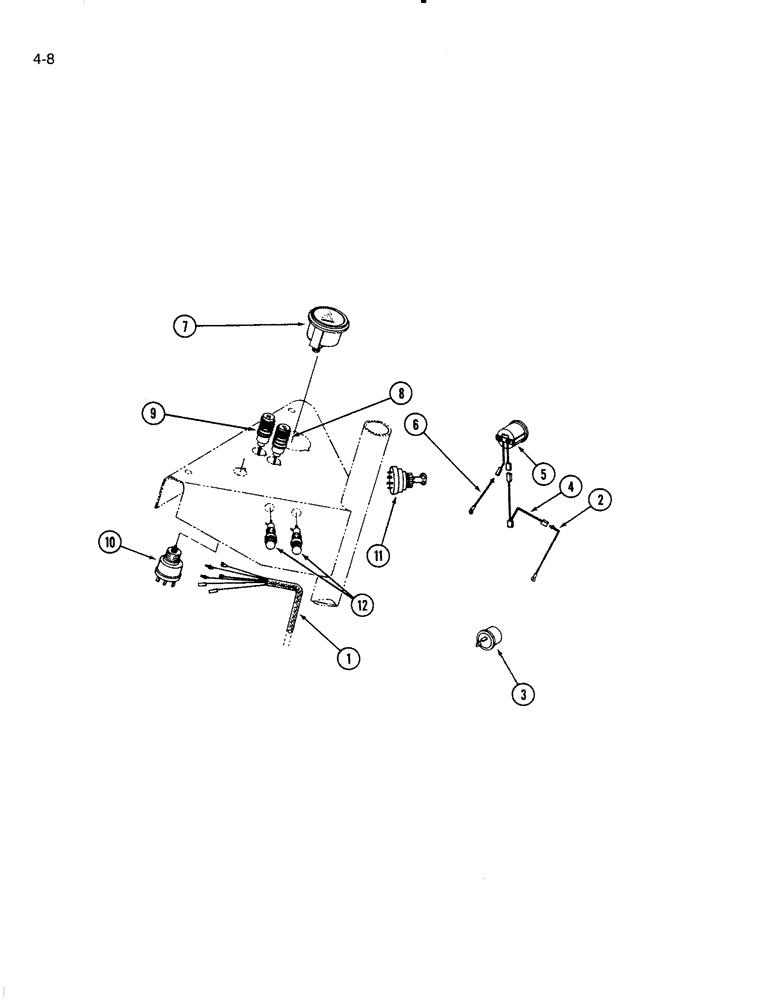

Запчасти Case IH 4000 (4-08) - INSTRUMENT PANEL WIRING, 4000 WINDROWER (04) - ELECTRICAL SYSTEMS

1

828043C4

HARNESS

ASSEMBLY - front

1шт.

2

823540C1

CABLE

- fuel, Serial Range: gauge-harness

1шт.

3

394132R91

FLASHER UNIT

FLASHER - light

1шт.

4

824671C1

CABLE

ASSEMBLY - hour meter

1шт.

5

709152C2

METER

- hour (Alternate for 740543C1)

1шт.

5

740543C1

HOURMETER

METER - hour (Alternate for 709152C2)

1шт.

356737R91

DAMPER

- vibration

1шт.

121839

SCREW,Sl Rnd Hd, #6 - 32 x 5/16"

- round head slotted, No. 6 x 5/16 inch

3шт.

492-11006

LOCK WASHER,#6

Washer, Lock, #6

3шт.

6

562820C1

CABLE

- hour meter ground

1шт.

7

677162R91

GAUGE

ASSEMBLY - temperature indicator

1шт.

8

829109C91

LIGHT

LAMP ASSEMBLY - oil pressure indicator

1шт.

27763R1

LAMP,C2F, #1895R, 14V

BULB - light

1шт.

9

H352336

LIGHT

LAMP ASSEMBLY - alternator indicator

1шт.

A24354

BULB

- light

1шт.

10

829113C1

SWITCH

- light

1шт.

11

677221R91

SWITCH

ASSEMBLY - starting

1шт.

619743C1

KEY

- starting switch

1шт.

12

376852R91

HOUSING

HOLDER ASSEMBLY - fuse

2шт.

223-31

FUSE,10 Amp, Type 3AG

- 30 ampere

1шт.

356445R91

KNOB

- fuse holder

1шт.

831268C92

PACKAGE

KIT - hour meter cables

1шт.
