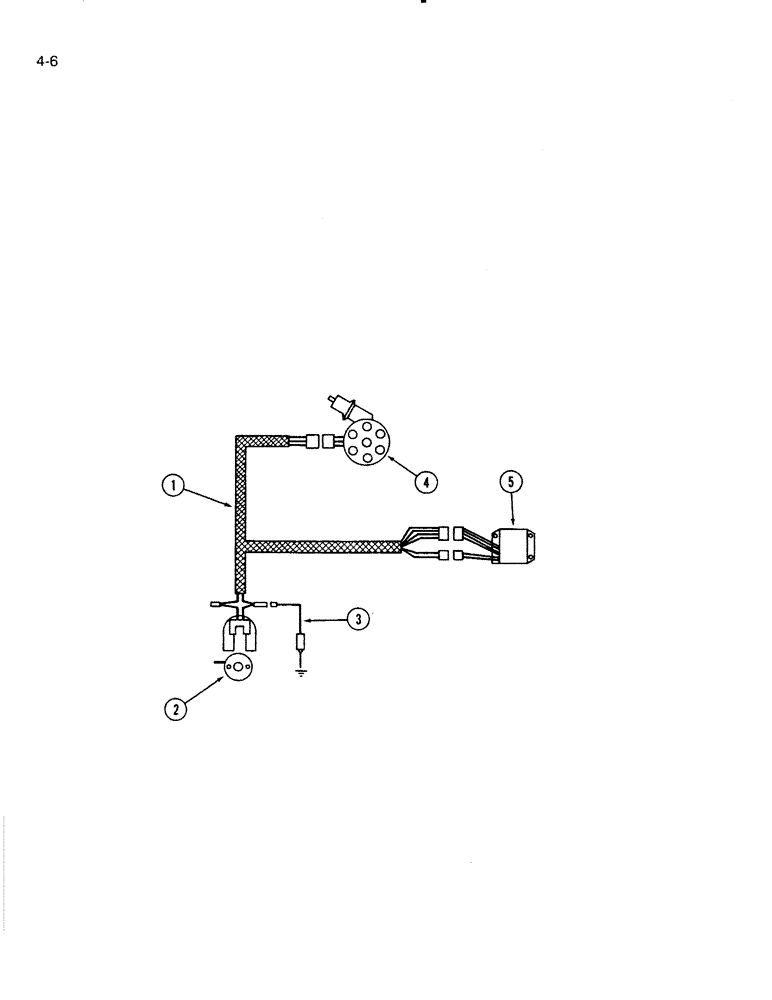

Запчасти Case IH 4000 (4-06) - IGNITION SYSTEM WIRING, 4000 WINDROWER (04) - ELECTRICAL SYSTEMS

1

827490C1

HARNESS

ASSEMBLY - ignition

1шт.

2

827496C1

COIL

ASSEMBLY - ignition

1шт.

832251C1

BRACKET

- mounting

1шт.

440-11028

SCREW,Cross Pan Hd, #10-24 x 1 3/4"

- machine, pan head, No. 10 NC x 1-3/4 inch

1шт.

323887C1

SCREW

BOLT - coil mounting

2шт.

3

832238C1

CAPACITOR

- ignition

1шт.

4

REF

INSTRUCTION

DISTRIBUTOR - ignition (See page 2-45)

1шт.

5

827498C1

CONTROL

MODULE - electronic ignition

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.
