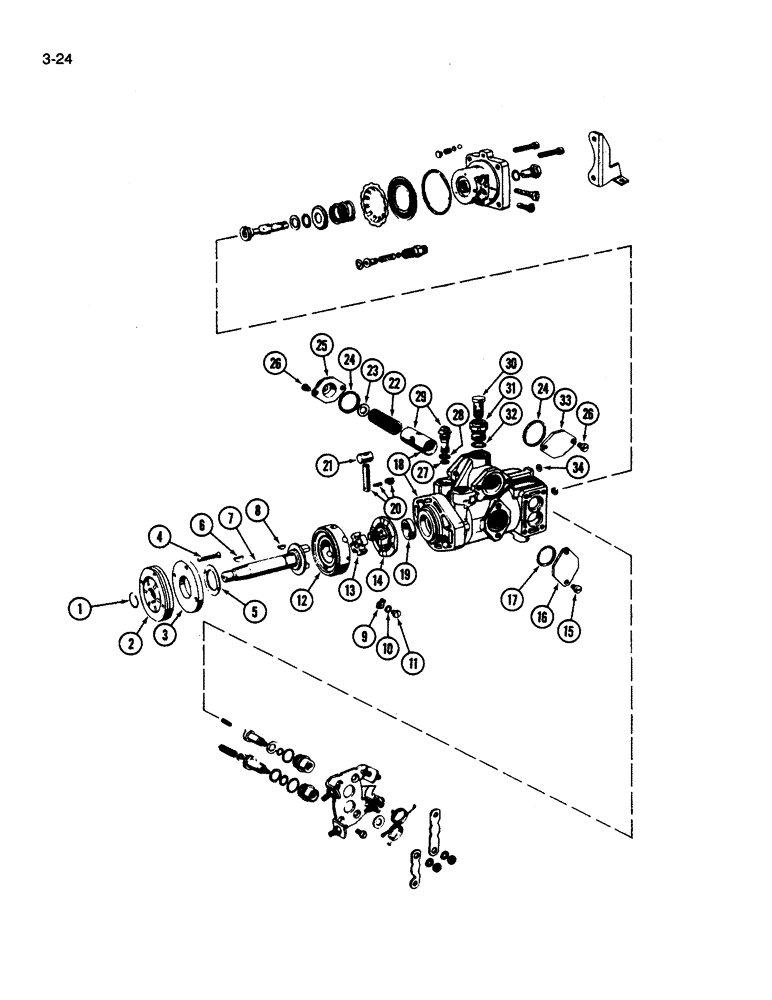

Запчасти Case IH 4000 (3-24) - FUEL INJECTION PUMP, D-239 DIESEL ENGINE (03) - FUEL SYSTEM

3218002R92

PUMP

ASSEMBLY - fuel injection

1шт.

1

3078474R1

RING

- retaining

1шт.

2

3078475R91

PUMP

- charge

1шт.

3

3078476R1

RING

- charge pump support

1шт.

4

3078477R1

BOLT,CSK

SCREW - retaining support ring

2шт.

5

3078479R1

THRUST WASHER

- roller retaining thrust

1шт.

6

3079101R1

WOODRUFF KEY

KEY - woodruff (Replaces 3078371R1)

1шт.

7

3078473R1

SHAFT

- drive

1шт.

8

3132395R1

KEY

- woodruff

1шт.

9

3132598R1

INDICATOR

POINTER - timing

1шт.

10

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - lock, 4 mm

1шт.

11

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

- pan head

1шт.

12

3078478R91

RETAINER

RING ASSEMBLY - roller retaining

1шт.

13

3059007R1

DISC

- cross type cam face

1шт.

14

3078480R1

CAM

- face

1шт.

15

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- slotted pan head machine

2шт.

16

3078486R1

COVER

- timing window

1шт.

17

3078485R1

RING

O-RING - window cover

1шт.

Part of Fuel Injection Pump Gasket kit P/N 3078526R91

1шт.

18

3078598R91

HOUSING

ASSEMBLY - pump with timing advance piston

1шт.

19

3078355R2

OIL SEAL

- oil, drive shaft

1шт.

20

3078481R1

PIN

- automatic advance connecting

1шт.

21

3078482R1

SLIDE

R - advance piston

1шт.

22

3078573R1

SPRING

- advance piston

1шт.

23

3078528R1

THRUST WASHER

- thrust, 0.6 mm

1шт.

23

3078529R1

THRUST WASHER

- thrust, 0.8 mm

1шт.

23

3078530R1

THRUST WASHER

- thrust, 1.0 mm

1шт.

23

3078531R1

THRUST WASHER

- thrust, 1.2 mm

1шт.

23

3078532R1

THRUST WASHER

- thrust, 1.4 mm

1шт.

23

3078533R1

THRUST WASHER

- thrust, 3.0 mm

1шт.

24

3078488R1

RING

O-RING - advance housing

2шт.

Part of Fuel Injection Pump Gasket kit P/N 3078526R91

1шт.

25

3078489R1

COVER

PLATE - advance housing

1шт.

26

934810R1

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

SCREW - advance housing plate

4шт.

27

3078535R1

O-RING

- regulator valve

1шт.

Part of Fuel Injection Pump Gasket kit P/N 3078526R91

1шт.

28

3078358R1

O-RING

- regulator valve

1шт.

Part of Fuel Injection Pump Gasket kit P/N 3078526R91

1шт.

29

3078614R91

VALVE

- regulator

1шт.

30

3059086R1

BANJO BOLT

SCREW - hollow

1шт.

31

3078484R1

VALVE

- overflow

1шт.

32

3078483R1

O-RING,2.5mm Thk x 15mm ID

- overflow valve

1шт.

Part of Fuel Injection Pump Gasket kit P/N 3078526R91

1шт.

33

3078486R1

COVER

PLATE - advance housing

1шт.

34

3078487R1

O-RING

PACKING - ring

1шт.

Part of Fuel Injection Pump Gasket kit P/N 3078526R91

1шт.

3078526R91

GASKET KIT

KIT - fuel injection pump gasket, Includes: Ref. 17, 24, 27, 28, 32 and 34

1шт.
