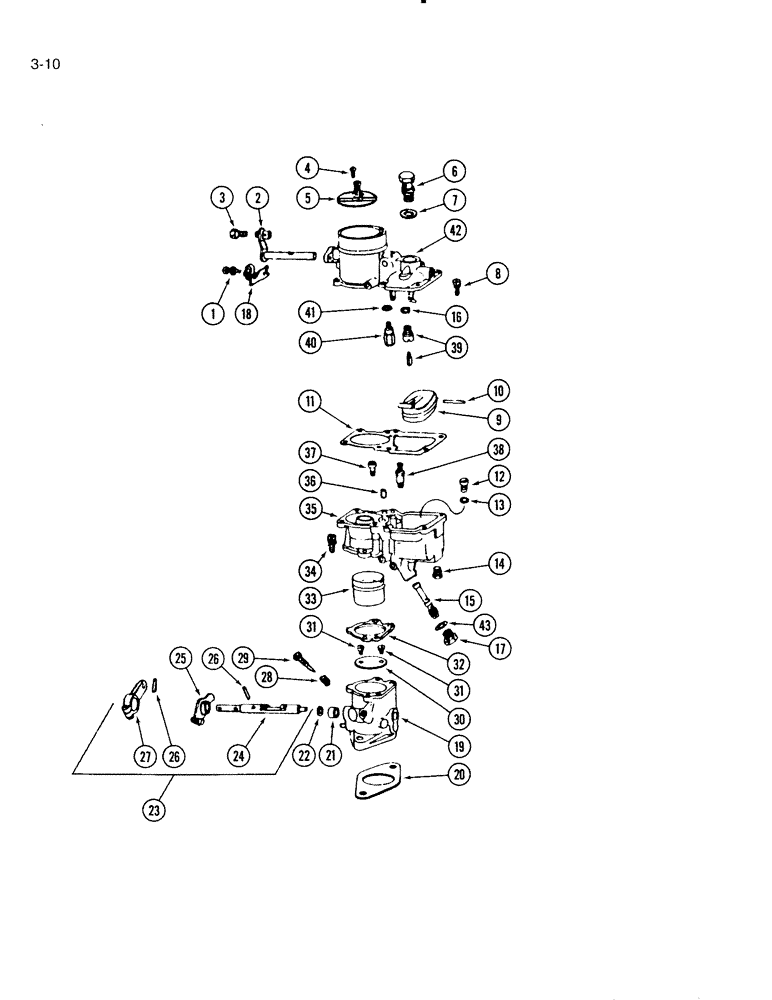

Запчасти Case IH 4000 (3-10) - CARBURETOR, C-232 AND C-258 GAS ENGINE, PRIOR TO P.I.N. 4981 (03) - FUEL SYSTEM

831914C91

CARBURETOR

- engine

1шт.

1

454689

SCREW ASSEMBLY - air shutter bracket

1шт.

2

827281C1

SHAFT

- air shutter lever

1шт.

3

19402R1

SCREW - shaft swivel

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - air shutter

1шт.

Part of gasket kit 827291C1

1шт.

5

827283C1

SHUTTER

ASSEMBLY - air

1шт.

6

392421R91

FILTER

ASSEMBLY - fuel

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - filter

1шт.

Part of carburetor repair kit P/N 827292C1

1шт.

Part of gasket kit 827291C1

1шт.

8

19270R91

SCREW - fillister head slotted with washer No. 10 x 5/8 inch

6шт.

9

827285C1

FLOAT

ASSEMBLY - fuel

1шт.

10

NSS

NOT SOLD SEPARAT

PIN - float axle

1шт.

Part of gasket kit 827291C1

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: bowl-intake

1шт.

Part of carburetor repair kit P/N 827292C1

1шт.

Part of gasket kit 827291C1

1шт.

12

827575C1

JET

- main

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - main jet

1шт.

Part of carburetor repair kit P/N 827292C1

1шт.

Part of gasket kit 827291C1

1шт.

14

221-849

PLUG,Hex Soc, 1/8"-27

- hex head pipe, 1/8 inch

1шт.

15

827289C1

JET

- main discharge

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - fuel valve

1шт.

Part of carburetor repair kit P/N 827292C1

1шт.

17

31860D

PLUG

- fuel bowl

1шт.

18

827282C1

BRACKET

ASSEMBLY - air shutter

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - carburetor (Order 831914C91)

1шт.

20

NSS

NOT SOLD SEPARAT

GASKET - flange

1шт.

Part of gasket kit 827291C1

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - throttle shaft

1шт.

Part of gasket kit 827291C1

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - seal retaining

1шт.

Part of gasket kit 827291C1

1шт.

23

827286C1

LEVER

ASSEMBLY - throttle shaft

1шт.

24

NSS

NOT SOLD SEPARAT

SHAFT - throttle

1шт.

25

NSS

NOT SOLD SEPARAT

LEVER -throttle stop with spring

1шт.

26

NSS

NOT SOLD SEPARAT

PIN - clamp

1шт.

27

NSS

NOT SOLD SEPARAT

CLAMP - lever

1шт.

28

NSS

NOT SOLD SEPARAT

SPRING - idle adjusting screw

1шт.

29

NSS

NOT SOLD SEPARAT

NEEDLE - idle adjusting

1шт.

Part of gasket kit P/N 827291C1

1шт.

30

827287C1

PLATE

- throttle

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - plate retaining

2шт.

Part of gasket kit 827291C1

1шт.

32

NSS

NOT SOLD SEPARAT

GASKET - throttle, Serial Range: body-bowl

1шт.

Part of carburetor repair kit P/N 827292C1

1шт.

Part of gasket kit 827291C1

1шт.

33

827574C1

VENTURI

- carburetor

1шт.

34

271468

BRACKET

SCREW ASSEMBLY - fillister head slotted with washer, 1/4 NC x 3/4 inch

2шт.

35

NSS

NOT SOLD SEPARAT

BOWL - fuel (Order 831914C91)

1шт.

36

827290C1

VENT

- well

1шт.

37

827576C1

JET

- idle

1шт.

38

20053D

PLUG - channel

1шт.

39

NSS

NOT SOLD SEPARAT

VALVE - fuel

1шт.

Part of gasket kit 827291C1

1шт.

40

827284C1

PLUG

- vacuum piston

1шт.

41

NSS

NOT SOLD SEPARAT

WASHER - vacuum piston plug

1шт.

Part of carburetor repair kit P/N 827292C1

1шт.

Part of gasket kit 827291C1

1шт.

42

NSS

NOT SOLD SEPARAT

INTAKE - air (Order 831914C91)

1шт.

43

NSS

NOT SOLD SEPARAT

WASHER - fuel bowl

1шт.

Part of carburetor repair kit P/N 827292C1

1шт.

Part of gasket kit 827291C1

1шт.

827291C1

SET

KIT - gasket, Includes: Ref. 4, 7, 10, 11, 13, 20, 21, 22, 29, 31, 32, 39, 41 and 43

1шт.

827292C1

KIT

- carburetor repair (Includes Ref. 7, 11, 13, 16, 32, 41 and 43

1шт.
