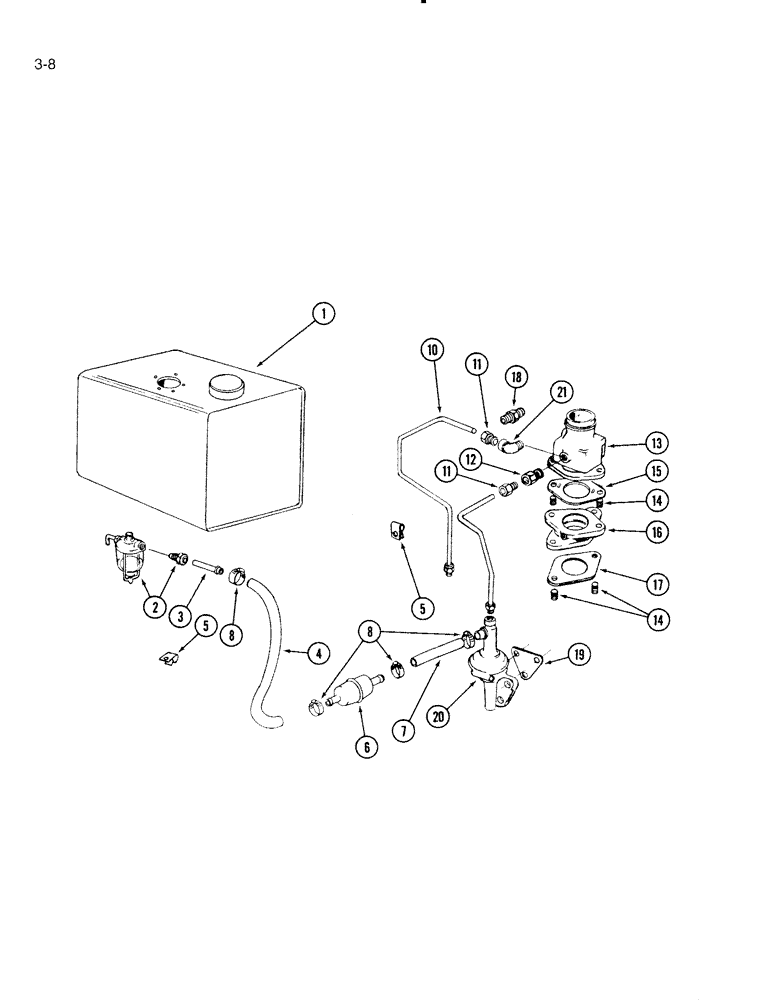

Запчасти Case IH 4000 (3-08) - FUEL SYSTEM, 4000 WINDROWER (03) - FUEL SYSTEM

1

REF

INSTRUCTION

TANK ASSEMBLY - fuel (See Page 3-3)

1шт.

2

61782C91

STRAINER ASSY.

STRAINER ASSEMBLY - fuel (See Page 3-15)

1шт.

2

61782C91GV

BOWL

Value, Fuel Strainer

1шт.

3

829289C1

TUBE,0.625" OD, 2" Length

- fuel strainer outlet

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - strainer to filter, 48 inch (Order 1954143C1 and, Serial Range: cut-lenght)

1шт.

5

49768

CLIP

- hose

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

6

1701232C91

FILTER

FILTER - fuel

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - filter to fuel pump, 6 inch (Order 1954143C1 and, Serial Range: cut-lenght)

1шт.

8

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

4шт.

9

823992C1

TUBE

- fuel pump to carbureter (P.I.N. 4981 and after)

1шт.

10

827092C1

TUBE

- fuel pump to carbureter (Prior to P.I.N. 4981)

1шт.

11

222-503

TUBE NUT,1/2"-20

NUT - tube

1шт.

12

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR - tube (P.I.N. 4981 and after)

1шт.

13

REF

INSTRUCTION

CARBURETER ASSEMBLY - fuel (See Page 3-11 or 3-13)

1шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

14

387139C1

STUD - adaptor

4шт.

15

827053C1

GASKET

- carbureter

2шт.

16

830170C1

ADAPTER

ADAPTOR - carbureter

1шт.

444688

PLUG

- hex socket pipe, 1/8 inch PT

1шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

17

384859C2

GASKET

- adaptor

1шт.

18

360758C2

FITTING,3/16" Hose x 1/8" NPTF, Barbed

- vaccum advance and retard tube

1шт.

19

532496R1

GASKET

- fuel pump

1шт.

20

827274C2

PUMP

- fuel

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

21

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

- tube (Prior to P.I.N.4981)

1шт.
