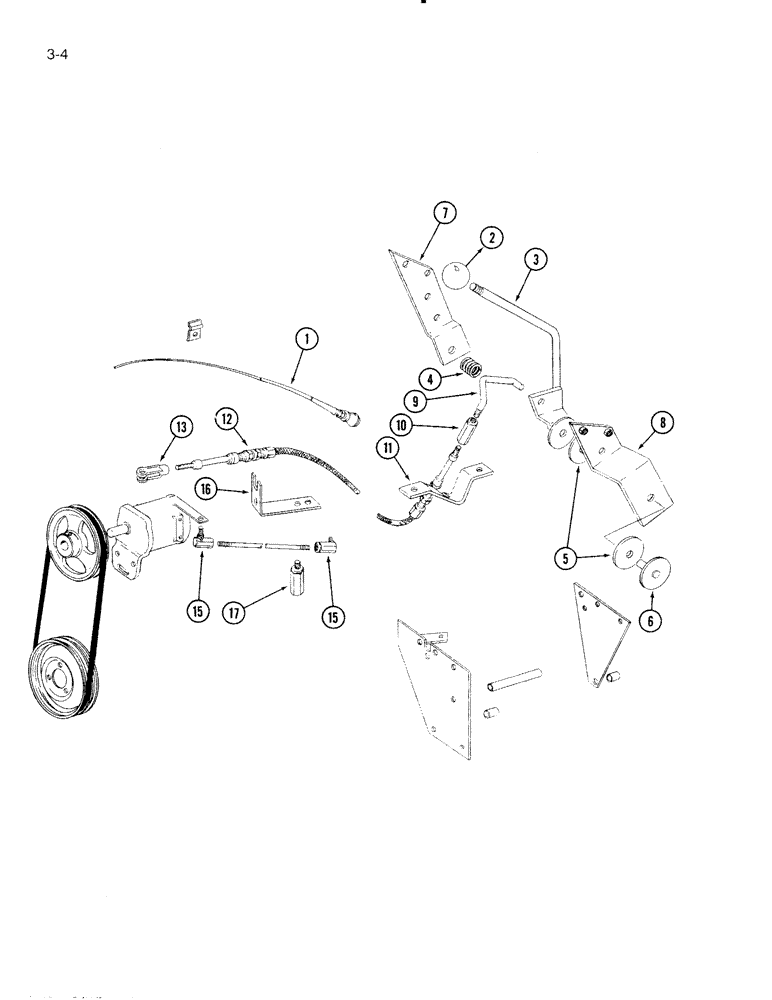

Запчасти Case IH 4000 (3-04) - THROTTLE CONTROLS, 4000 WINDROWER (03) - FUEL SYSTEM

1

832043C2

CABLE

ASSEMBLY - choke

1шт.

2

610638R1

KNOB

- throttle control rod

1шт.

3

828463C2

LEVER

ASSEMBLY - throttle control

1шт.

4

M1015

SPRING

- friction

1шт.

5

58666D

FRICTION WASHER

WASHER - friction

2шт.

6

828908C1

SHAFT

ASSEMBLY - throttle lever pivot

1шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch

1шт.

138-2055

PIN,3/16" x 1 1/2", Coiled

1шт.

7

828866C2

SUPPORT

- throttle lever and shaft inner

1шт.

8

823623C1

SUPPORT

ASSEMBLY - throttle lever and shaft outer

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

3шт.

9

828864C1

ROD

- throttle cable adjusting

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

10

828907C1

TURNBUCKLE

- throttle control

1шт.

11

828662C1

SUPPORT

- throttle cable

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

12

597843R1

CABLE

- throttle

1шт.

Ref #12 - (100" long) 08/07/96

1шт.

Ref #12A - 597842C1 Cable, if 75" cable is needed 08/07/96

1шт.

225-14210

NUT,#10-32

2шт.

13

117824

YOKE

- clevis, No.10 NF

1шт.

138082

CLEVIS PIN,3/16" x .580"

PIN - clevis

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

15

304164R91

JOINT

- ball 1/4 inch NF

2шт.

425-114

NUT,1/4"-28, G5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

827097C2

SUPPORT

- throttle cable

1шт.

17

827098C1

STUD

- throttle cable (Prior to P.I.N. 6005)

1шт.

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

17

823282C1

STUD

- throttle cable (P.I.N. 6005 and after)

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
