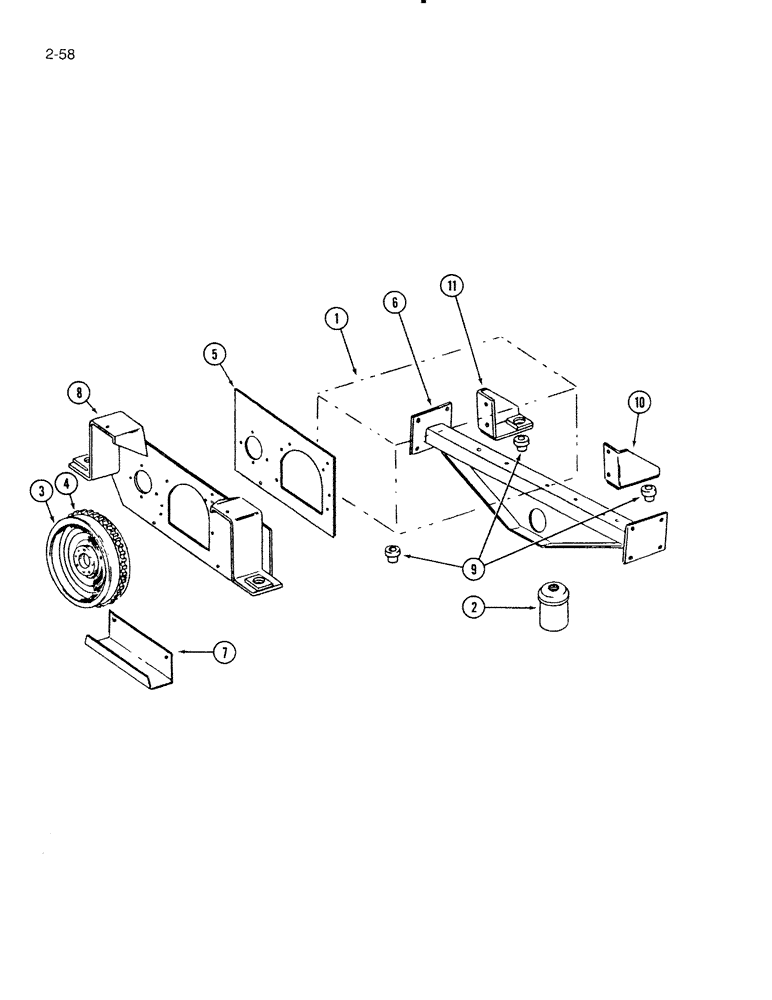

Запчасти Case IH 4000 (2-58) - ENGINE AND ENGINE MOUNTS, D-239 DIESEL ENGINE (02) - ENGINE

1

3218000R96

ENGINE

ASSEMBLY - diesel

1шт.

2

398080R2

ENGINE OIL FILTER

FILTER - oil

1шт.

444688

PLUG

- hex socket pipe, 1/8 inch PT

1шт.

3

831322C92

FLYWHEEL

- engine

1шт.

4

60883H

RING GEAR

GEAR - ring

1шт.

19269R1

LOCK PIN,3/8" x 1", Slotted

PIN, 3/8" x 1", Slotted

2шт.

3055156R2

BOLT,1/2" - 20 x 33.5mm

- flywheel

7шт.

5

829213C1

PLATE - mounting locating

1шт.

6

828783C2

BASE

ASSEMBLY - engine support rear

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, plated

8шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, flange, self-locking, 1/2 inch NC

8шт.

7

828904C2

GUARD - flywheel

1шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

8

828612C2

SUPPORT ASSEMBLY - engine front

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, plated

4шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

- flat, 17/32 x 1-3/4 x 11/64 inch

2шт.

9

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

INSULATOR - vibration (Replaces 886686C1)

4шт.

10

828610C1

SUPPORT ASSEMBLY - engine rear LH

1шт.

11

828611C1

SUPPORT ASSEMBLY - engine rear RH

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

- flat, 17/32 x 1-3/4 x 11/64 inch

2шт.
