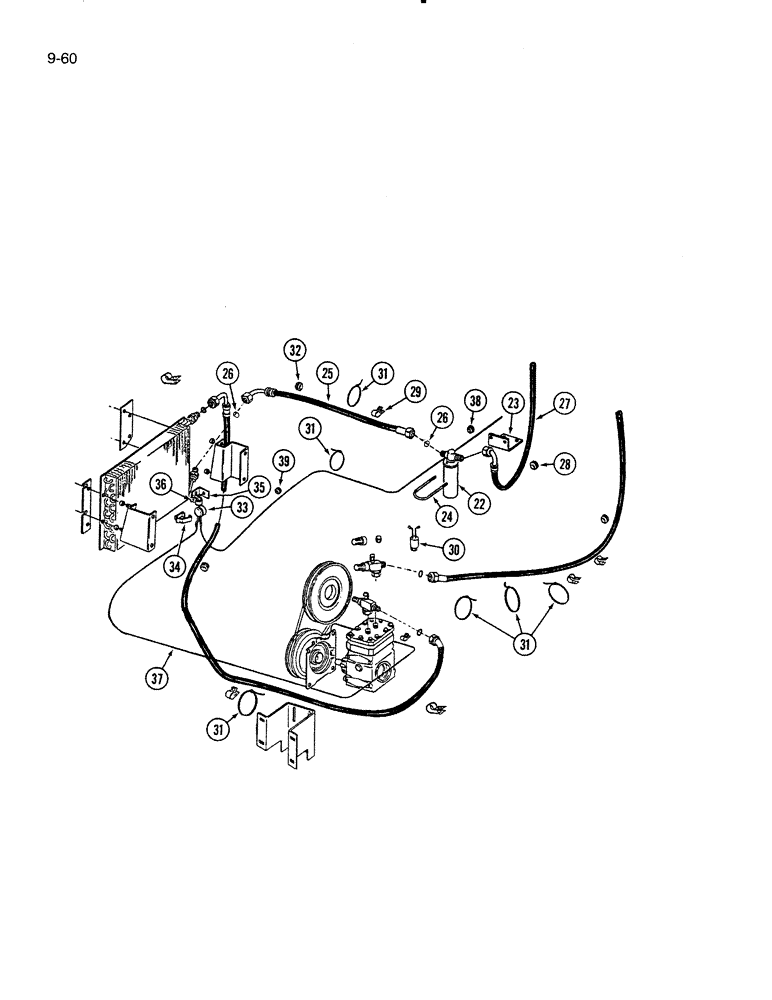

Запчасти Case IH 4000 (9-60) - AIR CONDITIONING SYSTEM (09) - CHASSIS/ATTACHMENTS

22

175254C1

TANK

DEHYDRATOR - receiver (45 degree flared fittings)

1шт.

22

118304C1

RESERVOIR

DEHYDRATOR - receiver (O-ring fittings);;1

1шт.

23

832434C1

SUPPORT

- dehydrator (Used with dehydrator 175254C1)

1шт.

23

824886C1

ANGLE

SUPPORT - dehydrator (Used with dehydrator 118303C1)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

24

165164C1

BOLT

U-BOLT - dehydrator (Used with dehydrator 175254C1)

1шт.

22232N

SPACER

- pipe

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21801R1

WASHER

- flat, 9/32 x 3/4 x 3/64 inch

2шт.

24

195915C1

BOLT,1/4" - 20 x 5.2", Class 5

U-BOLT - dehyrator (Used with dehyrator 118304C1)

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

832433C1

HOSE ASSY.

HOSE - condenser outlet (45 degree flared fittings)

1шт.

25

826095C1

HOSE

- condenser outlet (O-ring fittings)

1шт.

26

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

27

832432C1

HOSE ASSY.

HOSE - inlet (45 degree flared fittings)

1шт.

27

824696C1

HOSE

- inlet (O-ring fittings)

1шт.

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

28

832484C1

GROMMET

- inlet hose

1шт.

29

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- outlet hose

1шт.

30

111266C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

31

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

6шт.

32

127979

GROMMET,3/4" ID x 1 3/8" x .062", Diag Cut

- outlet hose

1шт.

33

155491C91

THERMOSTAT

- condensor

1шт.

34

155482C1

CLIP

- thermostat mounting

1шт.

35

830942C1

ANGLE

- tube clamp support

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

425-105

NUT,5/16"-18, G5

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

36

299404C1

CLAMP

- tube

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex 1/4-20 x 5/8 inch

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21801R1

WASHER

- flat, 9/32 x 3/4 x 3/64 inch

1шт.

37

828596C1

CABLE

- condenser thermostat

1шт.

37

107382C1

CABLE

- condenser thermostat

1шт.

38

823167C1

GROMMET

- thermostat wire

1шт.

39

117957

GROMMET,1/4" ID x 5/8" x .062"

- thermostat wire

1шт.
