Запчасти Case IH 4000 (9-36) - REAR DEFLECTOR, ONE PIECE TYPE (09) - CHASSIS/ATTACHMENTS

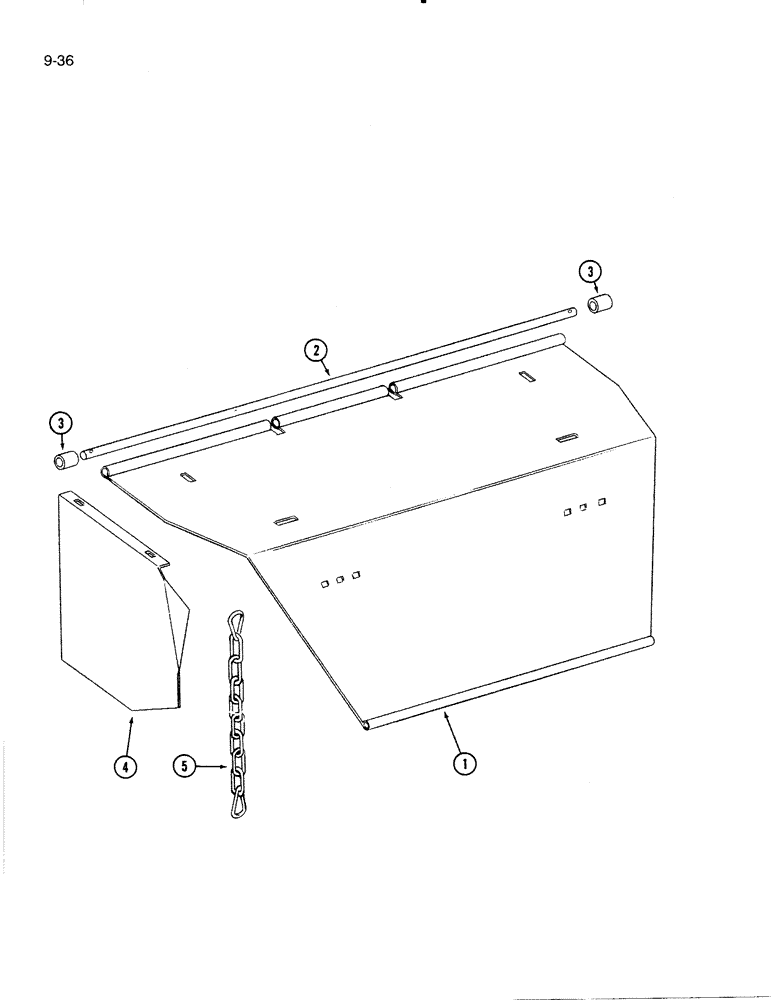

Схема запчастей Case IH 4000 - (9-36) - REAR DEFLECTOR, ONE PIECE TYPE (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

831762C1

SHIELD

- rear deflector

1шт.

2

595951R1

ROD

- shield pivot

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

3

2437P

SPACER,3/8" Pipe x 1 156"

- shield

2шт.

4

595953R2

SHIELD

- rear deflector right side

1шт.

4

595954R2

SHIELD

- rear deflector left side

1шт.

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

5

829565C1

CHAIN (AG)

CHAIN - shield adjusting

2шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

20893R1

WASHER

- flat, 11/32 x 1 x 7/64 inch

2шт.

Выбрано товаров: 12
