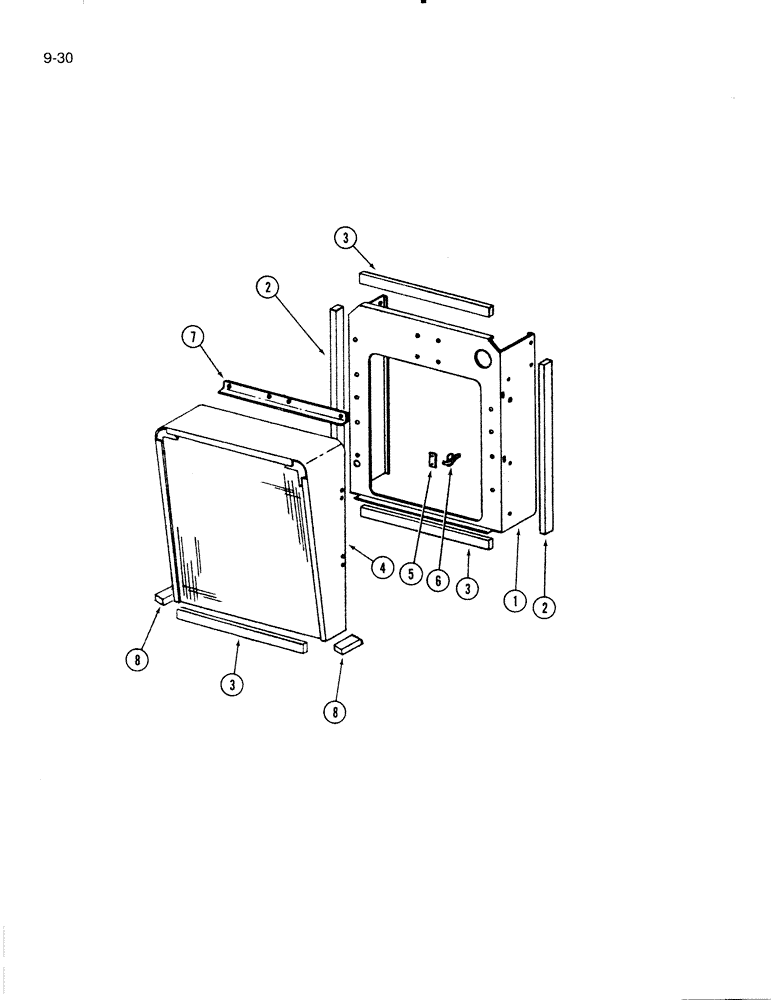

Запчасти Case IH 4000 (9-30) - GRILL, SUPPORT AND SCREEN (09) - CHASSIS/ATTACHMENTS

1

828233C92

FRAME

ASSEMBLY - radiator support

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - radiator support side 25-1/4 inch (Order 823821C1 and, Serial Range: cut-lenght)

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - radiator support top and bottom 21 inch (Order 823821C1 and, Serial Range: cut-lenght)

3шт.

281-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

SCREW - self tapping, 5/16 NC x 1/2 inch

6шт.

4

828225C2

SCREEN

ASSEMBLY - radiator

1шт.

5

828229C1

BAR

- screen clamp reinforcing

4шт.

6

168481C1

LATCH ASSY.

CLAMP - screen

4шт.

281-5458

SELF-TAP SCREW,Hex Washer, 0.19" - 24 x 1/2"

SCREW - self tapping, No. 10 NC x 1/2 inch

8шт.

7

828770C1

ANGLE

- radiator support

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - radiator screen 4 inch (Order 823821c1 and, Serial Range: cut-lenght)

2шт.
