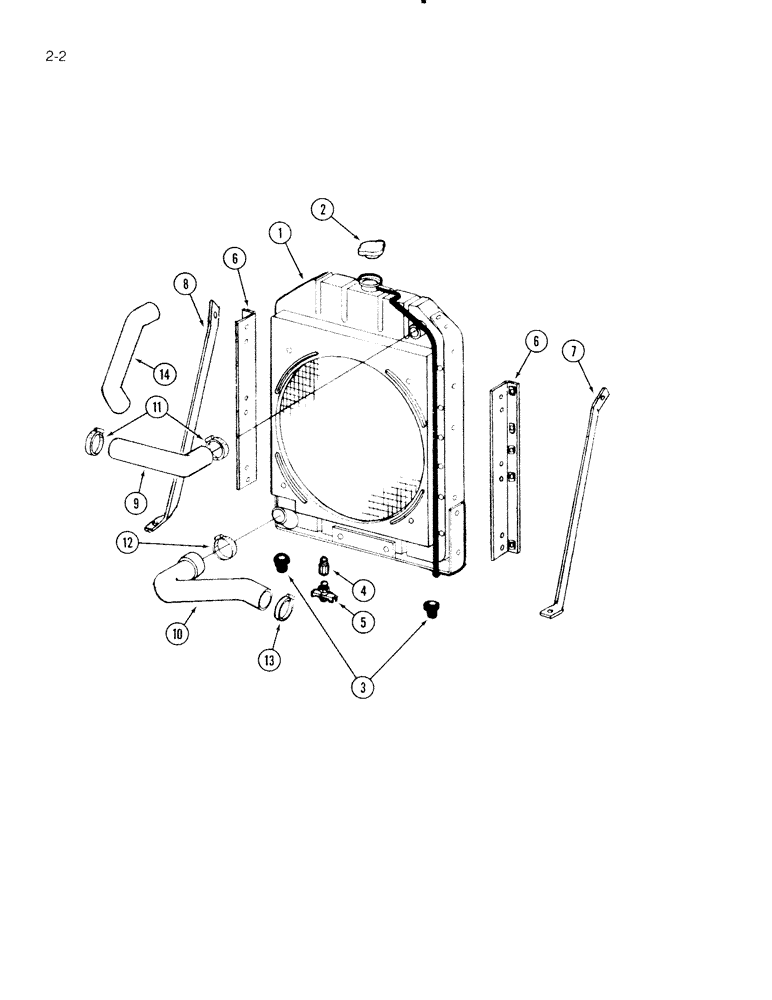

Запчасти Case IH 4000 (2-02) - RADIATOR AND CONNECTIONS, C-232 AND C-258 GAS ENGINE (02) - ENGINE

1

827867C1

RADIATOR

ASSEMBLY - coolant

1шт.

2

80889R91

COVER

CAP - radiator (Replaces 73047R91 and 118029R91)

1шт.

3

R29799

SHOCK ABSORBER

INSULATOR - radiator, rubber

2шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

4

614200R1

ADAPTER

ADAPTOR - radiator drain valve

1шт.

5

217-92

COCK

VALVE - radiator drain

1шт.

6

831220C1

ANGLE

ASSEMBLY - radiator side support

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

7

831815C2

SUPPORT

- radiator LH

1шт.

8

831816C2

SUPPORT

- radiator RH

1шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

6шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

4шт.

9

826949C1

RADIATOR HOSE,1.50" ID x 10.30", SAE 20R4 CLASS SC OR SAE 20R4 CLASS R

Upper 1.50" ID x 10.30", SAE 20R4 CLASS SC OR SAE 20R4 CLASS R

1шт.

10

826758C1

RADIATOR HOSE,50.80 mm ID x 165.00 mm, SAE 20R4 CLASS S.C

HOSE - radiator lower (Replaces 829621C1)

1шт.

11

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, #28, 1.31/2.25 Type F Worm

2шт.

12

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, #36, 1.81/2.75 Type F Worm

1шт.

13

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, #32, 1.56/2.50 Type F Worm

1шт.

14

826077C1

RADIATOR HOSE,38.10 mm ID x 225.00 mm, SAE 20R4 CLASS S.C OR SAE 20R4 CLASS R

Upper (See Note B) 38.10 mm ID x 225.00 mm, SAE 20R4 CLASS S.C OR SAE 20R4 CLASS R

1шт.
