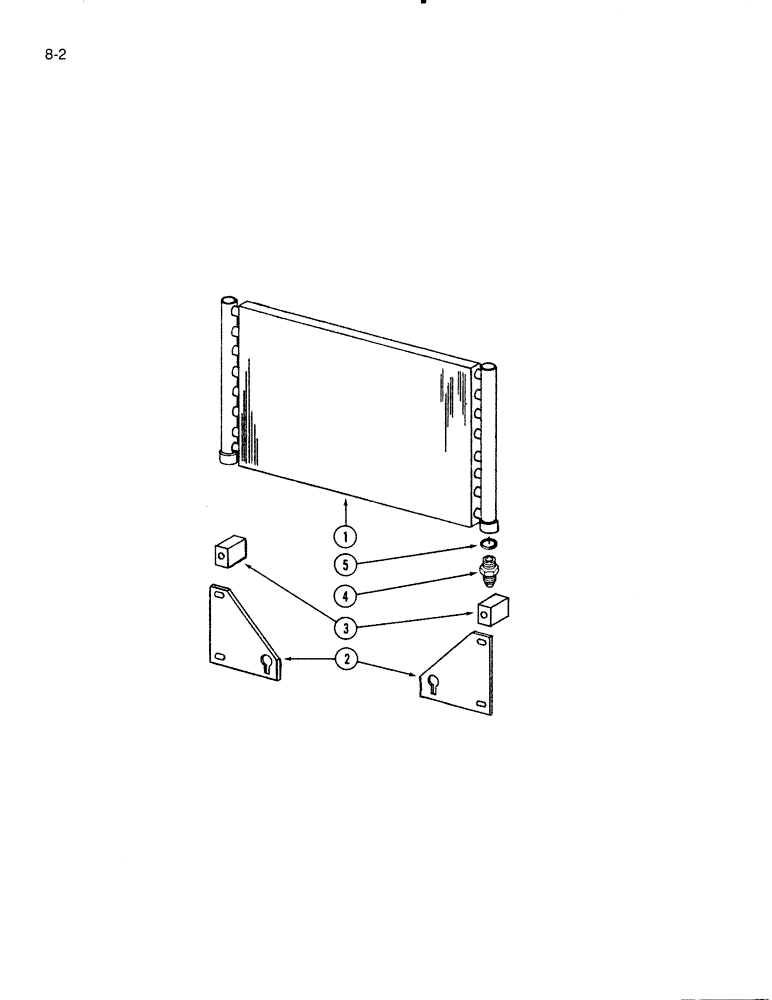

Запчасти Case IH 4000 (8-02) - HYDRAULIC OIL COOLER (08) - HYDRAULICS

1

92450C1

COOLER

- oil (Replaces 828484C1 See Note)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

425-105

NUT,5/16"-18, G5

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

828707C1

SUPPORT

- cooler

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

828830C1

STRIP

- cooler mounting

2шт.

18484R1

BOLT,Short NK, 5/16"-18 x 2 3/4", G2

- round head square neck, 5/16 NC x 2-3/4 inch

2шт.

425-105

NUT,5/16"-18, G5

2шт.

20893R1

WASHER

- flat, 11/32 x 1 x 7/64 inch

4шт.

4

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring

2шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.
