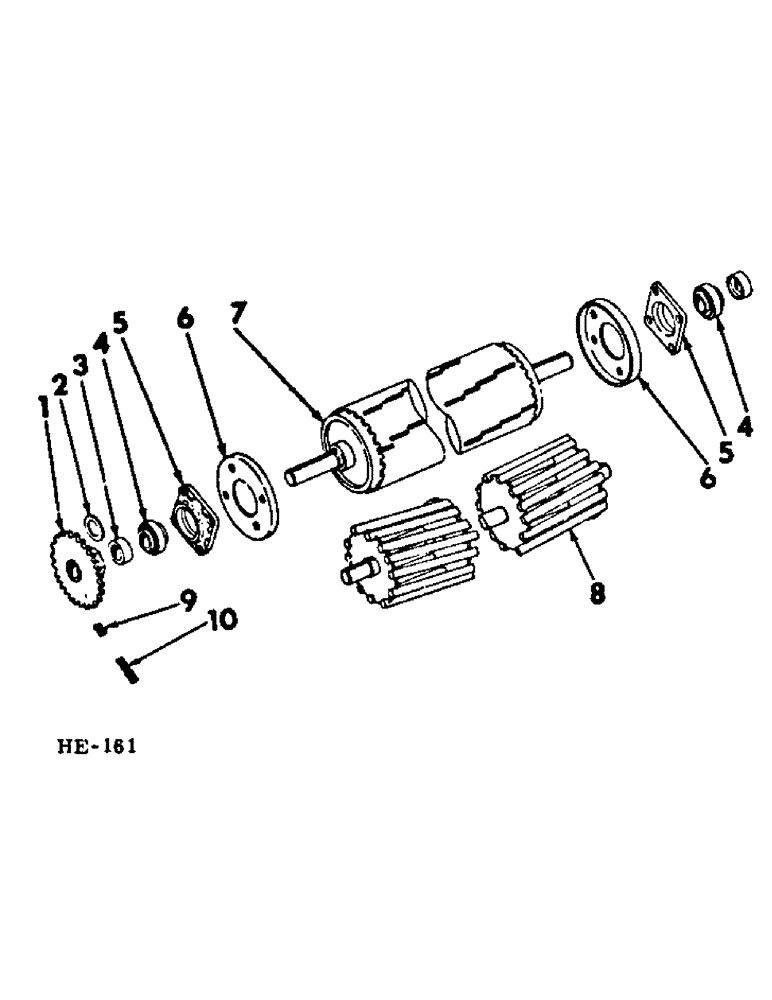

Запчасти Case IH 375 (P-16) - HAY CONDITIONER, LOWER CONDITIONER ROLL Hay Conditioner

1

595927R91

SPROCKET ASSY.

SPROCKET, 29T roll driven

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" tapered gib

1шт.

2

608085R1

WASHER

1-13/32 x 2 x 16 ga driven sprocket

1шт.

3

517645R11

COLLAR

lower roll brg locking (includes 102592, SCREW)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

4

611583R91

BALL BEARING

BEARING, lower roll

2шт.

5

607332R1

HOUSING

lower roll brg

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

6

607333R11

SHROUD, lower roll

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

7

595912R91

ROLL, conditioner rubber (for component parts of this assembly, refer to "CONDITIONER RUBBER ROLL" in section "P" of this parts catalog) (for use on 275 & 375 Windrowers built prior to 1968 season)

1шт.

7

598315R91

ROLL, conditioner rubber (for component parts of this assembly, refer to "CONDITIONER RUBBER ROLL" in section "P" of this parts catalog) (for use on 275 & 375 Windrowers built 1968 season & since)

1шт.

8

596401R1

ROLL, conditioner steel bar (for use on 275 & 375 Windrowers built 1968 season & since)

1шт.

9

574532R91

CLIP, SPRING

LINK, drive chain connecting

1шт.

10

CHAIN, 3/4" pitch standard conditioner drive (for service order 1 - 611362R91, 10 ft chain, reduce to 149 links and add 1 - 574532R91, connecting link)

1шт.
