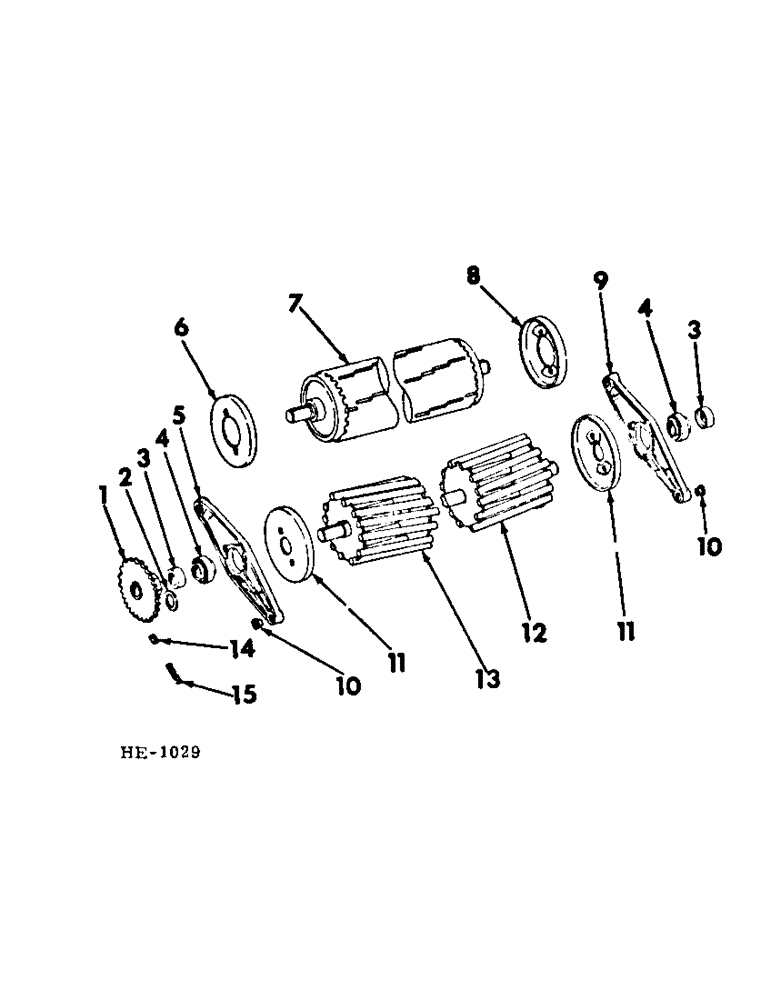

Запчасти Case IH 375 (P-15) - HAY CONDITIONER, UPPER CONDITIONER ROLL Hay Conditioner

1

595927R91

SPROCKET ASSY.

SPROCKET, 29T roll driven

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" sq-hd tapered gib

1шт.

2

608085R1

WASHER

1-13/32 x 2 x 16 ga driven sprocket

1шт.

3

517645R11

COLLAR

upper roll brg locking (includes 102592, SCREW)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

4

611583R91

BALL BEARING

BEARING, upper roll

2шт.

5

595918R1

HOUSING, upper roll brg LH

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8" - 90 degree elbow lub

2шт.

593295R1

BOLT

roll brg housing stop

1шт.

21434R1

NUT,5/8"-11, G8

5/8" type 8

1шт.

6

593312R11

SHROUD, upper roll (for use w/rubber conditioner roll) (for use on machines built prior to 1963 season)

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

596425R1

SHROUD, upper roll LH (for use on machines built 1968 season & since)

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

598315R91

ROLL, conditioner rubber (for component parts of this assembly, refer to "CONDITIONER RUBBER ROLL" in section "P" of this parts catalog)

1шт.

8

593312R11

SHROUD, upper roll (for use w/rubber conditioner roll) (for use on machines built prior to 1968 season)

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

596426R1

SHROUD, upper roll RH (for use on machines built 1968 season & since)

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

595919R1

HOUSING

upper roll brg RH

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8" - 90 degree elbow lub

2шт.

593295R1

BOLT

roll brg housing stop

1шт.

21434R1

NUT,5/8"-11, G8

5/8" type 8

1шт.

10

612369R1

BUSHING

upper roll brg housing pivot

2шт.

598821R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

BOLT, 5/8 x 2-3/4"

2шт.

443343

LK-NUT, 5/8" type "HL"

2шт.

21908R1

WASHER, 21/32 sq-hole x 1-3/4 x 12 ga

2шт.

Q226

WASHER, 21/32 sq-hole x 1-1/2 x 14 ga

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

11

593313R11

SHROUD

upper roll (for use w/chevron bar conditioner roll) (for use on machines built prior to 1968 season)

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

ROLL, conditioner chevron bar (for service on dual auger platform machine built prior to 1968 season, order 1 - 596401R1, STEEL BAR ROLL; 1 - 596425R1, SHROUD & 1 - 596426R1, SHROUD)

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

596401R1

ROLL, conditioner steel bar

1шт.

14

574532R91

CLIP, SPRING

LINK, drive chain connecting

1шт.

15

CHAIN, 3/4" pitch standard conditioner drive (for service order 1 - 611362R91, 10 ft chain, reduce to 149 links and add 1 - 574532R91, connecting link)

1шт.
