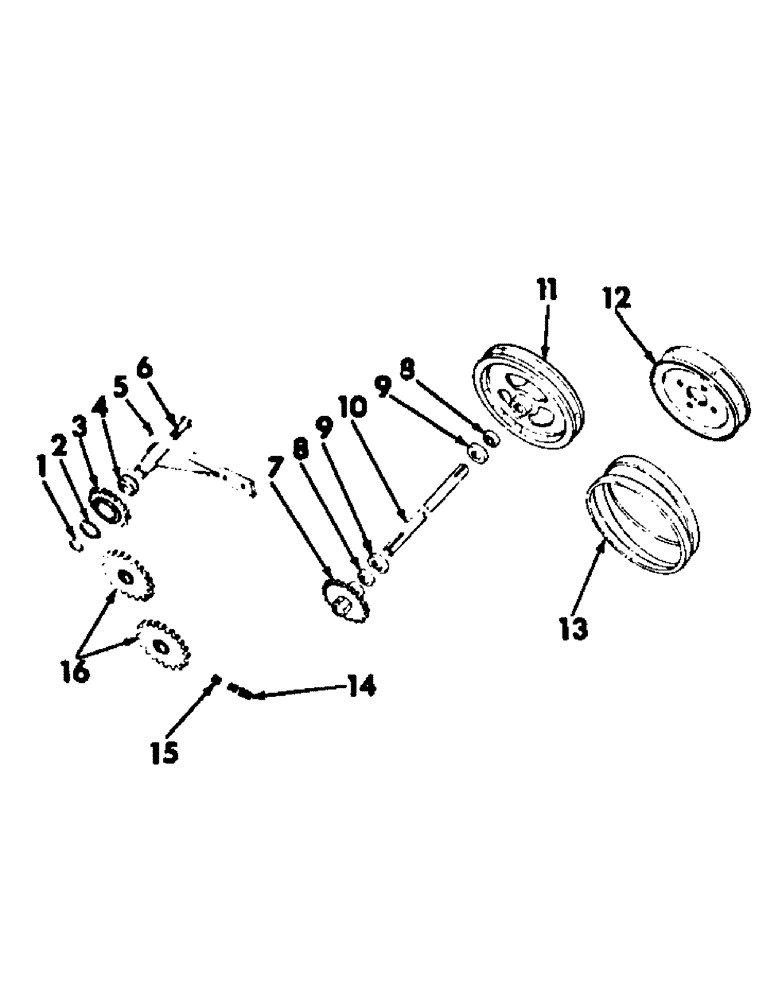

Запчасти Case IH 375 (P-14) - HAY CONDITIONER, ROLL DRIVE Hay Conditioner

1

26540D

RING, SNAP

RING, brg retaining

1шт.

2

512889R1

RING

brg retaining

1шт.

3

593323R11

SPROCKET ASSY.

SPROCKET, idler

1шт.

4

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, idler sprocket

1шт.

5

595923R91

BRACKET, idler sprocket

1шт.

271789

CURTAIN,Hex, 3/4" - 16 x 1 1/2", Gr 5

3/4 - NF x 1-1/2"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

6

659961R1

BOLT, 1/2 x 5" special idler sprocket bracket tightener

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

7

593319R11

SPROCKET, countershaft driven (for use on machines built prior to 1968 season)

1шт.

581307R1

KEY,5/16" Sq x 2 3/4", Par

5/16 x 5/16 x 2-3/4" sq

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

7

596430R1

SPROCKET, countershaft driven (for use on machines built 1968 season & since)

1шт.

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2" tapered gib

1шт.

8

557117R11

COLLAR

COLLAR, countershaft brg locking (includes 115321, SCREW)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

9

566632R91

BALL BEARING

countershaft

2шт.

10

595922R1

SHAFT, conditioner drive counter (for use on machines built prior to 1968 season)

1шт.

10

596429R1

SHAFT, conditioner drive counter (for use on machines built 1968 & 1969 season)

1шт.

10

825171C1

SHAFT, conditioner drive counter (for use on machines built 1970 season & since)

1шт.

11

595920R1

PULLEY, countershaft drive (for use on machines built prior to 1968 season)

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

581307R1

KEY,5/16" Sq x 2 3/4", Par

5/16 x 5/16 x 2-3/4"

1шт.

11

596428R1

PULLEY

countershaft drive (for use on machines built 1968 season) (for service of 596428R1, PULLEY, order 1 - 825170C1, PULLEY; 1 - 825171C1, SHAFT & 1 - Q3954, KEY)

1шт.

11

825170C1

PULLEY, countershaft drive (for use on machines built 1970 season & since)

1шт.

Q3954

KEY,Gib, 3/8" Sq x 3 1/4"

3/8 x 3-1/4" gib-hd

1шт.

12

595622R11

PULLEY

platform countershaft main drive

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

595921R1

V-BELT,1.26" W x 86.88" L

Hay conditioner drive 1.26" W x 86.88" L

1шт.

14

CHAIN, 3/4" pitch standard hay conditioner drive (for service order 1 - 611362R91, 10 ft chain, reduce to 149 links and add 1 - 574532R91, connecting link)

1шт.

15

574532R91

CLIP, SPRING

LINK, drive chain connecting

1шт.

16

595927R91

SPROCKET ASSY.

SPROCKET, roll driven

2шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" sq-hd tapered gib

2шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga

1шт.
