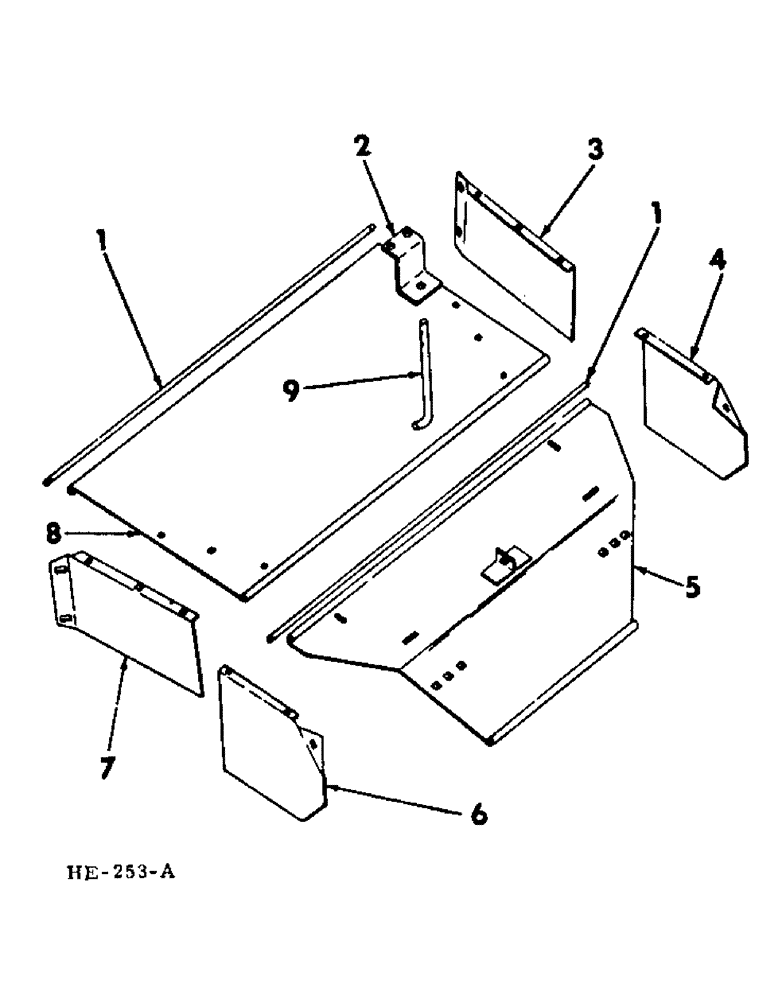

Запчасти Case IH 375 (P-13) - HAY CONDITIONER, CONDITIONER SHIELDS AND DEFLECTOR Hay Conditioner

1

595951R1

ROD

upper deflector

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

2

595994R1

BRACKET, deflector shield adjusting rod (375 Windrower)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

595958R2

SHIELD, upper deflector side RH

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16 x 1/2" crg

3шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

4

595954R1

SHIELD

side deflector RH

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16 x 1/2" crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

595950R21

SHIELD, deflector

1шт.

6

595953R1

SHIELD

side deflector LH

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16 x 1/2" crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

595957R2

SHIELD, upper deflector side LH

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16 x 1/2" crg

3шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

8

595956R1

DEFLECTOR, upper (for use on machines built prior to 1968 season)

1шт.

19428R1

BOLT, 5/16 x 5/8" crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

596433R1

DEFLECTOR, upper (for use on machines built 1968 season & since)

1шт.

9

595952R2

ROD

deflector shield adjusting (275 Windrower)

1шт.

599744R1

AXLE PIN

C-PIN, quick-attachable

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

9

595995R2

ROD, deflector shield adjusting (375 Windrower)

1шт.

599744R1

AXLE PIN

C-PIN, quick-attachable

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.
