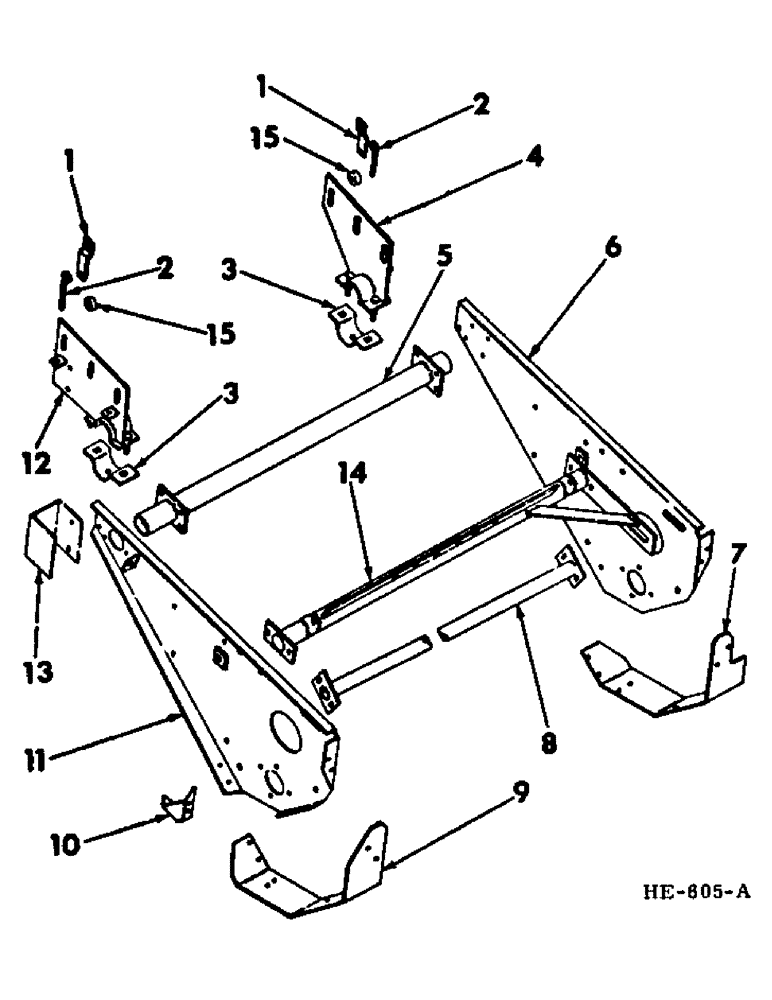

Запчасти Case IH 375 (P-12) - HAY CONDITIONER, MAIN FRAME AND SUPPORTS Hay Conditioner
№
Артикул
Название
Примечание
Количество
1
595895R2
BRACE, adjusting eyebolt
4шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4"
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
2
612375R2
BOLT,1/2" - 13 x 4 1/8"
EYEBOLT, rear support adjusting
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
8шт.
180181
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2 x 2"
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
3
593280R1
CLAMP, frame pivot tube
2шт.
NLS
NO LONGER SERVICED
NUT, 7/16"
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
4
595893R11
SUPPORT, main frame rear LH (for use on machine built prior to 1968 season)
1шт.
4
596414R1
SUPPORT, main frame rear LH (for use on machine built 1968 season & since)
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4"
1шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
5
595896R11
TUBE, conditioner frame pivot (for use on machines built prior to the 1968 season) 2.4416" Diameter, 46.88, 2.56" Length
1шт.
608807R1
BOLT,Short NK, 3/8"-16 x 7/8", G5, Full Thd
3/8 x 7/8"
8шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
5
596417R1
TUBE, conditioner frame pivot (for use on machine built 1968 season & since) 2.4416" Diameter, 46.88, 4.22" Length
1шт.
180145
BOLT,Hex, 7/16" - 14 x 1", Gr 5
7/16 x 1"
8шт.
271501
SOCKET
NUT, 7/16"
8шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
8шт.
6
595898R11
SIDE, conditioner frame LH (for use on machines built prior to 1968 season)
1шт.
6
596420R1
SIDE, conditioner frame LH (for use on machines built 1968 season & since)
1шт.
7
595909R2
SOLE, skid LH
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8 x 1" crg
4шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
3/8 x 7/8"
1шт.
120377
NUT,3/8" - 16, Gr 5
5шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
5шт.
8
595908R91
STRUT, conditioner frame lower
1шт.
598813R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
BOLT, 1/2 x 1" crg
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
9
595910R2
SOLE, skid RH
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8 x 1" crg
4шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
3/8 x 7/8"
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1шт.
120377
NUT,3/8" - 16, Gr 5
5шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
5шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
10
595911R1
ANGLE, skid sole mounting (for use on machines built prior to 1968 season)
2шт.
15002R1
BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd Short NK, 3/8"-16 x 7/8", G2, Full Thd
8шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
11
595899R11
SIDE, conditioner frame RH (for use on machines built prior to 1968 season)
1шт.
11
596421R1
SIDE, conditioner frame RH (for use on machines built 1968 season & since)
1шт.
12
595894R11
SUPPORT, main frame rear RH
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4"
1шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
13
595955R1
SHIELD, main drive
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
14
595901R92
STRUT, conditioner frame upper
1шт.
598813R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
BOLT, 1/2 x 1" crg
1шт.
465567R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
BOLT, 1/2 x 1-1/2" crg
2шт.
606418R1
BOLT
1/2 x 1-3/4" crg
1шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
15
652056R1
WASHER, adjusting eyebolt spacer (for use on machines built prior to 1968 season)
4шт.
Выбрано товаров: 64
