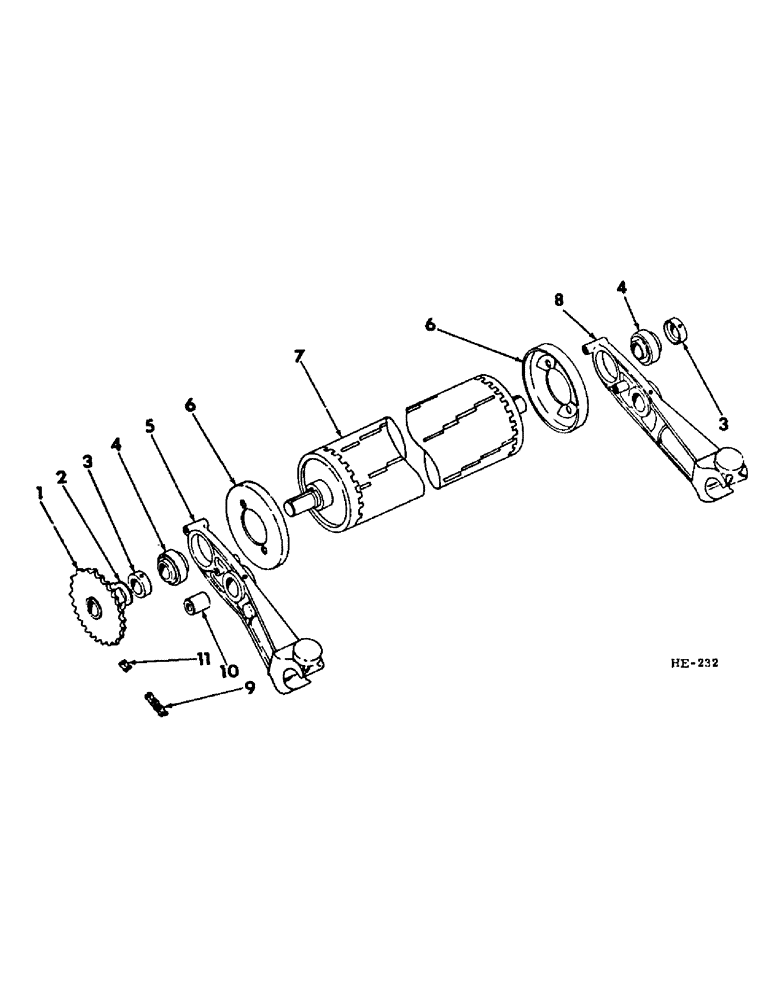

Запчасти Case IH 375 (P-08) - HAY CONDITIONER, UPPER CONDITIONER ROLL Hay Conditioner

1

595927R91

SPROCKET ASSY.

SPROCKET, 29T roll driven

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" tapered gib-hd

1шт.

2

608085R1

WASHER

1-13/32 x 2 x 16 ga driven sprocket

1шт.

3

517645R11

COLLAR

upper roll brg locking (includes 102592, SCREW)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

4

611583R91

BALL BEARING

BEARING, upper roll

2шт.

5

596184R1

HOUSING

upper roll brg LH

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8" - 45 degree elbow lub

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

593312R11

SHROUD, upper roll

2шт.

7

598315R91

ROLL, conditioner rubber (for component parts of this assembly, refer to "CONDITIONER RUBBER ROLL" in section "F" of this parts catalog)

1шт.

8

596185R1

HOUSING, upper roll brg RH

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8" - 45 degree elbow lub

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

CHAIN, 3/4" pitch standard conditioner drive (for service order 1 - 611362R91, 10 ft chain, reduce to 99 links & add 1 - 574532R91, connecting link) (prior to 1971 season)

1шт.

9

CHAIN, 3/4" pitch conditioner drive (for service order 1 - 611362R91, 10 ft chain, reduce to 101 links, add 1 - 612612R91, offset LINK & 1 - 574532R91, connecting LINK) (1971 season & since)

1шт.

10

596186R1

BUSHING

upper roll brg housing pivot

2шт.

608337R1

CARRIAGE BOLT,5/8" - 11 x 3", Grade 5

BOLT, 5/8 x 3" crg (LH)

1шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8 x 3-1/4" crg (RH)

1шт.

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

21/32 sq-hole x 1-1/2 x 12 ga

2шт.

443343

LK-NUT, 5/8" type "HL"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

574532R91

CLIP, SPRING

LINK, conditioner drive chain connecting

1шт.
