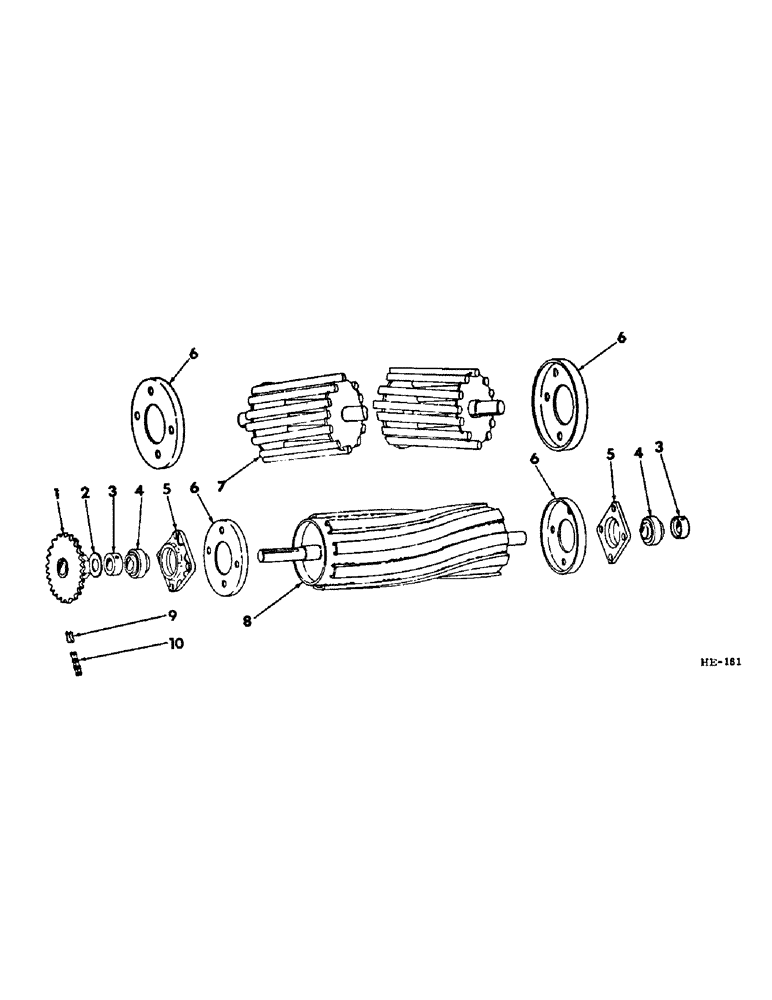

Запчасти Case IH 375 (P-05) - HAY CONDITIONER, LOWER CONDITIONER ROLL Hay Conditioner

1

595927R91

SPROCKET ASSY.

SPROCKET, 29T roll driven

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" tapered gib-hd

1шт.

2

608085R1

WASHER

1-13/32 x 2 x 16 ga driven sprocket

1шт.

3

517645R11

COLLAR

lower roll brg locking (includes 102592, SCREW)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

4

611583R91

BALL BEARING

BEARING, lower roll

2шт.

5

607332R1

HOUSING

lower roll brg

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

6

596183R11

SHROUD, lower roll (prior to 1968 season for use w/chevron bar type roll)

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

6

607333R11

SHROUD, lower roll (1968 season & since for use w/steel channel type roll)

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

7

ROLL, conditioner chevron bar (for service on single auger platform machines built prior to 1968 season, order 1 - 596401R1, STEEL BAR ROLL and 2 - 607333R11, SHROUD)

1шт.

8

596401R1

ROLL, conditioner steel bar (1968 season & since)

1шт.

9

574532R91

CLIP, SPRING

LINK, conditioner drive chain connecting

1шт.

10

CHAIN, 3/4" pitch standard conditioner drive (for service order 1 - 611362R91, 10 ft chain, reduce to 99 links and add 1 - 574532R91, connecting link) (prior to 1971 season)

1шт.

10

CHAIN, 3/4" pitch conditioner drive (for service order 1 - 611362R91, 10 ft chain, reduce to 101 links, add 612612R91, offset LINK & 1 - 574532R91, connecting LINK) (1971 season & since)

1шт.
