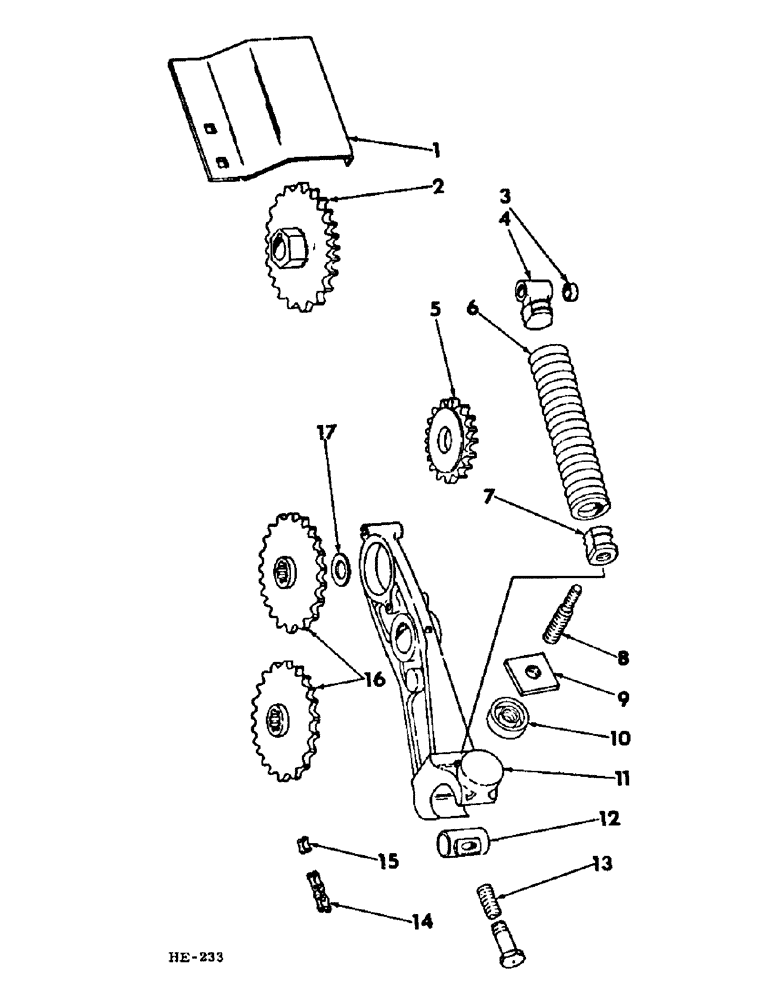

Запчасти Case IH 375 (P-04) - HAY CONDITIONER, HAY CONDITIONER DRIVE Hay Conditioner

1

596276R1

SHIELD, conditioner drive sprocket

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

596196R11

SPROCKET, 27T conditioner drive

1шт.

3

611629R1

SPACER

pressure spg upper plug

2шт.

Q1194

AXLE PIN,1/2" x 3"

PIN, 1/2 x 3" std-hd-dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

4

591544R1

PLUG

roll pressure spg upper

2шт.

Q1194

AXLE PIN,1/2" x 3"

PIN, 1/2 x 3" std-hd-dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

5

607345R11

SPROCKET ASSY.

SPROCKET, 20T drive chain guide

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

596191R1

SPRING

roll pressure

2шт.

7

596192R1

PLUG

roll pressure spg lower

2шт.

8

596190R1

STUD, brg housing stop pad adjusting

2шт.

280954

NUT,3/4"-10, G5

4шт.

9

596189R1

BLOCK, housing stop pad

2шт.

10

596188R91

PAD

upper brg housing stop

2шт.

11

596184R2

HOUSING

upper roll brg LH (shown)

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8" - 45 degree elbow lub

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

596185R1

HOUSING, upper roll brg RH

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8" - 45 degree elbow lub

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

596193R1

PIN

roll pressure spg pivot

2шт.

13

461723R1

BOLT,5/8" - 11 x 6", Grade 5

5/8 x 6" special pressure spg lower plug

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

4шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8" jam

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

CHAIN, 3/4" pitch standard conditioner drive (for service order 1 - 611362R91, 10 ft chain, reduce to 99 links & add 1 - 547532R91, connecting link)

1шт.

15

574532R91

CLIP, SPRING

LINK, conditioner drive chain connecting

1шт.

16

595927R91

SPROCKET ASSY.

SPROCKET, 29T roll driven

2шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" sq-hd tapered gib

2шт.

17

608085R1

WASHER

1-13/32 x 2 x 16 ga

1шт.
