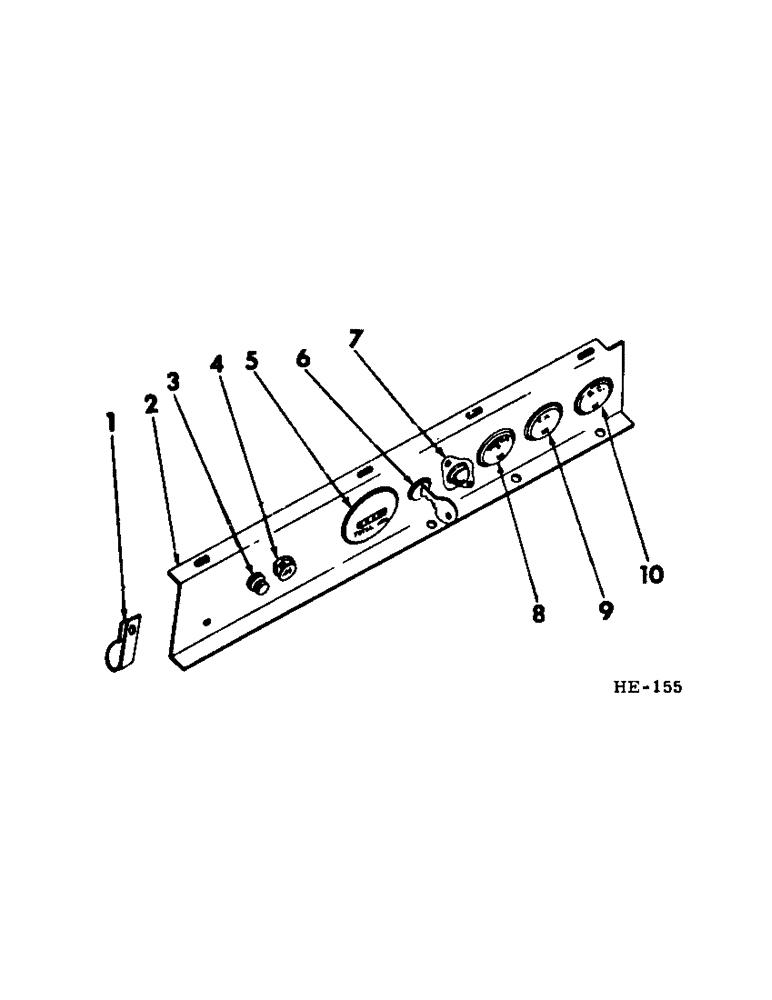

Запчасти Case IH 375 (H-22) - CONTROLS, INSTRUMENT PANEL Controls

1

105249

CLAMP, electrical harness

1шт.

180016

SPRING

1/4 x 1/2"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

595501R11

PANEL, instrument

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

592700R91

HOLDER

safety light fuse

1шт.

432644

FUSE,20 Amp, Type SFE

20 amp type AGC

1шт.

For service on 275 Windrower, order 1 - 827143C91 PULLEY, for service on 375 Windrower, order 1 - 827142C91 PULLEY

1шт.

4

62801DC

SWITCH

light

1шт.

5

621657C91

HOURMETER, panel (for component parts of this assembly refer to "HOURMETER" in section "H" of this parts catalog)

1шт.

6

403562R2

SWITCH

key ignition (for component parts of this assembly refer to "KEY IGNITION SWITCH" in section "G" of this parts catalog)

1шт.

For service on 275 Windrower, order 1 - 827143C91 PULLEY, for service on 375 Windrower, order 1 - 827142C91 PULLEY

1шт.

7

366317R91

IGNITION SWITCH

BUTTON, engine starting

1шт.

132903

ADAPTER

SCREW, No. 10 x 7/16" slt-rd-hd

2шт.

120611

NUT,#10 - 32

No. 10 sq

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

8

259347R91

GAUGE

temperature indicator (for component parts of this assembly refer to "WATER TEMPERATURE GAUGE" in section "H" of this parts catalog)

1шт.

9

362039R91

GAUGE

oil pressure (opt w/393488R91)

1шт.

For service on 275 Windrower, order 1 - 827143C91 PULLEY, for service on 375 Windrower, order 1 - 827142C91 PULLEY

1шт.

9

393488R91

SWITCH

GAUGE, oil pressure (for component parts of this assembly refer to "OIL PRESSURE GAUGE" in section "H" of this parts catalog)

1шт.

10

154818C91

GAUGE ASSY.

AMMETER, battery

1шт.
