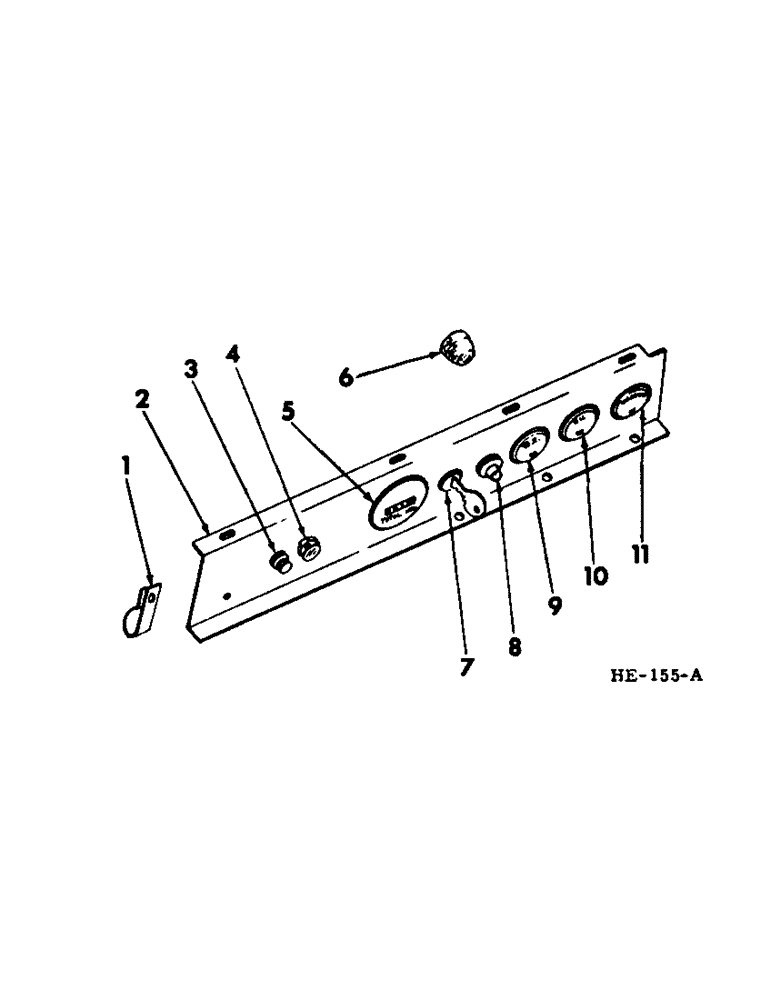

Запчасти Case IH 375 (H-22[A]) - CONTROLS, INSTRUMENT PANEL Controls

1

101981R1

CLIP

CLAMP, electrical harness

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4 x 1/2"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

596495R2

PANEL, instrument

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

592700R91

HOLDER

safety light fuse

1шт.

432644

FUSE,20 Amp, Type SFE

20 amp type AGC

1шт.

4

62801DC

SWITCH

light

1шт.

5

621657C91

HOURMETER, panel (for component parts of this assembly refer to "HOURMETER" in section "H" of this parts catalog)

1шт.

6

373612R1

CAP

starter button

1шт.

7

403562R2

SWITCH

key ignition (for component parts of this assembly refer to "KEY IGNITION SWITCH" in section "G" of this parts catalog)

1шт.

8

393209R91

SWITCH

BUTTON, engine starter

1шт.

9

154818C91

GAUGE ASSY.

AMMETER, battery

1шт.

10

393488R91

SWITCH

GAUGE, oil pressure (opt to use 1 - 362039R94, GAUGE)

1шт.

10

362039R94

GAUGE

oil pressure (opt to use 1 - 393488R91, GAUGE) (for component parts of this assemblies refer to "OIL PRESSURE GAUGE" in section "H" of this parts catalog)

1шт.

11

259347R91

GAUGE

temperature indicator (for component parts of this assembly refer to "WATER TEMPERATURE GAUGE" in section "H" of this parts catalog)

1шт.
