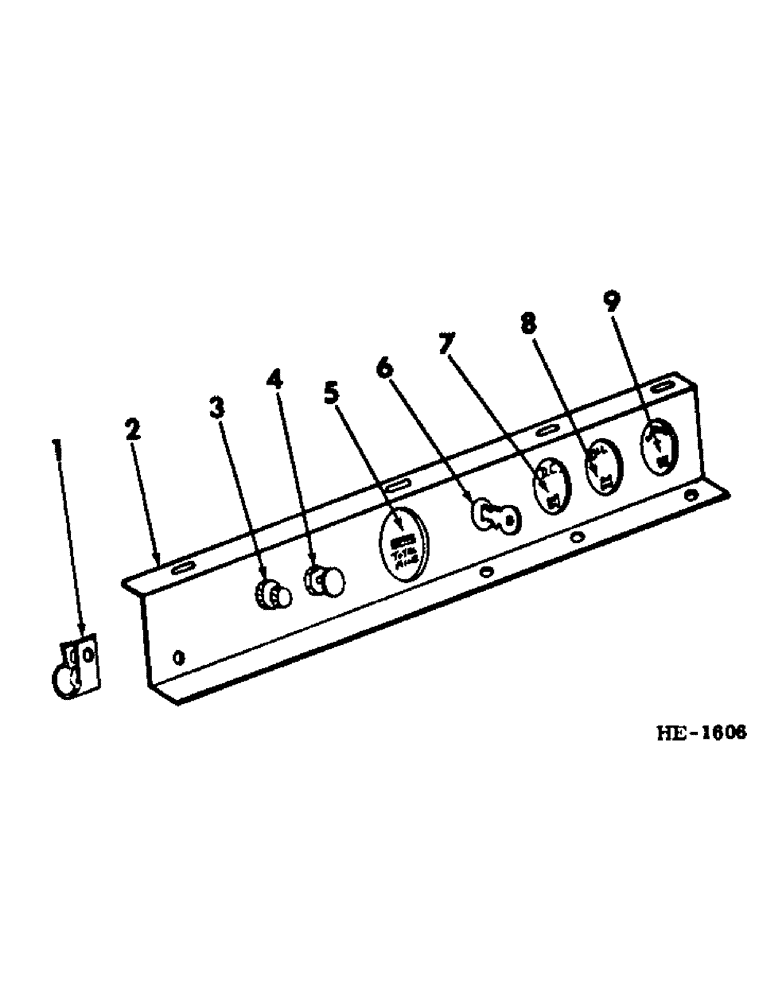

Запчасти Case IH 375 (H-21) - CONTROLS, INSTRUMENT PANEL Controls

1

101981R1

CLIP

CLAMP, electrical harness

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4 x 1/2"

1шт.

120275

NUT, 1/4"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

596495R2

PANEL, instrument

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

592700R91

HOLDER

safety light fuse

1шт.

432644

FUSE,20 Amp, Type SFE

20 amp type AGC

1шт.

4

62801DC

SWITCH

light

1шт.

5

621657C91

HOURMETER, panel (for component parts of this assembly refer to "HOURMETER" in section "H" of this parts catalog)

1шт.

6

403562R2

SWITCH

key ignition (for component parts of this assembly refer to "KEY IGNITION SWITCH" in section "G" of this parts catalog)

1шт.

7

154818C91

GAUGE ASSY.

AMMETER, battery

1шт.

8

393488R91

SWITCH

GAUGE, oil pressure (opt to use 1 - 362039R94, GAUGE)

1шт.

8

362039R94

GAUGE

oil pressure (opt to use 1 - 393488R91, GAUGE) (for component parts of these assemblies refer to "OIL PRESSURE GAUGE" in section "H" of this parts catalog)

1шт.

9

597822R1

GAUGE, temperature indicator (for component parts of this assembly refer to "WATER TEMPERATURE GAUGE" in section "H" of this parts catalog)

1шт.
