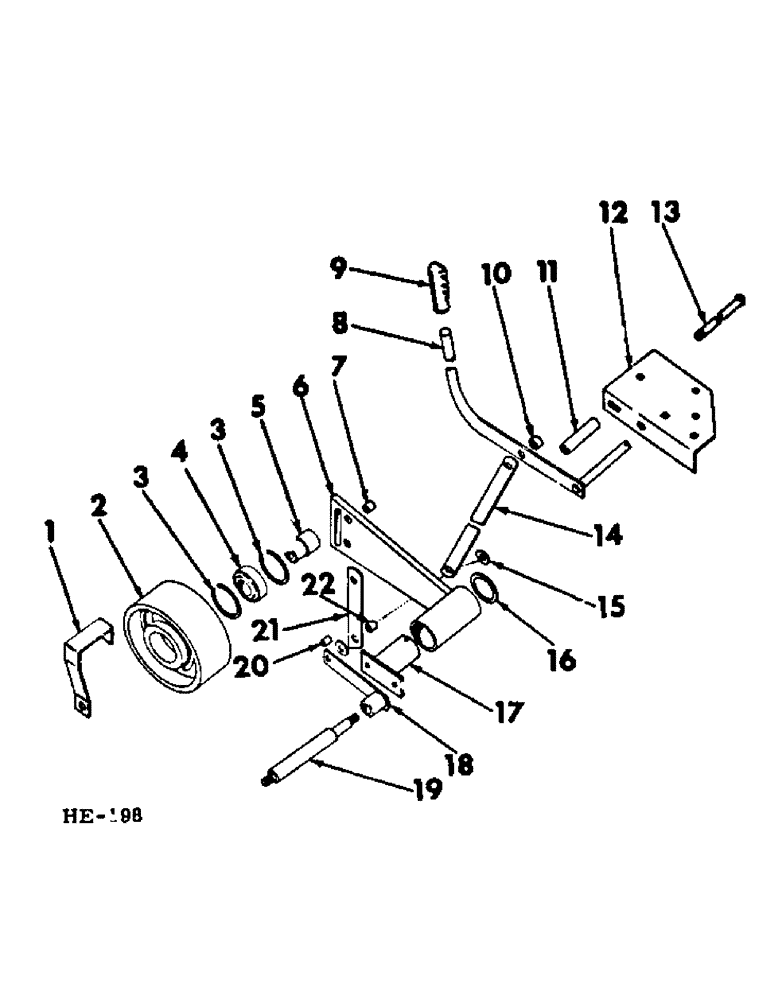

Запчасти Case IH 375 (H-20) - CONTROLS, PLATFORM DRIVE CONTROL Controls

1

595378R1

GUARD, drive belt idler pulley belt retainer (for use on 275 Windrower built prior to machine serial No. 2275) (for use on 375 Windrower built prior to machine serial No. 598)

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

1

811185C1

GUARD, drive belt idler pulley belt retainer (for use on 275 Windrower built w/machine serial No. 2275 & since) (for use on 375 Windrower built w/machine serial No. 598 & since)

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

823202C91

PULLEY

main counter shaft drive belt idler

1шт.

For service on 275 Windrower, order 1 - 827143C91 PULLEY, for service on 375 Windrower, order 1 - 827142C91 PULLEY

1шт.

2

827143C91

PULLEY

main counter shaft drive belt idler (for use on 275 Windrower, built w/machine serial No. & since) (for use on 375 Windrower, built w/machine serial No. & since), Start Serial: 2275

1шт.

464623R1

WASHER

2шт.

2

827143C91

PULLEY

main counter shaft drive belt idler (for use on 375 Windrower built prior to machine serial No. 2275) (for use on 375 Windrower built prior to machine serial No. 598) (Replaces 595186R1), Start Serial: 598

1шт.

464623R1

WASHER

2шт.

3

512889R1

RING

drive belt idler pulley brg retaining (for use on 275 Windrower built prior to machine serial No. 2275) (for use on 375 Windrower built prior to machine serial No. 598)

2шт.

4

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, drive belt idler pulley (opt w/608697R91, BEARING) (for use on 275 Windrower built prior to machine serial No. 2275) (for use one 375 Windrower built prior to machine serial No. 598)

1шт.

4

608697R91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9892"

drive belt idler pulley (opt w/584148R91, BEARING) (for use on 275 Windrower built prior to machine serial No. 2275) (for use on 375 Windrower built prior to machine serial No. 598)

1шт.

5

595187R1

BUSHING, drive belt idler pulley (for use on 275 Windrower built prior to machine serial No. 2275) (for use on 375 Windrower built prior to machine serial No. 598)

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 x 3-3/4"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

258344R1

SPACER, drive belt idler pulley (for use on 275 Windrower built w/machine serial No. 2275 & since) (for use on 375 Windrower built w/machine serial No. 598 & since)

1шт.

6

595375R91

ARM, main counter shaft drive belt idler

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

595366R1

BUSHING

drive belt idler arm

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

596323R21

LEVER, drive control

1шт.

464623R1

WASHER

.656 x 1.500 x 1.500

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

9

595231R1

GRIP, platform drive control lever handle

1шт.

10

595365R1

BUSHING, drive control bar upper

1шт.

11

795203R1

SPACER, drive belt upper guide

1шт.

12

595363R1

CHANNEL, control lever support

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

13

18690R1

BOLT,Short NK, 3/8"-16 x 5", G2

3/8 x 5" type 1 crg upper guide spacer

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

595364R1

BAR, platform drive control

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

16

Q3493

WASHER, 29/32 x 3 x 14 ga (375 Windrower)

1шт.

17

595373R91

PIVOT, idler support (375 Windrower)

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

2шт.

22188R1

WASHER

2-9/32 x 3 x 14 ga

1шт.

103426

ELBOW,1/4" x 3"

Split (Cotter), 1/4" x 3"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

18

595367R91

ARM, platform drive control lower

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

19

595371R1

SHAFT, drive control lower arm support

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

595366R1

BUSHING

drive control bar lower

1шт.

21

595372R1

BAR, platform drive control upper arm

1шт.

22

510452R1

SPACER,3/8" Pipe x 3 3/4"

lower guide

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8 x 4-1/2"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
