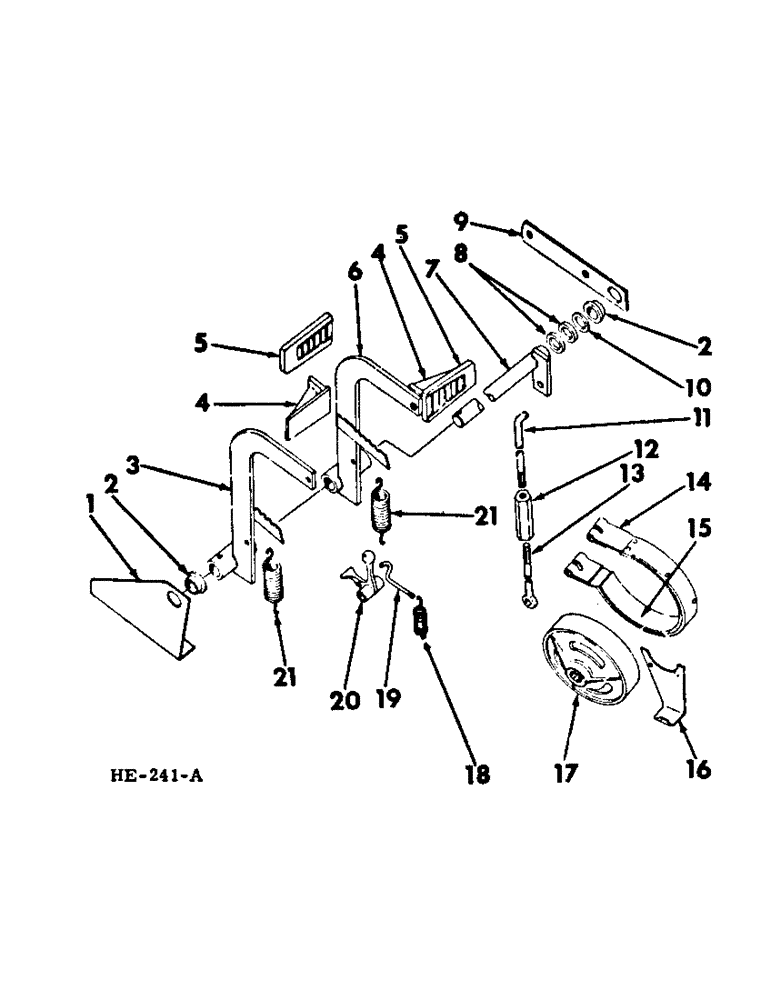

Запчасти Case IH 375 (H-19) - CONTROLS, BRAKE CONTROL Controls

1

595273R11

SUPPORT, brake control rockshaft center (includes 1 - 595252R1, BUSHING)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

595252R1

BUSHING

rockshaft support

3шт.

3

595268R91

ARM, brake control LH

1шт.

19424R1

PIN,3/8" x 1 1/2", Coiled

1шт.

4

593873R1

PEDAL

brake

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

863426R1

PAD

brake pedal

2шт.

6

595269R91

ARM, brake control RH

1шт.

271293

PULLEY

FITTING, 5/16" - NF lub

1шт.

19424R1

PIN,3/8" x 1 1/2", Coiled

1шт.

7

595278R11

ROCKSHAFT, brake control LH

1шт.

7

595279R11

ROCKSHAFT, brake control RH

1шт.

8

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga control rockshaft RH

2шт.

9

595274R11

SUPPORT, brake control rockshaft outer (includes 1 - 595252R1, BUSHING)

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

10

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga control rockshaft RH

1шт.

11

596379R1

ROD, brake control linkage upper

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

12

613596R1

TURNBUCKLE, brake control linkage

2шт.

13

596380R1

BOLT, brake control linkage lower

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

Q3536

PIN

3/8 x 2-3/8" st-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

14

595299R93

BAND

BANK, wheel brake (includes 1 - 591951R12, LINING PACKAGE)

2шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1-25/32" rod-end-dld

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

15

591951R12

PADDING

PACKAGE, brake band lining service (includes 4 - 21406H & 8 - 53795V, RIVETS)

2шт.

21406H

RIVET,Csk Hd, 3/16" x 3/8"

3/16 x 3/8" csk-hd tubular brass

8шт.

53795V

RIVET,Csk Hd, 3/16" x 5/16"

3/16 x 5/16" csk-hd tubular brass

16шт.

16

595210R1

GUARD, brake band reinforcement

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

17

595211R1

DRUM, brake

2шт.

758318C1

SNAP RING,#98, Ext

Ring, Snap, , drum #98, Ext

2шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga

1шт.

18

EA66

SPRING, lock pawl tightener

1шт.

U5357

HEADED PIN,3/8" x 2 5/8"

PIN, 3/8 x 2-5/8" std-hd-dld

1шт.

364002R1

SPACER,3/8" Pipe x 1"

tightener spg pin

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

19

595243R1

ROD, lock pawl tightener

1шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga

1шт.

NLS

NO LONGER SERVICED

C-PIN, 1/16 x 1/2"

1шт.

20

595242R1

PAWL, brake pedal lk

1шт.

C351

AXLE PIN

PIN, 1/2 x 2-3/8" std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

21

510029R1

SPRING

brake control arm return

2шт.
