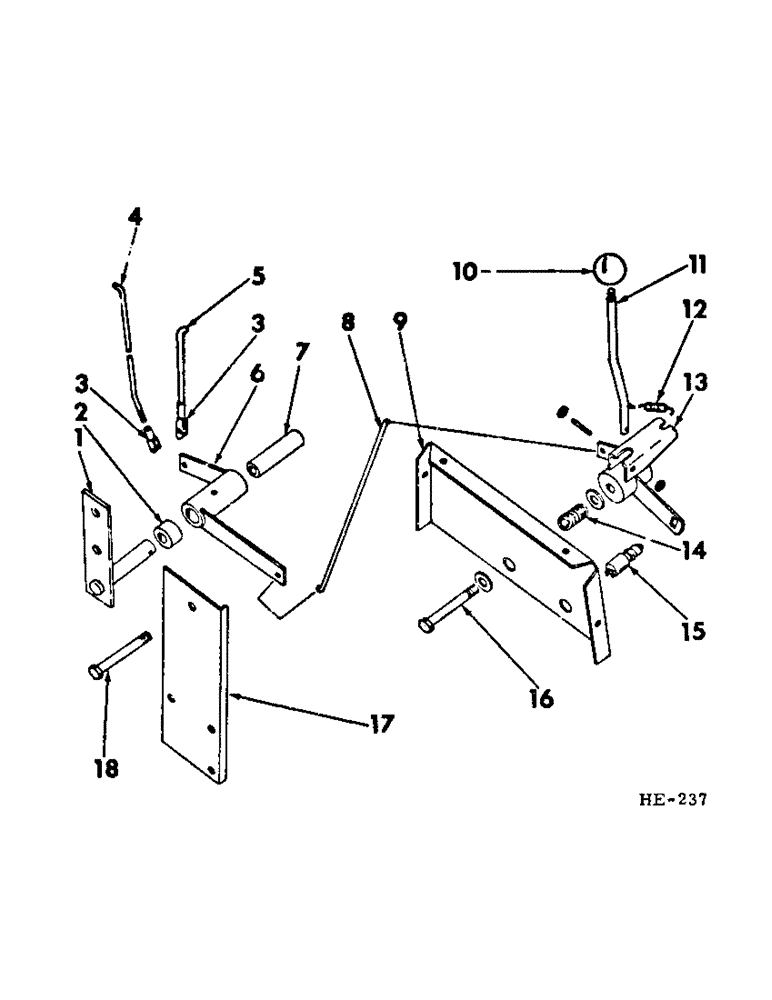

Запчасти Case IH 375 (H-14) - CONTROLS, HYDROSTATIC SPEED CONTROL Controls

1

598001R1

BRACKET, pump control lever (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701)

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

2

559050R1

SPACER, pump control outer pivot (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

3

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

Control rod 1/4"-28 x 2"

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64" rod-end-dld

1шт.

103361

PIN, SPLIT (COTTER)

C-PIN, 1/16 x 1/2"

1шт.

4

598004R1

ROD, hydrostatic pump control (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701)

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

1шт.

NLS

NO LONGER SERVICED

C-PIN, 1/16 x 1/2"

1шт.

4

823722C1

ROD, hydrostatic pump control (for use on 375 Windrower built w/machine serial No. 701 to machine serial No. 1105)

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

1шт.

103361

PIN, SPLIT (COTTER)

C-PIN, 1/16 x 1/2"

1шт.

4

826916C1

ROD, hydrostatic pump control (for use on 375 Windrower built w/machine serial No. 1105 and since)

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

1шт.

NLS

NO LONGER SERVICED

C-PIN, 1/16 x 1/2"

1шт.

5

595341R1

ROD, hydrostatic pump control (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

1шт.

103361

PIN, SPLIT (COTTER)

C-PIN, 1/16 x 1/2"

1шт.

6

595337R91

LEVER, hydrostatic pump control (for use on 375 Windrower built prior to machine serial No. 701)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

6

823747C1

LEVER, hydrostatic pump control (for use on 375 Windrower built w/machine serial No. 701 to serial No. 1105)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

6

826915C1

LEVER, hydrostatic pump control (for use on 375 Windrower built w/machine serial No. 1105 and since)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga

1шт.

7

604531R1

SPACER

pump control lever inner pivot (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

8

595335R1

ROD, speed control linkage (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

2шт.

NLS

NO LONGER SERVICED

C-PIN, 1/16 x 1/2"

2шт.

8

598000R1

ROD, speed control linkage (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701)

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

2шт.

103361

PIN, SPLIT (COTTER)

C-PIN, 1/16 x 1/2"

2шт.

8

823723C1

ROD, speed control linkage (for use on 375 Windrower built w/machine serial No. 701 and since)

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

2шт.

NLS

NO LONGER SERVICED

C-PIN, 1/16 x 1/2"

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

9

595327R2

BRACKET, speed control mounting

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

10

163574C1

KNOB

speed control lever (opt w/610638R1, KNOB)

1шт.

10

610638R1

KNOB

speed control lever (opt w/163574C1, KNOB)

1шт.

11

595328R21

LEVER, speed control

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

352201R2

WASHER, 17/64 x 41/64 x .015" special

2шт.

12

258160R1

SPRING, speed control lever

1шт.

13

595330R91

ARM, speed control pivot

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

28395H

SPRING

speed control pivot arm

1шт.

21013R1

BOLT, 1/2 x 4-1/2" dld

1шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2" slt

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

15

382728R91

SWITCH

safety starting

1шт.

16

21013R1

BOLT, 1/2 x 4-1/2" type 2 dld pivot arm spg

1шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2" slt

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

17

595336R1

REINFORCEMENT, pump control lever (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

18

189348

BOLT

1/2 x 5" type 2 control lever (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
