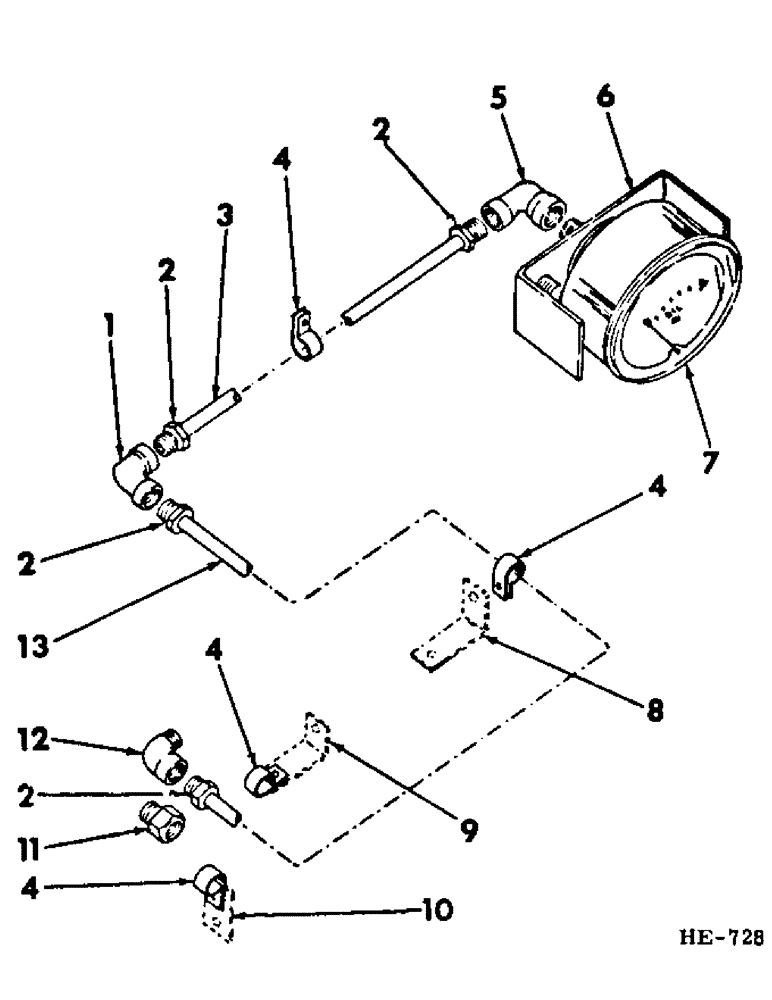

Запчасти Case IH 375 (H-13) - CONTROLS, ENGINE OIL PRESSURE GAUGE, METAL TUBING TYPE Controls

1

255828R1

ELBOW, 1/4" oil pressure tube

1шт.

2

222-502

TUBE NUT,7/16"-24

NUT, 1/4" oil pressure tube

4шт.

3

823231C1

TUBE, oil pressure gauge to engine pressure tube 1" OD, 24.4, 1.5" Length

1шт.

4

140567

CLIP

oil pressure tubes (2 used on 275 Windrower when equipped w/gasoline or diesel engine & on 375 Windrower when equipped w/diesel engine) (3 used on 375 Windrower when equipped w/gasoline engine)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

(375 Windrower w/gasoline engine) Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

67869D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24, Fem

1/4" - 90 degree oil pressure gauge female

1шт.

6

CLAMP, oil pressure gauge (NSS) (for service order 1 - 393488R91, GAUGE OR 1 - 362039R94, GAUGE)

1шт.

7

393488R91

SWITCH

GAUGE, oil pressure (opt to use 1 - 362039R94, GAUGE)

1шт.

7

362039R94

GAUGE

oil pressure (opt to use 1 - 393488R91, GAUGE)

1шт.

8

823352C1

ANGLE, tube clip (for use on 375 Windrower when equipped w/gasoline engine)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

823293C1

ANGLE, tube support (for use on 275 Windrower when equipped w/gasoline engine)

1шт.

10

823353C1

BAR, tube clip (for use on 375 Windrower when equipped w/gasoline engine)

1шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2 x 3/4"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

11

29901D

HYD CONNECTOR,1/8" NPT x 7/16"-24

CONNECTOR, 1/4" male engine crankcase (for use on 275 & 375 Windrower when equipped w/gasoline engine)

1шт.

12

30402D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

1/4" to 1/8" engine crankcase block (for use on 275 & 375 Windrower when equipped w/diesel engine)

1шт.

12

105422

ELBOW UNION

ELBOW, 90 degree engine crankcase block (for use on 375 Windrower when equipped w/gasoline engine)

1шт.

13

823232C1

TUBE, oil pressure tube to engine crankcase (for use on 275 Windrower when equipped w/gasoline engine)

1шт.

13

823350C1

TUBE, oil pressure tube to engine crankcase (for use on 375 Windrower when equipped w/gasoline engine)

1шт.

13

823236C1

TUBE, oil pressure tube to engine crankcase (for use on 275 & 375 Windrower when equipped w/diesel engine)

1шт.
