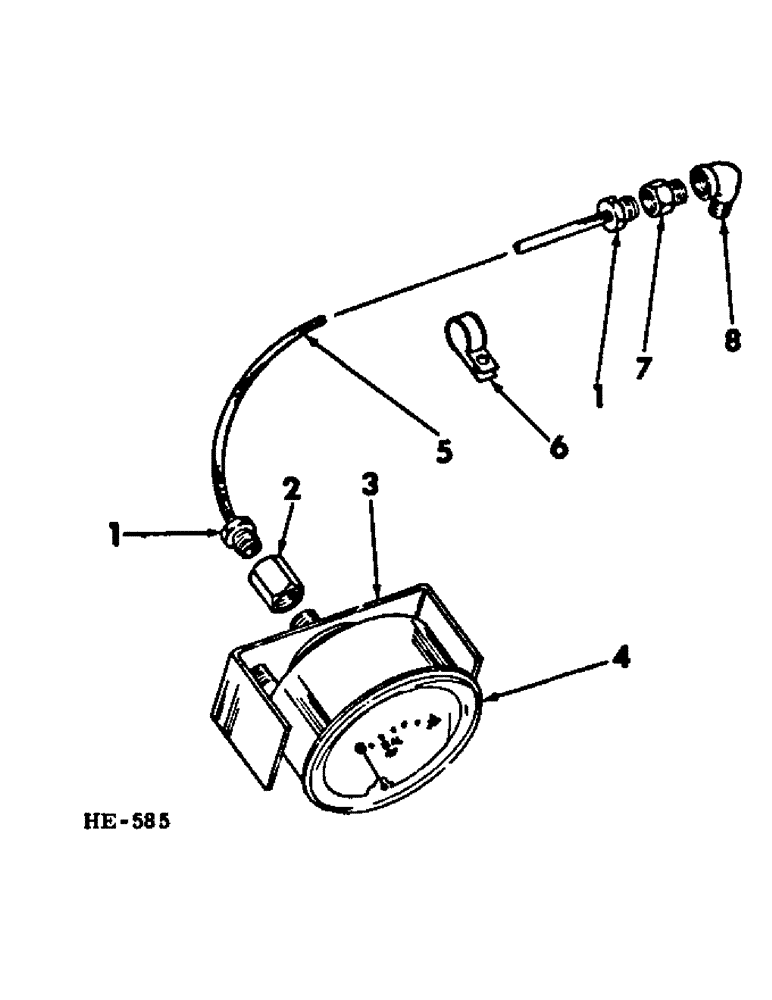

Запчасти Case IH 375 (H-09) - CONTROLS, ENGINE OIL PRESSURE GAUGE, NYLON TUBING TYPE Controls

1

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 1/8" for 1/8" O.D. tubing (for use on 275 Windrower when equipped w/gasoline engine built prior to machine serial No. 1501) (for use on 375 Windrower when equipped w/gasoline engine built prior to machine serial No. 201)

2шт.

1

222-502

TUBE NUT,7/16"-24

2шт.

NUT, 1/4" for 1/4" O.D. tubing (for use on 275 Windrower when equipped w/gasoline or diesel engine built w/machine serial No. 1501 to machine serial No. 2101) (for use on 375 Windrower when equipped w/gasoline or diesel engine built w/machine serial No. 201 to machine serial No. 451)

1шт.

2

19715R1

HYD CONNECTOR,Fem, 5/16"-24

CONNECTOR, 1/8" for 1/8" O.D. tubing pressure gauge female (for use on 275 Windrower when equipped w/gasoline engine built w/machine serial No. 1501) (for use on 375 Windrower when equipped w/gasoline engine built prior to machine serial No. 201)

1шт.

2

257523R1

HYD CONNECTOR,1/8" NPT x 7/16" - 16 ORB

1шт.

CONNECTOR, 1/4" for 1/4" O.D. tubing pressure gauge female (for use on 275 Windrower when equipped w/gasoline or diesel engine built w/machine serial No. 1501 to machine serial No. 2101) (for use on 375 Windrower when equipped w/gasoline or diesel engine built w/machine serial No. 201 to machine serial No. 451)

1шт.

3

CLAMP, pressure gauge mounting (NSS) (for service order 1 - 393488R91 OR 1 - 362039R94, oil pressure GAUGE)

1шт.

4

393488R91

SWITCH

GAUGE, oil pressure (opt to use 1 - 362039R94, GAUGE)

1шт.

4

362039R94

GAUGE

oil pressure (opt to use 1 - 393488R91, GAUGE)

1шт.

TUBING, 1/8" O.D. nylon engine block to pressure gauge 62" in length (for use on 275 Windrower when equipped w/gasoline engine built prior to machine serial No. 1501, order 62" length of 1/4" O.D. nylon tubing from bulk stock part number 608497R1, plus 2 - 29898D, NUT; 1 - 29901D, CONNECTOR & 1 - 257523R1, CONNECTOR)

1шт.

TUBING, 1/8" O.D. nylon engine block to pressure gauge 62" in length (for use on 375 Windrower when equipped w/gasoline engine built prior to machine serial No. 201, order 62" length of 1/4" O.D. nylon tubing from bulk stock part number 608497R1, plus 2 - 29898D, NUT, 1 - 29901D, CONNECTOR & 1 - 257523R1, CONNECTOR)

1шт.

5

TUBING, 1/4" O.D. nylon engine block to pressure gauge 62" in length (for use on 275 Windrower when equipped w/gasoline engine built w/machine serial No. 1501 to machine serial No. 2101) (dealer to supply from bulk stock part number 608497R1)

1шт.

5

TUBING, 1/4" O.D. nylon engine block to pressure gauge 70" in length (for use on 275 Windrower and 375 Windrower when equipped w/diesel engine) (dealer to supply from bulk stock part number 608497R1)

1шт.

5

TUBING, 1/4" O.D. nylon engine block to pressure gauge 78" in length (for use on 375 Windrower, when equipped w/gasoline engine w/machine serial No. 201 to machine serial No. 451) (dealer to supply from bulk stock part number 608497R1)

1шт.

6

140567

CLIP

CLAMP, oil pressure tube No. 4 closed (for use on 275 and 375 Windrower when equipped w/diesel engine)

2шт.

7

59939D

HYD CONNECTOR,1/8" NPT x 5/16"-24

CONNECTOR, 1/8" for 1/8" O.D. tubing engine crankcase male (for use on 275 Windrower when equipped w/gasoline engine built prior to machine serial No. 1501) (for use on 375 Windrower when equipped w/gasoline engine built prior to machine serial No. 201)

1шт.

7

29901D

HYD CONNECTOR,1/8" NPT x 7/16"-24

1шт.

CONNECTOR, 1/4" for 1/4" O.D. tubing engine crankcase male (275 Windrower when equipped w/gasoline or diesel engine built w/machine serial No. 1501 to machine serial No. 2101) (375 Windrower when equipped w/gasoline or diesel engine built w/machine serial No. 201 to machine serial No. 451)

1шт.

8

105422

ELBOW UNION

ELBOW, 1/8" - 90 degree engine crankcase oil pressure tube (375 Windrower when equipped w/gasoline engine built w/machine serial No. 201 to machine serial No. 451)

1шт.
