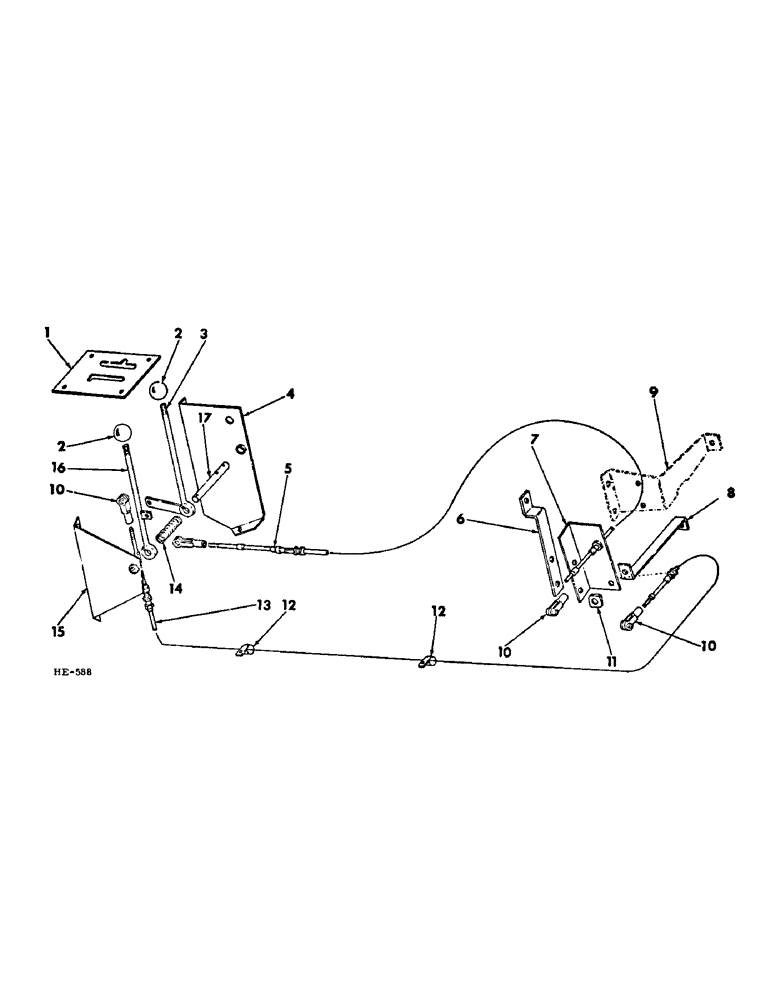

Запчасти Case IH 375 (H-06) - CONTROLS, ENGINE THROTTLE CONTROL Controls

1

597844R1

COVER, throttle control panel

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

595533R1

KNOB, control lever

2шт.

3

597840R1

LEVER, stop & run

1шт.

4

597834R1

SUPPORT, throttle control

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

597842R1

CABLE

throttle control

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

6

597845R1

STRAP, control cable support

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

823291C1

ANGLE, control cable support

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

823290C1

BRACE, cable support angle

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 x 1"

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

SUPPORT, control cable (for service on 275 Windrower built prior to machine serial No. 2101, order 1 - 823290C1, BRACE & 1 - 823291C1, ANGLE) (for service on 375 Windrower built prior to machine serial No. 451, order 1 - 823290C1, BRACE & 1 - 823291C1, ANGLE)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 x 1"

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

NLS

NO LONGER SERVICED

CLEVIS, rod end

4шт.

138082

CLEVIS PIN,3/16" x .580"

PIN, 3/16 x 19/32" rod-end-dld

4шт.

112526

C-PIN, 1/16 x 3/8"

4шт.

11

604355R1

WASHER, special tapered

2шт.

12

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

CLIP, throttle control cable

2шт.

13

597843R1

CABLE

stop & run control

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

14

105414H

SPRING, throttle control

1шт.

15

595525R12

SUPPORT, throttle control outer

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

597837R1

LEVER, throttle control

1шт.

17

597836R1

PIN, throttle control pivot

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

5шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

3шт.
