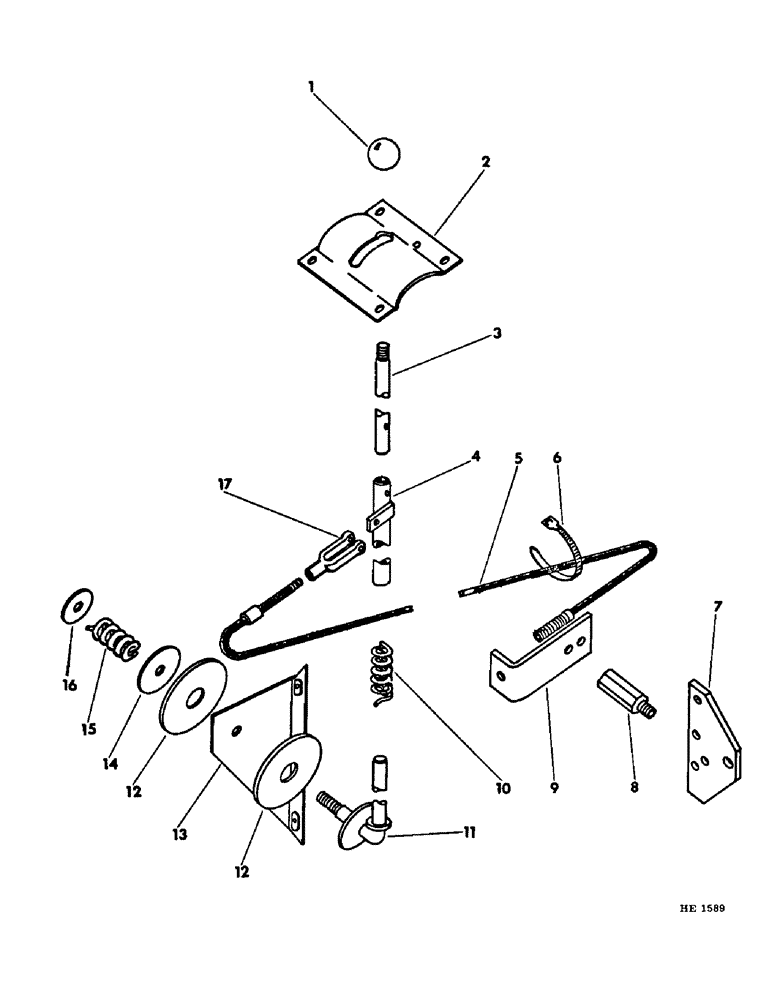

Запчасти Case IH 375 (H-04) - CONTROLS, ENGINE THROTTLE CONTROL Controls

1

610638R1

KNOB

throttle control lever

1шт.

2

827120C1

COVER, throttle control panel

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

827157C1

STUD, throttle control lever

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

4

827155C1

TUBE, throttle control 1.38, 1.06" Length

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

5

597842R1

CABLE

throttle control

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

6

816502C1

STRAP

throttle cable tie

1шт.

7

827000C1

SUPPORT, engine governor

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

LEC271506

SHIM

7/16" - NF

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

8

827098C1

STUD

throttle control cable

1шт.

NLS

NO LONGER SERVICED

7/16" - NF

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

9

827097C1

SUPPORT

throttle control cable

1шт.

10

PO22

SPRING

control tube

1шт.

11

827176C1

ROD, throttle tube pivot

1шт.

22191R1

WASHER

.531 x 1.750 x .164

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2" hex jam

2шт.

12

58666D

FRICTION WASHER

WASHER, pivot rod friction

2шт.

13

827159C1

SUPPORT, throttle control outer

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

T13150

WASHER

.531 x 2.500 x .105

1шт.

15

M1015

SPRING

pivot rod friction

1шт.

16

22191R1

WASHER

.531 x 1.750 x .164 ga

1шт.

17

110322

CLEVIS, rod end adjustable

2шт.

138082

CLEVIS PIN,3/16" x .580"

PIN, 3/16 x 19/32" rod-end-dld

2шт.

NLS

NO LONGER SERVICED

C-PIN, 1/16 x 1/2"

2шт.
