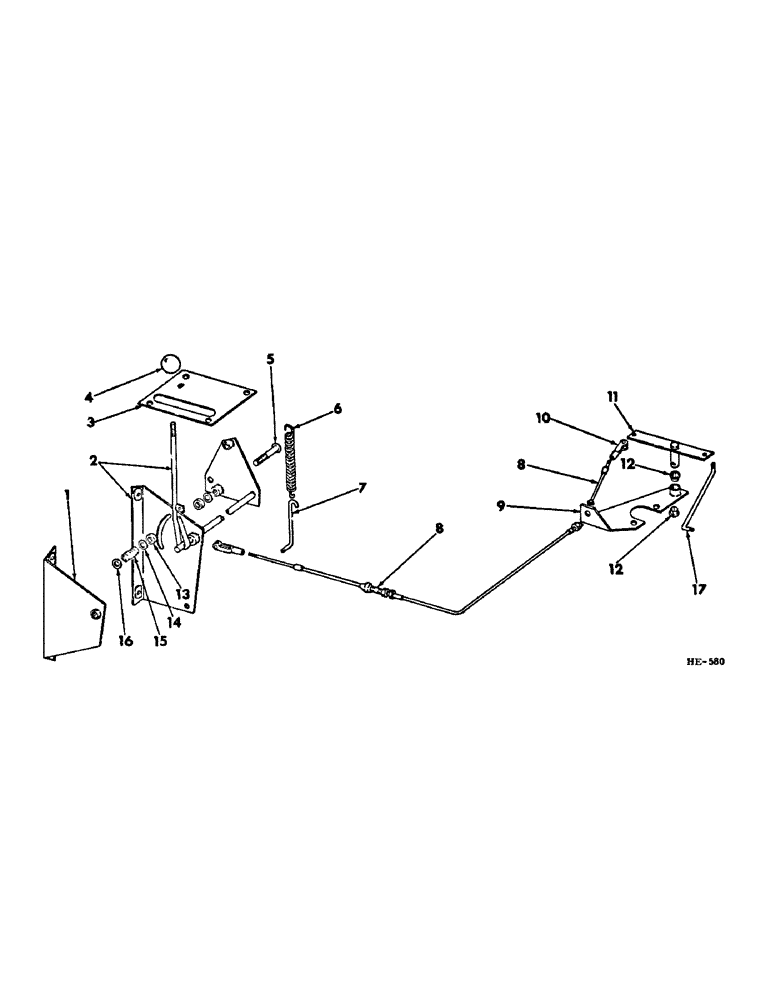

Запчасти Case IH 375 (H-03) - CONTROLS, ENGINE THROTTLE CONTROL Controls

1

595525R12

SUPPORT, throttle control outer

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

595527R93

CONTROL, throttle

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

597868R1

COVER, throttle control panel

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

595533R1

KNOB, throttle control

1шт.

5

18633R1

BOLT, 1/4 x 2-1/2" type 1 crg friction washer & spg mounting Short NK, 1/4"-20 x 2 1/2", G2

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

6

595535R1

SPRING

throttle control return

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

7

595534R1

ROD, throttle control return spg

1шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

8

598135R1

CABLE

throttle control

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

9

598136R2

SUPPORT, throttle control rear pivot

1шт.

10

NLS

NO LONGER SERVICED

CLEVIS, rod end

2шт.

138082

CLEVIS PIN,3/16" x .580"

PIN, 3/16 x 19/32" rod-end

2шт.

NLS

NO LONGER SERVICED

C-PIN, 1/16 x 1/2"

2шт.

11

598139R1

ARM, throttle control rear pivot

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

12

292883C1

BUSHING, pivot arm

2шт.

13

704681R2

FRICTION WASHER

throttle control friction

2шт.

14

21549R1

WASHER

9/32 x 3/4 x 18 ga

2шт.

15

704686R1

SPRING

throttle control

1шт.

16

20600R1

WASHER

9/32 x 3/4 x 11 ga

1шт.

17

598142R1

ROD, throttle control rear

1шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

2шт.
