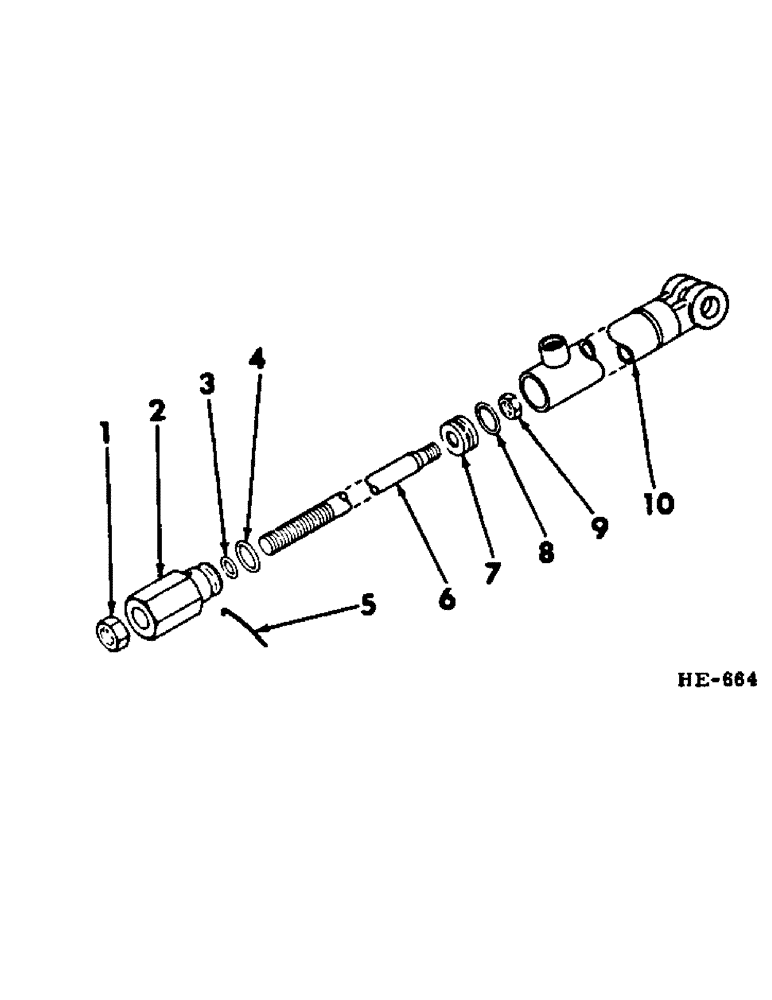

Запчасти Case IH 375 (F-73[A]) - HYDRAULIC SYSTEM, VARIATOR HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

9413941

NUT,1/2"-13, GA

1/2" lk (opt w/1 - 384100R1, NUT)

1шт.

1

384100R1

NUT

1/2" lk (opt w/1 - 9413941, NUT)

1шт.

2

381825R1

HEAD

rod end

1шт.

3

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1/2 x 11/16 x 3/32" piston rod

1шт.

4

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32" rod end head

1шт.

5

381830R1

ELECTRICAL WIRE

RETAINER, hyd cyl end

1шт.

6

381826R1

ROD

hyd cyl piston

1шт.

7

381828R1

PISTON

HEAD, piston

1шт.

8

384598R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

3/4 x 1 x 1/8" piston

1шт.

9

381829R1

NUT

5/16" lk (opt w/1 - 274881, NUT)

1шт.

9

230-4115

LOCK NUT,5/16"-18, GA

5/16" lk (opt w/1 - 381829R1, NUT)

1шт.

10

387865R91

TUBE,7.762" Length

hyd cyl

1шт.
