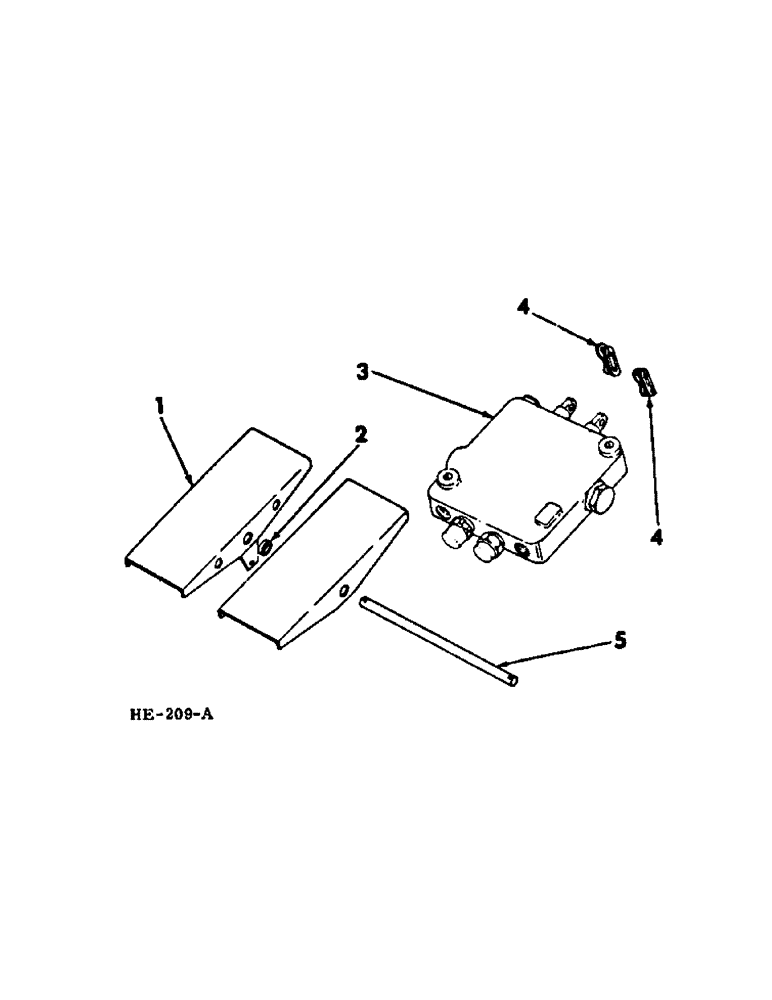

Запчасти Case IH 375 (F-72) - HYDRAULIC SYSTEM, HYDRAULIC CONTROL VALVE AND MOUNTING (07) - HYDRAULIC SYSTEM

1

597926R1

PEDAL, hyd control valve

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 7/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

611463R1

SPACER, pedal bolt & pin

3шт.

3

VALVE, double spool hyd control (for component parts of the applicable VALVE, refer to "HYDRAULIC CONTROL VALVE" in section "F" of this parts catalog)

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

598083R1

CHAIN (AG)

LINK, control, Serial Range: pedal-valve

2шт.

5

591976R1

PIN, valve control pivot

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.
