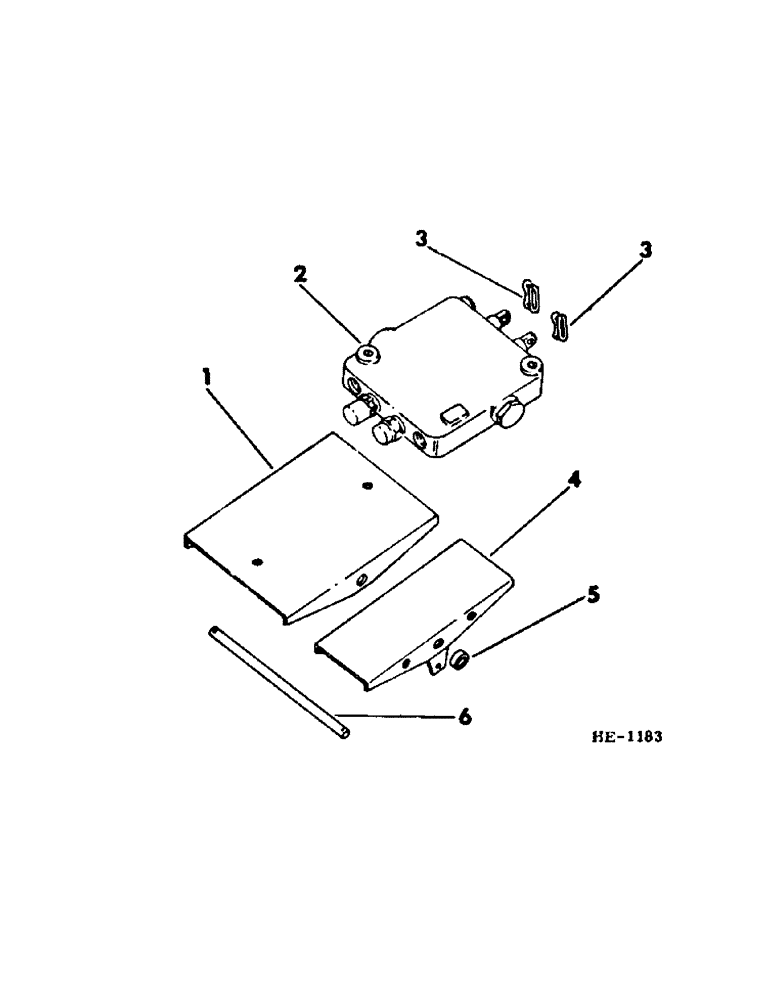

Запчасти Case IH 375 (F-72[A]) - HYDRAULIC SYSTEM, HYDRAULIC CONTROL VALVE AND MOUNTING (07) - HYDRAULIC SYSTEM

1

823016C1

PEDAL, control valve (for use on machines equipped w/dual auger low profile OR single auger platform)

1шт.

2

VALVE, hyd control (for component parts of the applicable valve, refer to "HYDRAULIC VALVE CONTROL" in section "F" of this parts catalog)

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

598083R1

CHAIN (AG)

LINK, control pedal to valve (1 used w/823016C1, PEDAL - 2 used w/597926R1, PEDAL)

1шт.

4

597926R1

PEDAL, control valve (for use on machines equipped w/dual auger platform w/pick-up reel - NOT low profile platform)

2шт.

5

611463R1

SPACER, pivot pin

1шт.

6

591976R1

PIN, pedal pivot

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.
