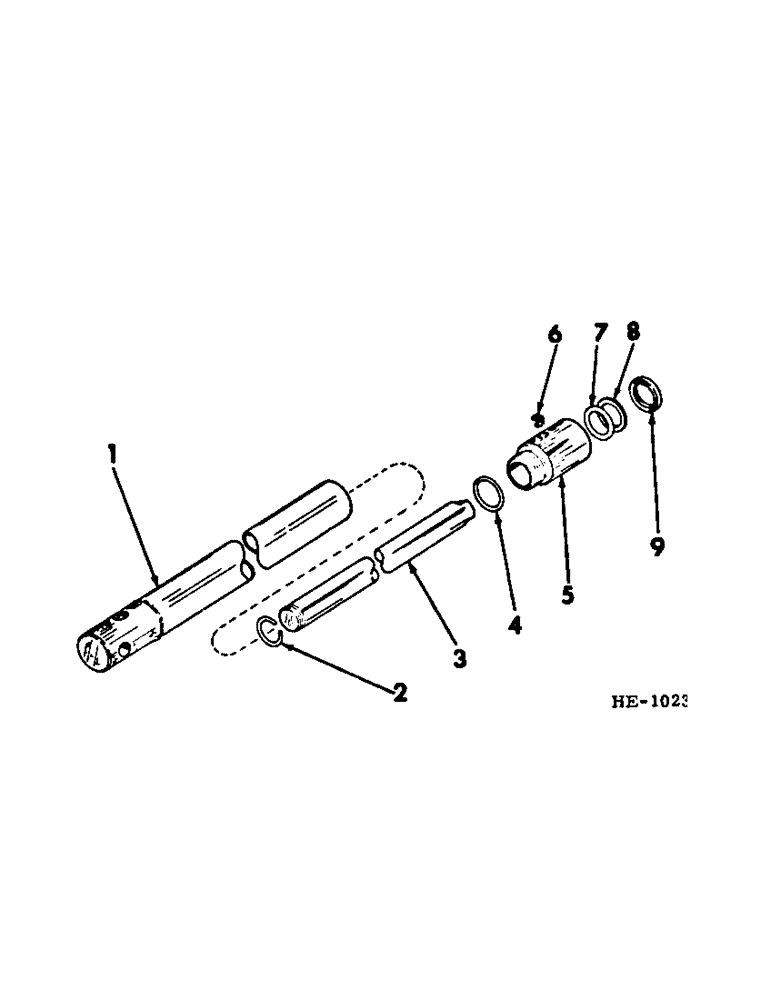

Запчасти Case IH 375 (F-71) - HYDRAULIC SYSTEM, HYDRAULIC REEL LIFT SLAVE CYLINDER (07) - HYDRAULIC SYSTEM

823369C91

CYLINDER, reel lift slave hyd (opt to use 1 - 599990R91, OR 1 - 549955R91, CYLINDER) (composed of all parts listed below)

1шт.

1

599989R1

BODY, hyd cyl

1шт.

2

RING, piston rod snap (NSS) (for service order 1 - 595823R91, KIT)

1шт.

3

595821R1

ROD, slave hyd piston

1шт.

4

O-RING, piston rod (NSS) (for service order 1 - 595823R91, KIT)

1шт.

5

595820R3

NUT, hyd cyl

1шт.

6

445684

PLUG

1/8" hyd cyl pipe

1шт.

7

O-RING, back-up nut (NSS) (for service order 1 - 595823R91, KIT)

1шт.

8

WASHER, nut back-up (NSS) (for service order 1 - 595823R91, KIT)

1шт.

9

SEAL, hyd cyl nut oil (NSS) (for service order 1 - 595823R91, KIT)

1шт.

595823R91

KIT, hyd cyl seal service, composed of, (NSS) (1) O-RING, (NSS) (2) O-RING, (NSS) (1) RING, (NSS) (1) SEAL, (NSS) (1) WASHER

1шт.

599990R91

CYLINDER, reel lift slave (opt to use 1 - 823369C91 OR 1 - 549955R91, CYLINDER) (composed of all parts listed below)

1шт.
