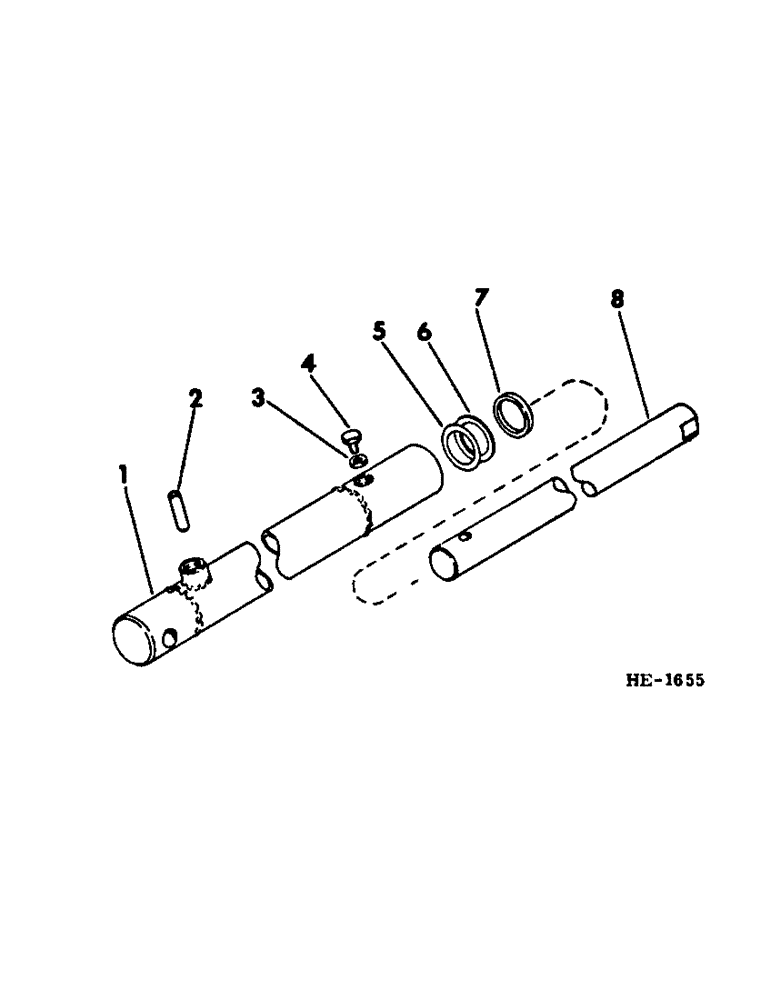

Запчасти Case IH 375 (F-70[A]) - HYDRAULIC SYSTEM, HYDRAULIC REEL LIFT SLAVE CYLINDER (07) - HYDRAULIC SYSTEM

1

523765R1

BODY, hyd cyl

1шт.

2

532774R1

PIN

stop

1шт.

3

533145R1

RUBBER WASHER,5.59mm ID x 10.72mm OD x 1.37mm Thk

rubber bonded

1шт.

4

24535R1

SCREW

No. 10 x 1/4" hex-hd

1шт.

5

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8" piston rod

1шт.

6

532854R1

SEAL,25.17mm ID x 31.52mm OD x 1.32mm Thk

back-up piston rod

1шт.

7

532773R1

WIPER SEAL

WIPER, piston rod

1шт.

8

539965R1

ROD, hyd cyl piston

1шт.

532531R91

PACKAGE, REPAIR

KIT, hyd cyl service, composed of, (1) O-RING 380794R1, (1) WASHER 532854R1, (1) WIPER 532773R1, (1) WASHER 533145R1

1шт.
