Запчасти Case IH 375 (F-68) - HYDRAULIC SYSTEM, HYDRAULIC PUMP MOUNTING AND DRIVE (07) - HYDRAULIC SYSTEM

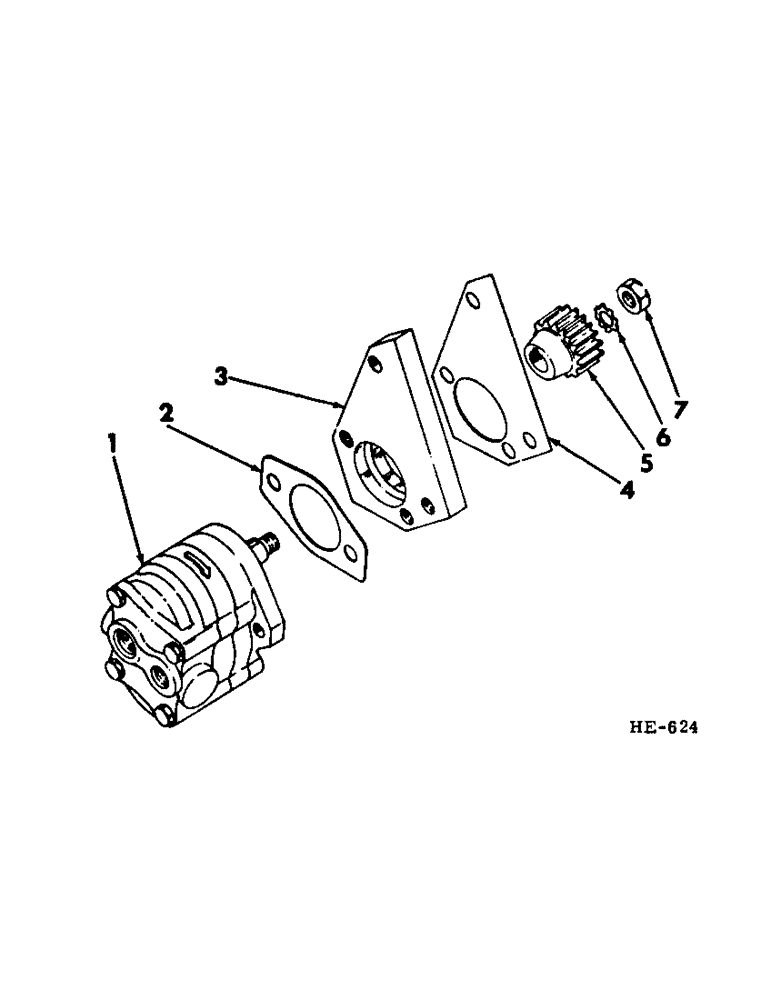

Схема запчастей Case IH 375 - (F-68) - HYDRAULIC SYSTEM, HYDRAULIC PUMP MOUNTING AND DRIVE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

596411R91

PUMP

hyd (for component parts of this assembly refer to "HYDRAULIC PUMP" in section "F" of this parts catalog)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

598005R1

GASKET

hyd pump

1шт.

3

597867R1

BRACKET, hyd mounting

1шт.

189298

BOLT,Hex, 5/16" - 18 x 4", Gr 5

5/16 x 4"

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4"

1шт.

4

597866R1

GASKET, hyd pump mounting

1шт.

5

597865R1

GEAR WHEEL

GEAR, hyd pump drive

1шт.

6

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

7

17055R1

NUT, 3/8" - NF nylon-insert-lk

1шт.

Выбрано товаров: 11
