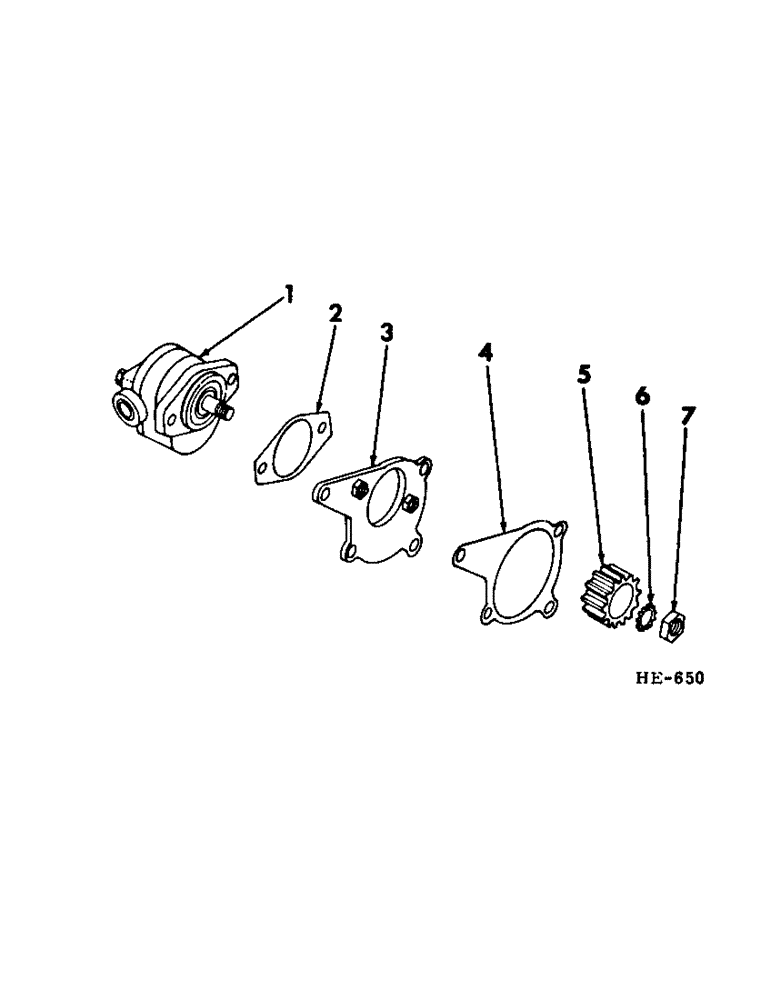

Запчасти Case IH 375 (F-68[A]) - HYDRAULIC SYSTEM, HYDRAULIC PUMP MOUNTING AND DRIVE (07) - HYDRAULIC SYSTEM

1

591980R91

PUMP

hyd (for component parts of this assembly refer to "HYDRAULIC PUMP" in section "F" of this parts catalog)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

599604R1

LK-WASHER, sealing

4шт.

2

598005R1

GASKET

hyd pump

1шт.

3

598148R2

BRACKET, hyd pump mounting

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

4шт.

4

598149R1

GASKET

hyd pump mounting bracket

1шт.

5

598147R1

GEAR, 16T hyd pump drive

1шт.

6

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

7

17055R1

NUT, 3/8" - NF nylon insert lk

1шт.
