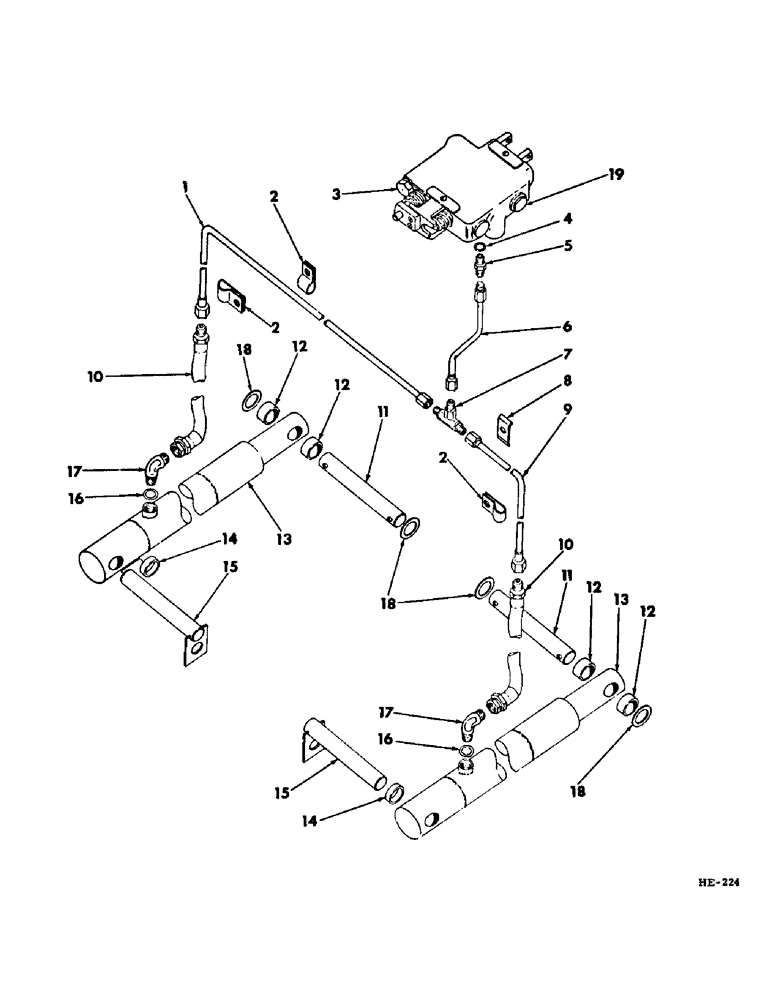

Запчасти Case IH 375 (F-60) - HYDRAULIC SYSTEM, VALVE TO LIFT CYLINDER HYDRAULIC LINES (07) - HYDRAULIC SYSTEM

1

595430R11

TUBE, lift hyd cyl LH (275 Windrower) 0.375" OD, 23.5, 19.5" Length

1шт.

1

595431R11

TUBE, lift hyd cyl LH (375 Windrower) 0.375" OD, 44.3, 19.5" Length

1шт.

2

595432R1

CLAMP

platform lift tube lower

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

825326C92

VALVE

1шт.

VALVE, hyd control (for use on 275 Windrower built w/machine serial No. 2867 & since; for use on 375 Windrower built w/machine serial No. 982 & since - for service on 275 machines built prior to machine serial No. 2867 OR 375 machines built prior to 982 and for component parts refer to "HYDRAULIC CONTROL VALVE" in section "F" of this parts catalog)

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd control valve connector

1шт.

5

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, control valve to platform tee tube (for use on 275 Windrower)

1шт.

5

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

45 degree control valve to platform tee tube (for use on 375 Windrower prior to machine serial No. 598)

1шт.

5

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, control valve to platform tee tube (for use on 375 Windrower built w/machine serial No. 598 & since)

1шт.

6

595428R11

TUBE, control valve connector to platform tee (for use on 275 Windrower built prior to machine serial No. 1501) 0.375" OD, 7.7, 4.5" Length

1шт.

6

597915R1

TUBE, control valve connector to platform tee (for use on 275 Windrower built w/machine serial No. 1501 to machine serial No. 2275) 0.375" OD, 7.7, 5.3" Length

1шт.

6

823686C11

TUBE

control valve connector to platform tee (for use on 275 Windrower built w/machine serial no. 2275 & since)

1шт.

6

595429R11

TUBE, control valve connector to platform tee (for use on 375 Windrower built prior to machine serial no. 201)

1шт.

6

597916R1

TUBE, control valve connector to platform tee (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 598) 0.375" OD, 9.5, 5.2" Length

1шт.

6

823688C11

TUBE, control valve connector to platform tee (for use on 375 Windrower built w/machine serial No. 598 & since)

1шт.

7

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

platform lift tube connecting 3-way

1шт.

8

595432R1

CLAMP

platform lift tube

2шт.

180018

CONNECTING LINK

1/4 x 5/8"

2шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

595431R11

TUBE, platform lift hyd cyl RH (for use on 275 Windrower) 0.375" OD, 44.3, 19.5" Length

1шт.

9

595430R11

TUBE, platform lift hyd cyl RH (for use on 375 Windrower) 0.375" OD, 23.5, 19.5" Length

1шт.

10

611937R91

HOSE ASSY.

HOSE, platform lift hyd cyl

2шт.

11

607736R1

PIN, hyd lift cyl retaining front

2шт.

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga

4шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

12

557056R1

SPACER,1" Pipe x 1"

retaining pin front

4шт.

13

595421R92

CYLINDER, platform lift hyd (for service on 275 Windrower & 375 Windrower built prior to 1970 season, order 1 - 823370C91, CYLINDER) (for component parts of this assembly, refer to "PLATFORM LIFT HYDRAULIC CYLINDER" in section "F" of this parts catalog)

2шт.

13

823370C91

CYLINDER, platform lift hyd (for use on 275 Windrower & 375 Windrower built 1970 season & since) (for component parts of this assembly, refer to "PLATFORM LIFT HYDRAULIC CYLINDER" in section "F" of this parts catalog)

2шт.

14

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

Retaining pin rear 1" Pipe x 3/4"

2шт.

15

595426R11

PIN, hyd lift cyl retaining rear

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4"

2шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga

2шт.

271501

SOCKET

NUT, 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd lift cylinder elbow

2шт.

17

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

45 degree hyd lift cyl

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd lift cylinder elbow

2шт.

18

893862R1

WASHER

15/32 x 1-1/4 x 11 ga

4шт.

19

9410358

PLUG

9/16" o-ring control valve boss

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, boss plug

1шт.
